NWUI 無法擷取最新的儀表板監控計數與 monitoring.get.error

Summary: NetWorker Web 使用者介面 (NWUI) 可用來管理 NetWorker 資料區。NWUI 儀表板標籤顯示錯誤「無法擷取儀表板的最新計數。monitoring.get.error」，且不會顯示原則、工作流程和動作的詳細資料 （成功、失敗、執行中、擱置中）。

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

NWUI 主控台顯示：

Failed to fetch latest counts for Dashboard
monitoring.get.error

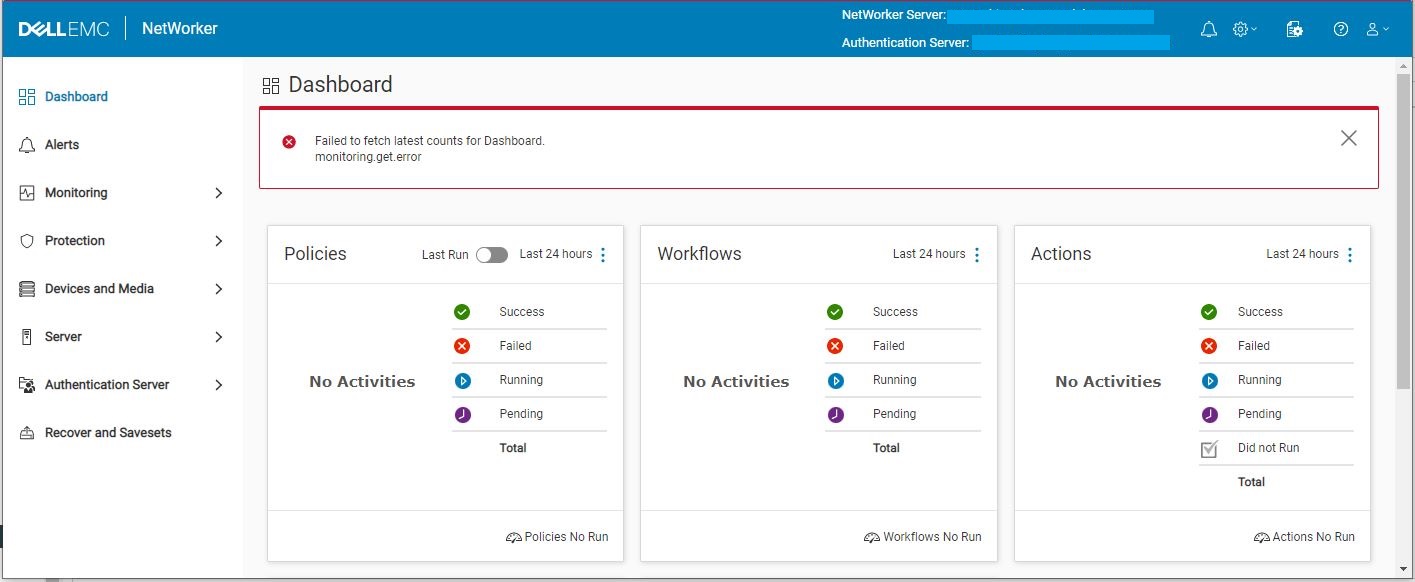

NWUI 主控台

Linux：可使用 /nsr/authc/logs/nwui.log 顯示：
視窗：可使用 C:\Program Files\EMC NetWorker\nsr\authc-server\tomcat\logs\nwui.log 顯示：

HH:MM:SS [https-jsse-nio-9090-exec-7] ERROR c.e.n.c.n.i.MonitoringApi - Error in fetching count of activities based on status from Monitoring Service. java.net.ConnectException: Connection refused: connect
HH:MM:SS [https-jsse-nio-9090-exec-3] ERROR c.e.n.c.n.i.MonitoringApi - Error in fetching count of activities based on status from Monitoring Service.

Linux：可使用 /nsr/nwui/monitoring/app/logs/monitoring-app.log 顯示：
視窗：可使用 C:\Program Files\EMC NetWorker\nwui\monitoring\app\logs\monitoring-app.log 顯示：

YYYY-MM-DD HH:MM:SS [StartupInfoLogger] [main] INFO  com.dell.emc.nw.monitoring.NwMonitoringApplication - Started NwMonitoringApplication in 22.145 seconds (JVM running for 25.477)
YYYY-MM-DD HH:MM:SS [DirectJDKLog] [https-jsse-nio-9095-exec-6] INFO  org.apache.coyote.http11.Http11Processor - Error parsing HTTP request header
 Note: further occurrences of HTTP request parsing errors will be logged at DEBUG level.
java.lang.IllegalArgumentException: Request header is too large
	at org.apache.coyote.http11.Http11InputBuffer.parseHeaders(Http11InputBuffer.java:614) ~[tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:292) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:65) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:893) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1723) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49) [tomcat-embed-core-9.0.48.jar!/:?]
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) [?:1.8.0_321]
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) [?:1.8.0_321]
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61) [tomcat-embed-core-9.0.48.jar!/:?]
	at java.lang.Thread.run(Thread.java:750) [?:1.8.0_321]

Cause

HTTP 標頭大小的預設 monitoring-app.properties 設定為 8 KB。預設的 HTTP 標頭可能不足以容納具有大型 Active Directory 使用者或群組設定的所有標頭。

Resolution

增加 NetWorker 伺服器上的 monitoring-app.properties HTTP 標頭大小設定。

  • 停止 "NetWorker Management Web UI Server" 服務：
Linux：
sudo systemctl stop nwui
Windows：
net stop nwui
  • 開啟 monitoring-app.properties 文字編輯器中的檔案：
Linux：
sudo vi /nsr/nwui/monitoring/app/conf/monitoring-app.properties
Windows：
notepad C:\Program Files\EMC NetWorker\nwui\monitoring\app\conf\monitoring-app.properties
  • 為以下項目新增一行： server.max-http-header-size 值為 32 KB 的選項
server.max-http-header-size=32KB
  • 將變更儲存至 monitoring-app.properties 檔案中所定義。
  • 啟動 "NetWorker Management Web UI Server" 服務：
Linux：
sudo systemctl start nwui
Windows：
net start nwui
