NWUI kan de meest recente tellingen voor dashboardbewaking niet ophalen met monitoring.get.error

Summary: De NetWorker Web User Interface (NWUI) wordt gebruikt om de NetWorker Datazone te beheren. Op het tabblad NWUI Dashboard wordt de foutmelding 'Kan laatste tellingen voor dashboard niet ophalen. monitoring.get.error" en geeft de details (Geslaagd, Mislukt, Uitgevoerd, In behandeling) van de beleidsregels, werkstromen en acties niet weer. ...

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

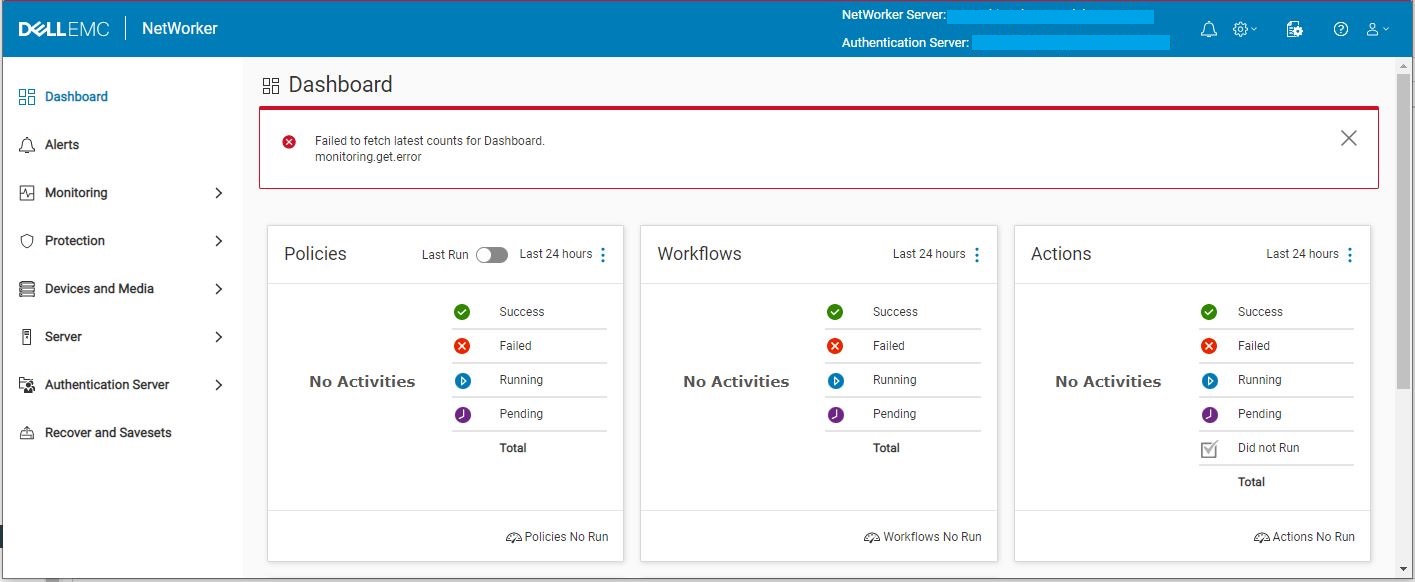

De NWUI-console toont:

Failed to fetch latest counts for Dashboard
monitoring.get.error

NWUI-console

Linux: De /nsr/authc/logs/nwui.log toont:
Windows: De C:\Program Files\EMC NetWorker\nsr\authc-server\tomcat\logs\nwui.log Toont:

HH:MM:SS [https-jsse-nio-9090-exec-7] ERROR c.e.n.c.n.i.MonitoringApi - Error in fetching count of activities based on status from Monitoring Service. java.net.ConnectException: Connection refused: connect
HH:MM:SS [https-jsse-nio-9090-exec-3] ERROR c.e.n.c.n.i.MonitoringApi - Error in fetching count of activities based on status from Monitoring Service.

Linux: De /nsr/nwui/monitoring/app/logs/monitoring-app.log toont:
Windows: De C:\Program Files\EMC NetWorker\nwui\monitoring\app\logs\monitoring-app.log Toont:

YYYY-MM-DD HH:MM:SS [StartupInfoLogger] [main] INFO  com.dell.emc.nw.monitoring.NwMonitoringApplication - Started NwMonitoringApplication in 22.145 seconds (JVM running for 25.477)
YYYY-MM-DD HH:MM:SS [DirectJDKLog] [https-jsse-nio-9095-exec-6] INFO  org.apache.coyote.http11.Http11Processor - Error parsing HTTP request header
 Note: further occurrences of HTTP request parsing errors will be logged at DEBUG level.
java.lang.IllegalArgumentException: Request header is too large
	at org.apache.coyote.http11.Http11InputBuffer.parseHeaders(Http11InputBuffer.java:614) ~[tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:292) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:65) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:893) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1723) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49) [tomcat-embed-core-9.0.48.jar!/:?]
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) [?:1.8.0_321]
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) [?:1.8.0_321]
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61) [tomcat-embed-core-9.0.48.jar!/:?]
	at java.lang.Thread.run(Thread.java:750) [?:1.8.0_321]

Cause

De standaardinstelling monitoring-app.properties voor de grootte van de HTTP-header is 8 KB. De standaard HTTP-header is mogelijk niet voldoende om alle headers met een grote Active Directory-gebruikers- of groepsinstellingen te accommoderen.

Resolution

Verhoog de instelling van de grootte van de HTTP-header van monitoring-app.properties op de NetWorker-server.

  • Stop de "NetWorker Management Web UI Server" dienst:
Linux:
sudo systemctl stop nwui
Windows:
net stop nwui
  • Open de monitoring-app.properties Bestand in een teksteditor:
Linux:
sudo vi /nsr/nwui/monitoring/app/conf/monitoring-app.properties
Windows:
notepad C:\Program Files\EMC NetWorker\nwui\monitoring\app\conf\monitoring-app.properties
  • Voeg een nieuwe regel toe voor de server.max-http-header-size optie met een waarde van 32 KB
server.max-http-header-size=32KB
  • Sla de wijzigingen op in de monitoring-app.properties bestand.
  • Start de "NetWorker Management Web UI Server" dienst:
Linux:
sudo systemctl start nwui
Windows:
net start nwui
Article Properties
Article Number: 000201656
Article Type: Solution
Last Modified: 18 Nov 2025
Version:  2
