NWUI klarte ikke å hente de siste tellingene for dashbordovervåking med monitoring.get.error

Summary: NetWorker Web User Interface (NWUI) brukes til å administrere NetWorker-datasonen. Fanen NWUI-instrumentbord viser feilen «Kan ikke hente de siste tellerne for instrumentbord. monitoring.get.error" og viser ikke detaljene (Vellykket, Mislyktes, Kjører, Venter) for policyene, arbeidsflytene og handlingene. ...

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

NWUI-konsollen viser:

Failed to fetch latest counts for Dashboard
monitoring.get.error

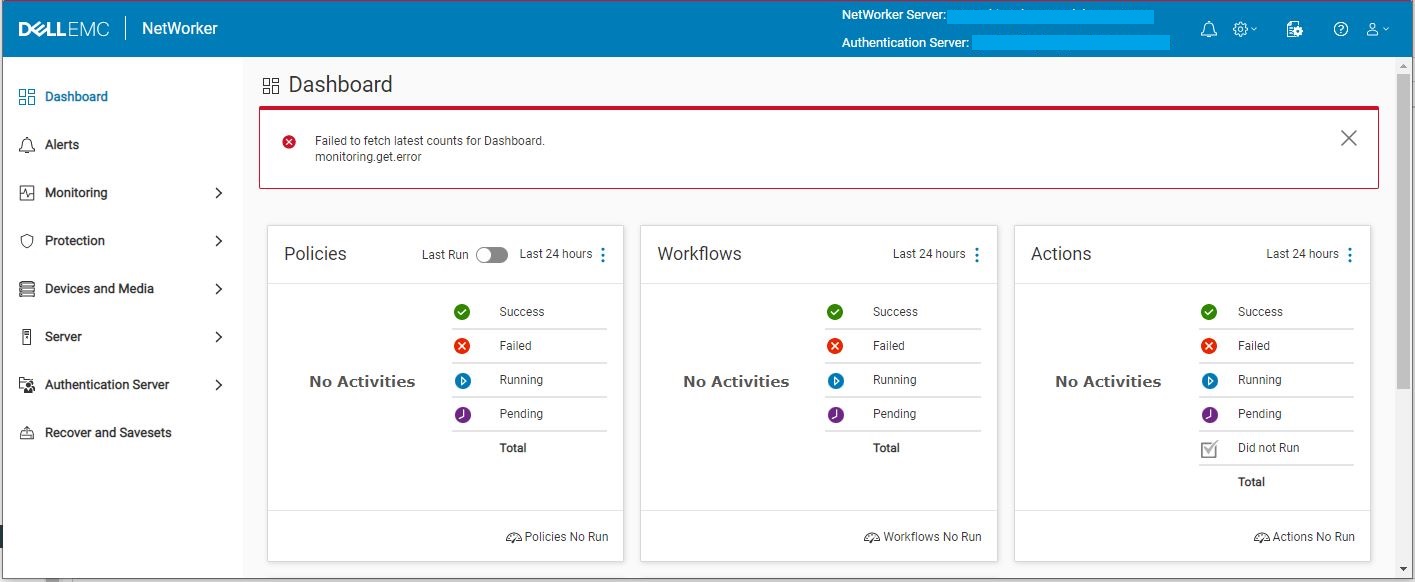

NWUI-konsoll

Linux: Informasjonen i /nsr/authc/logs/nwui.log viser:
Windows: Informasjonen i C:\Program Files\EMC NetWorker\nsr\authc-server\tomcat\logs\nwui.log Viser:

HH:MM:SS [https-jsse-nio-9090-exec-7] ERROR c.e.n.c.n.i.MonitoringApi - Error in fetching count of activities based on status from Monitoring Service. java.net.ConnectException: Connection refused: connect
HH:MM:SS [https-jsse-nio-9090-exec-3] ERROR c.e.n.c.n.i.MonitoringApi - Error in fetching count of activities based on status from Monitoring Service.

Linux: Informasjonen i /nsr/nwui/monitoring/app/logs/monitoring-app.log viser:
Windows: Informasjonen i C:\Program Files\EMC NetWorker\nwui\monitoring\app\logs\monitoring-app.log Viser:

YYYY-MM-DD HH:MM:SS [StartupInfoLogger] [main] INFO  com.dell.emc.nw.monitoring.NwMonitoringApplication - Started NwMonitoringApplication in 22.145 seconds (JVM running for 25.477)
YYYY-MM-DD HH:MM:SS [DirectJDKLog] [https-jsse-nio-9095-exec-6] INFO  org.apache.coyote.http11.Http11Processor - Error parsing HTTP request header
 Note: further occurrences of HTTP request parsing errors will be logged at DEBUG level.
java.lang.IllegalArgumentException: Request header is too large
	at org.apache.coyote.http11.Http11InputBuffer.parseHeaders(Http11InputBuffer.java:614) ~[tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:292) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:65) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:893) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1723) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49) [tomcat-embed-core-9.0.48.jar!/:?]
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) [?:1.8.0_321]
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) [?:1.8.0_321]
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61) [tomcat-embed-core-9.0.48.jar!/:?]
	at java.lang.Thread.run(Thread.java:750) [?:1.8.0_321]

Cause

Standard overvåking-app.properties-innstilling for HTTP-hodestørrelsen er 8 kB. Standard HTTP-overskrift er kanskje ikke tilstrekkelig til å få plass til alle overskrifter med en stor Active Directory-bruker- eller gruppeinnstillinger.

Resolution

Øk innstillingen overvåking-app.properties HTTP-topptekststørrelse på NetWorker-serveren.

  • Stopp "NetWorker Management Web UI Server" tjeneste:
Linux:
sudo systemctl stop nwui
Windows:
net stop nwui
  • Åpne ikonet monitoring-app.properties Fil i et tekstredigeringsprogram:
Linux:
sudo vi /nsr/nwui/monitoring/app/conf/monitoring-app.properties
Windows:
notepad C:\Program Files\EMC NetWorker\nwui\monitoring\app\conf\monitoring-app.properties
  • Legg til en ny linje for server.max-http-header-size alternativ med verdi på 32 kB
server.max-http-header-size=32KB
  • Lagre endringene i monitoring-app.properties fil.
  • Start "NetWorker Management Web UI Server" tjeneste:
Linux:
sudo systemctl start nwui
Windows:
net start nwui
Article Properties
Article Number: 000201656
Article Type: Solution
Last Modified: 18 Nov 2025
Version:  2
