NWUI kunde inte hämta de senaste antalen för instrumentpanelsövervakning med monitoring.get.error

Summary: NetWorker-webbanvändargränssnittet (NWUI) används för att hantera NetWorker-datazonen. Fliken NWUI Dashboard visar felet "Det gick inte att hämta det senaste antalet för instrumentpanelen. monitoring.get.error" och visar inte information (Lyckades, Misslyckades, Körs, väntar) för Principer, Arbetsflöden och Åtgärder. ...

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

NWUI-konsolen visar:

Failed to fetch latest counts for Dashboard
monitoring.get.error

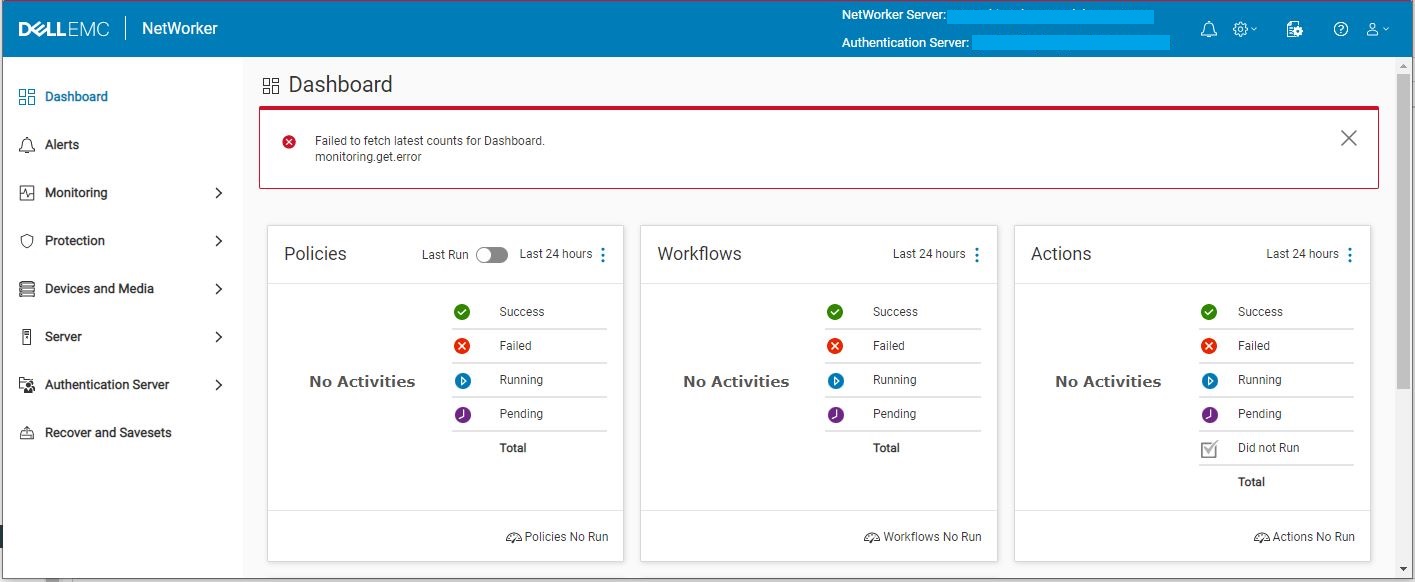

NWUI-konsol

Linux: Informationen /nsr/authc/logs/nwui.log visa:
fönster: Informationen C:\Program Files\EMC NetWorker\nsr\authc-server\tomcat\logs\nwui.log Visar:

HH:MM:SS [https-jsse-nio-9090-exec-7] ERROR c.e.n.c.n.i.MonitoringApi - Error in fetching count of activities based on status from Monitoring Service. java.net.ConnectException: Connection refused: connect
HH:MM:SS [https-jsse-nio-9090-exec-3] ERROR c.e.n.c.n.i.MonitoringApi - Error in fetching count of activities based on status from Monitoring Service.

Linux: Informationen /nsr/nwui/monitoring/app/logs/monitoring-app.log visa:
fönster: Informationen C:\Program Files\EMC NetWorker\nwui\monitoring\app\logs\monitoring-app.log Visar:

YYYY-MM-DD HH:MM:SS [StartupInfoLogger] [main] INFO  com.dell.emc.nw.monitoring.NwMonitoringApplication - Started NwMonitoringApplication in 22.145 seconds (JVM running for 25.477)
YYYY-MM-DD HH:MM:SS [DirectJDKLog] [https-jsse-nio-9095-exec-6] INFO  org.apache.coyote.http11.Http11Processor - Error parsing HTTP request header
 Note: further occurrences of HTTP request parsing errors will be logged at DEBUG level.
java.lang.IllegalArgumentException: Request header is too large
	at org.apache.coyote.http11.Http11InputBuffer.parseHeaders(Http11InputBuffer.java:614) ~[tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:292) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:65) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:893) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1723) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49) [tomcat-embed-core-9.0.48.jar!/:?]
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) [?:1.8.0_321]
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) [?:1.8.0_321]
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61) [tomcat-embed-core-9.0.48.jar!/:?]
	at java.lang.Thread.run(Thread.java:750) [?:1.8.0_321]

Cause

Standardinställningen monitoring-app.properties för HTTP-huvudets storlek är 8 kB. HTTP-standardhuvudet kanske inte räcker för att hantera alla rubriker med en stor Active Directory-användare eller gruppinställningar.

Resolution

Öka inställningen monitoring-app.properties HTTP-huvudstorlek på NetWorker-servern.

  • Stoppa "NetWorker Management Web UI Server" tjänst:
Linux:
sudo systemctl stop nwui
Windows:
net stop nwui
  • Öppna monitoring-app.properties Fil i en textredigerare:
Linux:
sudo vi /nsr/nwui/monitoring/app/conf/monitoring-app.properties
Windows:
notepad C:\Program Files\EMC NetWorker\nwui\monitoring\app\conf\monitoring-app.properties
  • Lägg till en ny rad för server.max-http-header-size alternativ med värdet 32 kB
server.max-http-header-size=32KB
  • Spara ändringarna i monitoring-app.properties fil.
  • Starta "NetWorker Management Web UI Server" tjänst:
Linux:
sudo systemctl start nwui
Windows:
net start nwui
Article Properties
Article Number: 000201656
Article Type: Solution
Last Modified: 18 Nov 2025
Version:  2
