NWUI no pudo obtener los conteos más recientes para el monitoreo del panel con monitoring.get.error

Summary: La interfaz del usuario web de NetWorker (NWUI) se utiliza para administrar la zona de datos de NetWorker. La pestaña NWUI Dashboard muestra el error "Failed to fetch latest counts for Dashboard. monitoring.get.error" y no muestra los detalles (Éxito, Error, En ejecución, Pendiente) de las políticas, los flujos de trabajo y las acciones. ...

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

La consola de NWUI muestra lo siguiente:

Failed to fetch latest counts for Dashboard
monitoring.get.error

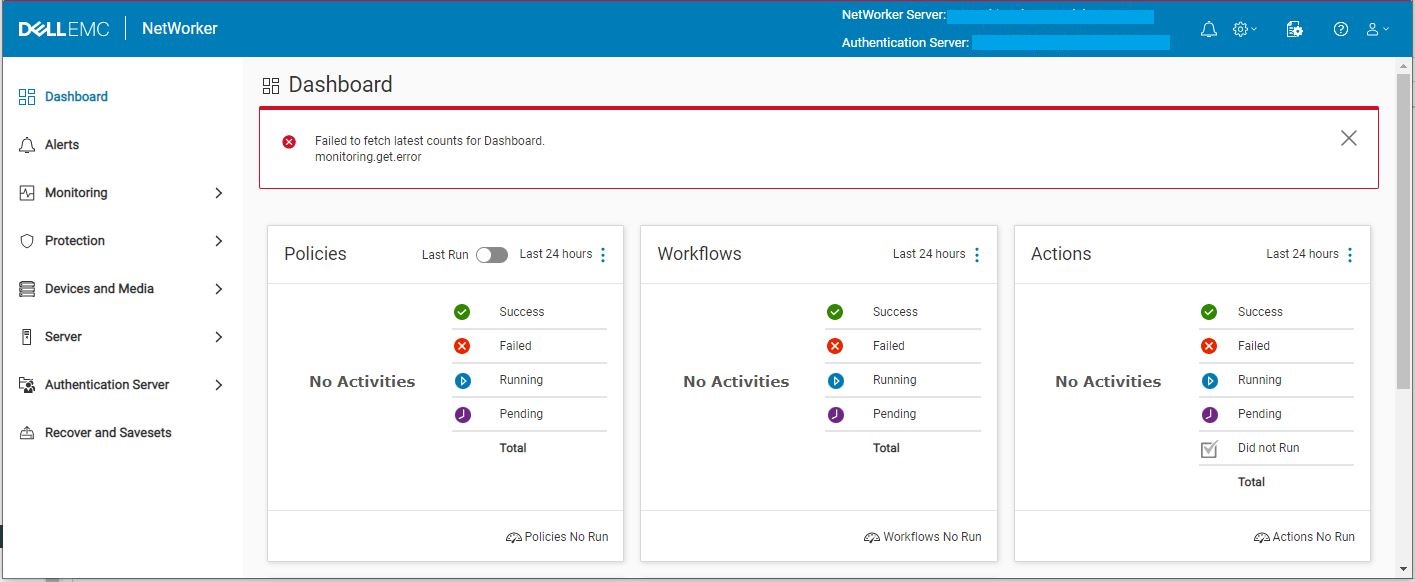

Consola de NWUI

Linux: La variable /nsr/authc/logs/nwui.log muestra:
Windows: La variable C:\Program Files\EMC NetWorker\nsr\authc-server\tomcat\logs\nwui.log Muestra:

HH:MM:SS [https-jsse-nio-9090-exec-7] ERROR c.e.n.c.n.i.MonitoringApi - Error in fetching count of activities based on status from Monitoring Service. java.net.ConnectException: Connection refused: connect
HH:MM:SS [https-jsse-nio-9090-exec-3] ERROR c.e.n.c.n.i.MonitoringApi - Error in fetching count of activities based on status from Monitoring Service.

Linux: La variable /nsr/nwui/monitoring/app/logs/monitoring-app.log muestra:
Windows: La variable C:\Program Files\EMC NetWorker\nwui\monitoring\app\logs\monitoring-app.log Muestra:

YYYY-MM-DD HH:MM:SS [StartupInfoLogger] [main] INFO  com.dell.emc.nw.monitoring.NwMonitoringApplication - Started NwMonitoringApplication in 22.145 seconds (JVM running for 25.477)
YYYY-MM-DD HH:MM:SS [DirectJDKLog] [https-jsse-nio-9095-exec-6] INFO  org.apache.coyote.http11.Http11Processor - Error parsing HTTP request header
 Note: further occurrences of HTTP request parsing errors will be logged at DEBUG level.
java.lang.IllegalArgumentException: Request header is too large
	at org.apache.coyote.http11.Http11InputBuffer.parseHeaders(Http11InputBuffer.java:614) ~[tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:292) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:65) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:893) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1723) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49) [tomcat-embed-core-9.0.48.jar!/:?]
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) [?:1.8.0_321]
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) [?:1.8.0_321]
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61) [tomcat-embed-core-9.0.48.jar!/:?]
	at java.lang.Thread.run(Thread.java:750) [?:1.8.0_321]

Cause

La configuración predeterminada de monitoring-app.properties para el tamaño del encabezado HTTP es 8 KB. Es posible que el encabezado HTTP predeterminado no sea suficiente para dar cabida a todos los encabezados con una configuración grande de usuario o grupo de Active Directory.

Resolution

Aumente la configuración del tamaño del encabezado HTTP monitoring-app.properties en NetWorker Server.

  • Detenga el "NetWorker Management Web UI Server" servicio:
Linux:
sudo systemctl stop nwui
Windows:
net stop nwui
  • Abra el archivo monitoring-app.properties en un editor de texto:
Linux:
sudo vi /nsr/nwui/monitoring/app/conf/monitoring-app.properties
Windows:
notepad C:\Program Files\EMC NetWorker\nwui\monitoring\app\conf\monitoring-app.properties
  • Agregue una nueva línea para el server.max-http-header-size opción con valor de 32 KB
server.max-http-header-size=32KB
  • Guarde los cambios en el archivo monitoring-app.properties de NetWorker.
  • Inicie el "NetWorker Management Web UI Server" servicio:
Linux:
sudo systemctl start nwui
Windows:
net start nwui
