O NWUI não conseguiu buscar as contagens mais recentes de monitoramento do painel de indicadores com monitoring.get.error

Summary: A interface do usuário da Web do NetWorker (NWUI) é usada para gerenciar a zona de dados do NetWorker. A guia Dashboard do NWUI mostra o erro "Failed to fetch latest counts for Dashboard. monitoring.get.error" e não exibe os detalhes (Sucesso, Falha, Em execução, Pendente) das políticas, Fluxos de trabalho e Ações. ...

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

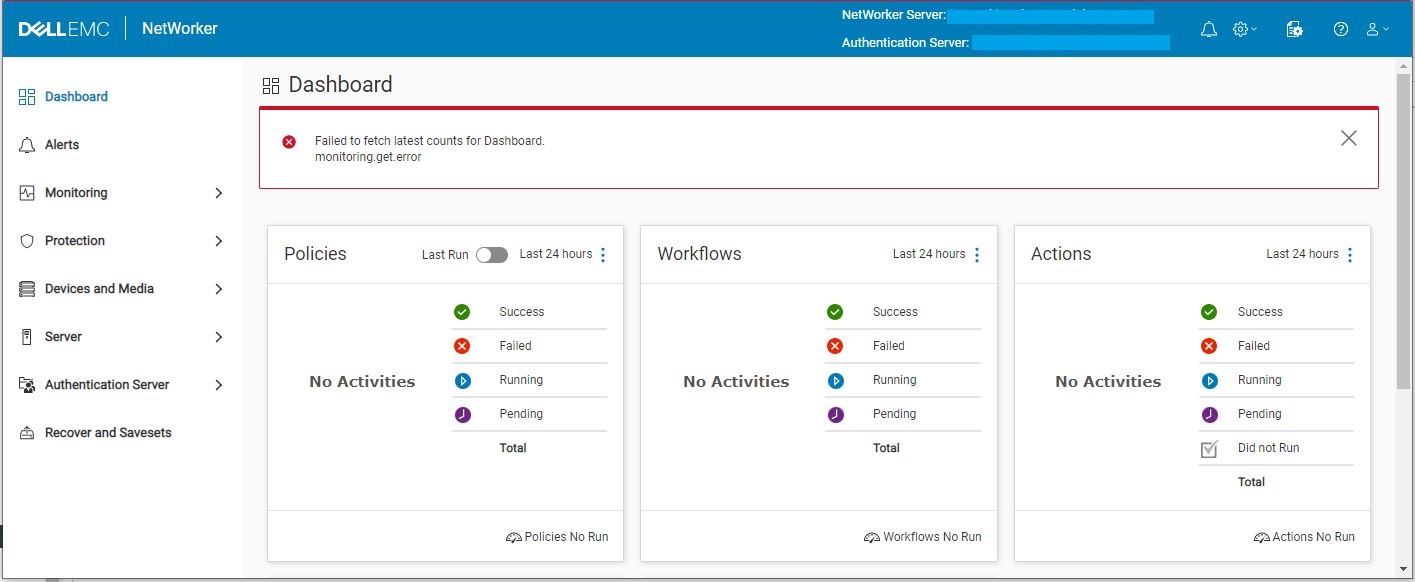

O console da NWUI mostra:

Failed to fetch latest counts for Dashboard
monitoring.get.error

NWUI Console

Linux: A coluna /nsr/authc/logs/nwui.log shows:
Windows: A coluna C:\Program Files\EMC NetWorker\nsr\authc-server\tomcat\logs\nwui.log programas:

HH:MM:SS [https-jsse-nio-9090-exec-7] ERROR c.e.n.c.n.i.MonitoringApi - Error in fetching count of activities based on status from Monitoring Service. java.net.ConnectException: Connection refused: connect
HH:MM:SS [https-jsse-nio-9090-exec-3] ERROR c.e.n.c.n.i.MonitoringApi - Error in fetching count of activities based on status from Monitoring Service.

Linux: A coluna /nsr/nwui/monitoring/app/logs/monitoring-app.log shows:
Windows: A coluna C:\Program Files\EMC NetWorker\nwui\monitoring\app\logs\monitoring-app.log programas:

YYYY-MM-DD HH:MM:SS [StartupInfoLogger] [main] INFO  com.dell.emc.nw.monitoring.NwMonitoringApplication - Started NwMonitoringApplication in 22.145 seconds (JVM running for 25.477)
YYYY-MM-DD HH:MM:SS [DirectJDKLog] [https-jsse-nio-9095-exec-6] INFO  org.apache.coyote.http11.Http11Processor - Error parsing HTTP request header
 Note: further occurrences of HTTP request parsing errors will be logged at DEBUG level.
java.lang.IllegalArgumentException: Request header is too large
	at org.apache.coyote.http11.Http11InputBuffer.parseHeaders(Http11InputBuffer.java:614) ~[tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:292) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:65) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:893) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1723) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49) [tomcat-embed-core-9.0.48.jar!/:?]
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) [?:1.8.0_321]
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) [?:1.8.0_321]
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61) [tomcat-embed-core-9.0.48.jar!/:?]
	at java.lang.Thread.run(Thread.java:750) [?:1.8.0_321]

Cause

A configuração padrão monitoring-app.properties para o tamanho do cabeçalho HTTP é 8 KB. O cabeçalho HTTP padrão pode não ser suficiente para acomodar todos os cabeçalhos com configurações grandes de usuário ou grupo do Active Directory.

Resolution

Aumente a configuração do tamanho do cabeçalho HTTP monitoring-app.properties no servidor NetWorker.

  • Pare o "NetWorker Management Web UI Server" serviço:
Linux:
sudo systemctl stop nwui
Windows:
net stop nwui
  • Abra o monitoring-app.properties em um editor de texto:
Linux:
sudo vi /nsr/nwui/monitoring/app/conf/monitoring-app.properties
Windows:
notepad C:\Program Files\EMC NetWorker\nwui\monitoring\app\conf\monitoring-app.properties
  • Adicionar uma nova linha para o server.max-http-header-size com valor de 32 KB
server.max-http-header-size=32KB
  • Salve as alterações no monitoring-app.properties .
  • Inicie o "NetWorker Management Web UI Server" serviço:
Linux:
sudo systemctl start nwui
Windows:
net start nwui
