PowerEdge: How to Configure Emulex LPe31002 HBA Link Speed in UEFI or HII

Summary: This article provides information about how to configure Emulex LPe31002 HBA link speed in UEFI or Human Interface Infrastructure (HII).

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Instructions

  1. Start the Emulex Configuration utility using HII.

Reboot the PowerEdge server and press F2 key on the System Setup screen to enter into UEFI HII, select Device Settings.

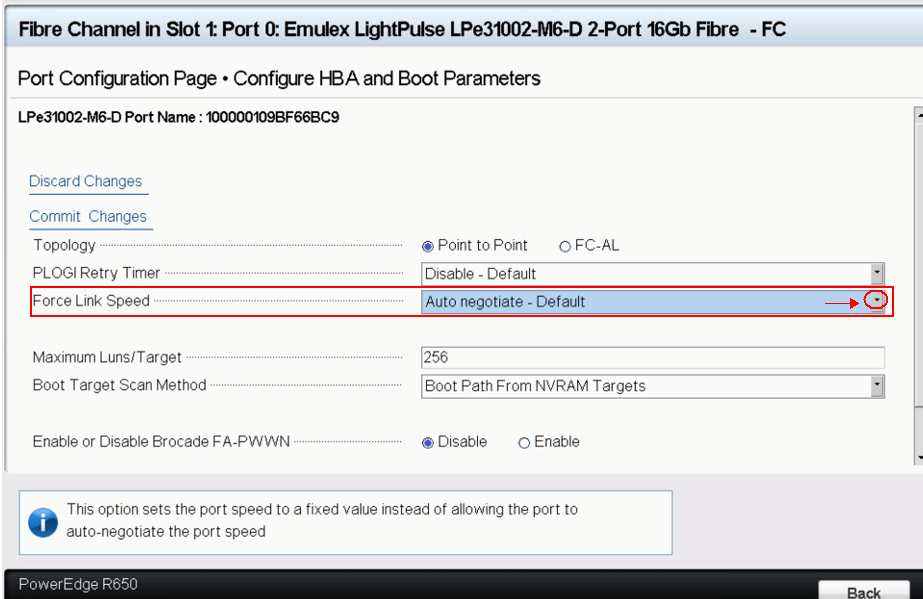

force link speed, emulex settings

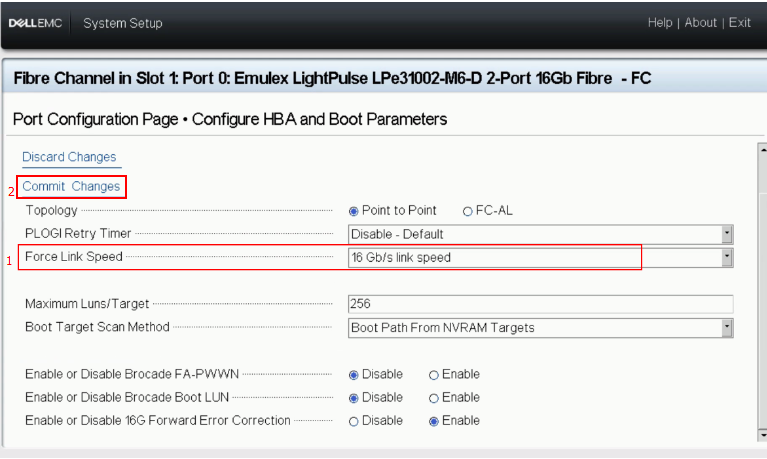

force link speed, set emulex speed

Addition Information:

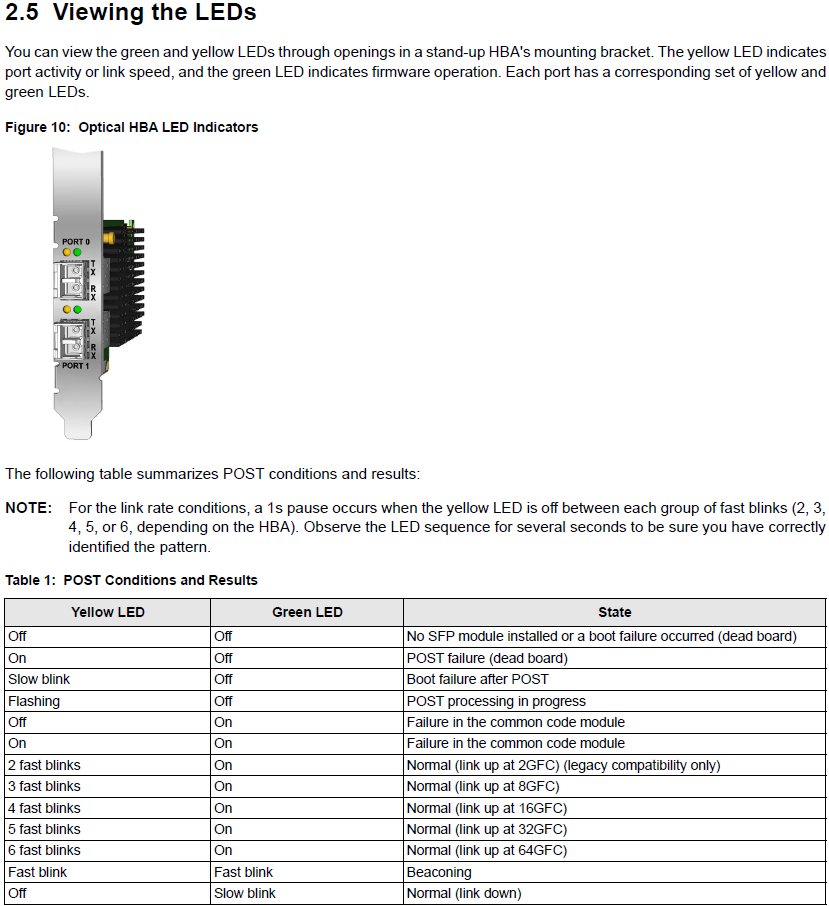

LED information

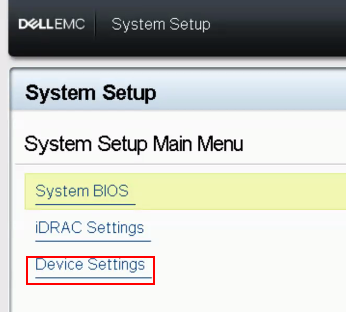

device settings in system setup

  1. Select the menu item that allows you to Configure devices.

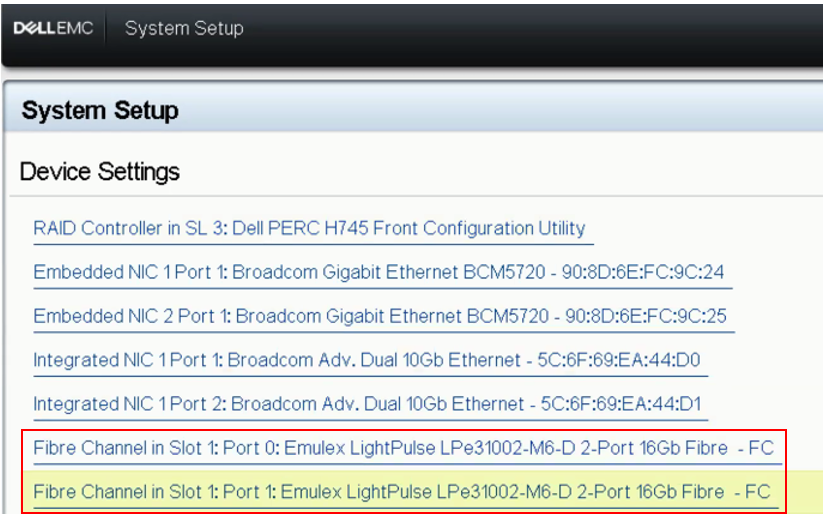

device settings, system setup

  1. Select Configuring HBA and Boot Parameters.

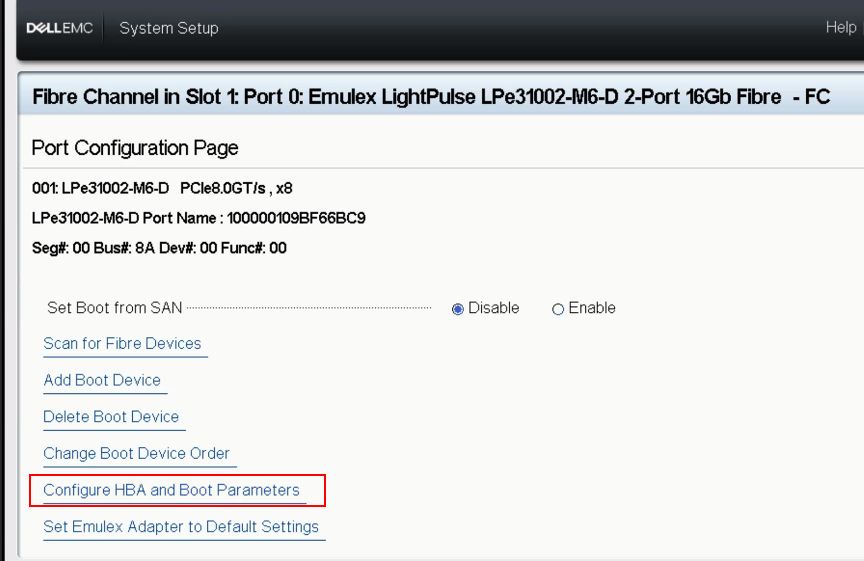

configure HBA and boot parameters, system setup

  1. Go to Force Link Speed and select a link speed, Auto negotiate-Default, or 16 Gb/s link speed, click Submit to commit changes.

select link speed from dropdown
