VxRail: LCM da VxRail 7.0.520 o 7.0.521 presenta l'errore: vSAN Disk Object Repair Timeout Retrieval

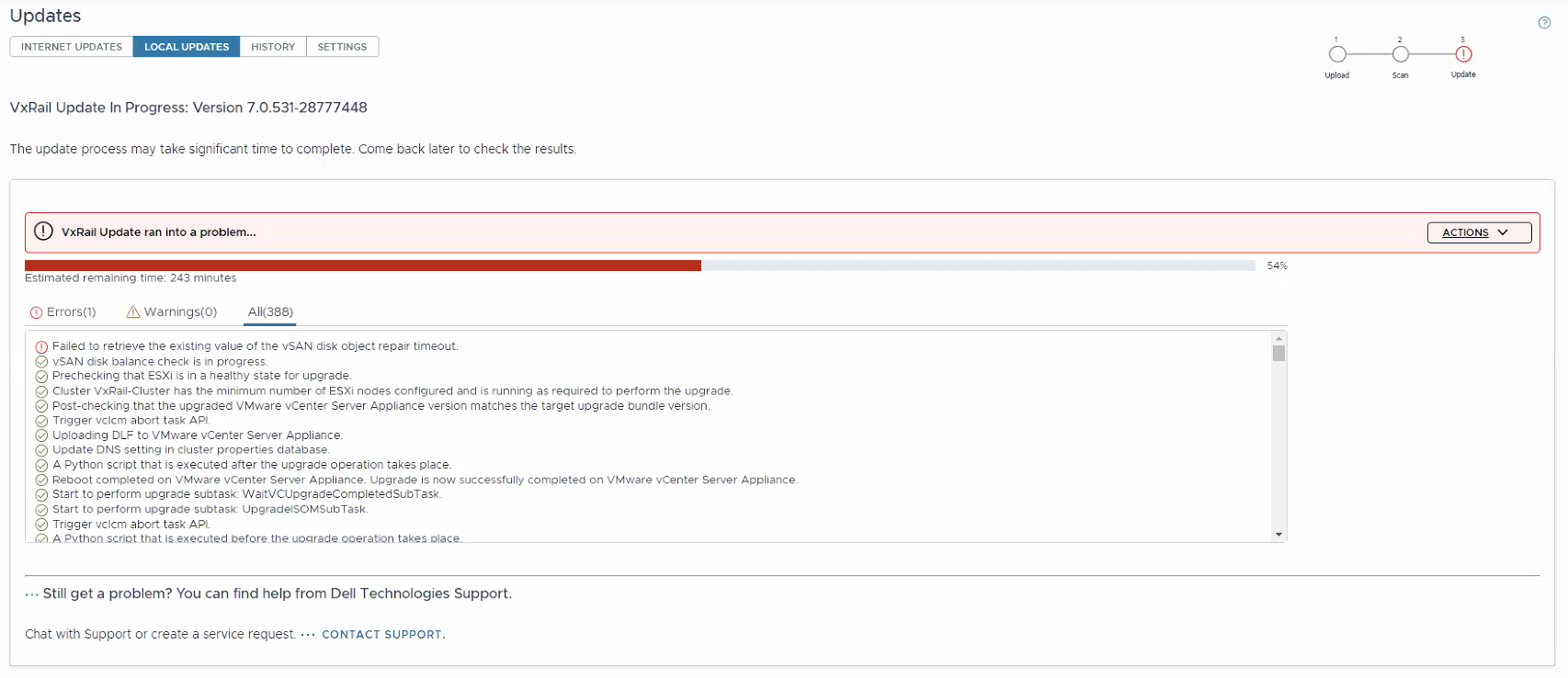

La scheda Aggiornamenti del plug-in vCenter dell'interfaccia utente di VxRail LCM mostra:

Error message:
VxRail Update ran into a problem...
Failed to retrieve the existing value of the vSAN disk object repair timeout.

Su VxRail Manager, il /var/log/mystic/lcm-web.log Mostra:

2024-09-27T15:19:21.429Z <7ff91b9f32f61676bfb7758d9af41713> lcm [ERROR] <94> ComponentUpgradeService.java performComponentUpgrade() (323): Component VMWARE_ESXI upgrade failed due to Failed to retrieve the existing value of the vSAN disk object repair timeout..
2024-09-27T15:19:21.429Z <7ff91b9f32f61676bfb7758d9af41713> lcm [INFO] <94> LCMServiceImpl.java handleUpgradeException() (1812): handling upgrade exception.
2024-09-27T15:19:21.429Z <7ff91b9f32f61676bfb7758d9af41713> lcm [INFO] <94> LCMServiceImpl.java handleUpgradeException() (1817): Error from vc or node upgrade, sync the composite file
...
2024-09-27T15:19:21.467Z <7ff91b9f32f61676bfb7758d9af41713> lcm [ERROR] <94> LCMServiceImpl.java handleUpgradeException() (1855): failed to upgrade: VXRAIL_COMPOSITE-7.0.531-28777448_for_7.0.x.zip,
 with exception:
com.vce.lcm.exception.LCMInternalException: Failed to retrieve the existing value of the vSAN disk object repair timeout.
        at com.vce.lcm.core.upgrade.ComponentUpgradeService.performComponentUpgrade(ComponentUpgradeService.java:336)
        at com.vce.lcm.api.LCMServiceImpl.performBatchUpgrade(LCMServiceImpl.java:2152)
...
024-09-27T15:19:21.514Z <7ff91b9f32f61676bfb7758d9af41713> lcm [INFO] <94> VirtualApplianceUpgradeParameterStatusHandler.java notifyError() (102): Notify errors for upgrade bundle UpgradeBundleProfile{name='VXRAIL_COMPOSITE-7.0.531-28777448_for_7.0.x.zip', description='null', sizeInKBytes='15664544', bundleFileName='VXRAIL_COMPOSITE-7.0.531-28777448_for_7.0.x.zip', version='7.0.531', build='28777448', targetHardwareInfo='', targetModelInfo='com.vce.commons.vcm.state.CompositeManifestFile$TargetModelInfo@3901ec9', replaceTargetInfo='com.vce.commons.vcm.state.CompositeManifestFile$ReplaceTargetInfo@16a5c26c', targetNicModelInfo='com.vce.commons.vcm.state.CompositeManifestFile$TargetNicModelInfo@2949e0b9', removeUpgradeVIB='false', forceInstall='false', skipList='[]', upgradeTime='0', rebootFlag='false', isUpgradeComponent='false', totalEstimated='100668', totalUsed='54511', minimumVxRailVersion='7.0.010', patchType=''}, upgradeStep UPGRADE, upgradeTarget UpgradeTarget{ComponentType=VXRAIL_COMPOSITE, name='esxxxx.domain.country', isPipelineTask='false'}, action Retrieve the value of the vSAN disk object repair timeout., message Failed to retrieve the existing value of the vSAN disk object repair timeout.

Ulteriori dettagli sull'errore aiutano a identificare l'host interessato e il sintomo aggiuntivo Troppe operazioni in sospeso:

2024-09-27T15:18:29.011Z <7ff91b9f32f61676bfb7758d9af41713> lcm [INFO] <374> BatchUpgrade.java updateVsanClomTimeoutValueBeforeUpgrade() (881): Obtaining the existing vSAN Clom timeout value for th
e host : esxxxx.domain.country
...
2024-09-27T15:18:33.070Z <7ff91b9f32f61676bfb7758d9af41713> lcm [WARN] <374> ScriptServiceImpl.java runLocalScript() (507): [/etc/vmware-marvin/scripts/lcm/scripts/update-vsan-clom-repair-timeout.p
y@localhost]: <stderr> Traceback (most recent call last):
  File "/usr/lib/vmware-marvin/marvind/temp/3741351928508979296.tmp", line 154, in <module>
    main()
  File "/usr/lib/vmware-marvin/marvind/temp/3741351928508979296.tmp", line 149, in main
    get_timeout_value(options)
  File "/usr/lib/vmware-marvin/marvind/temp/3741351928508979296.tmp", line 133, in get_timeout_value
    result = advanced_sys_settings.List(False, VSAN_PROPERTY)
             ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/pyVmomi/VmomiSupport.py", line 706, in <lambda>
    self.f(*(self.args + (obj,) + args), **kwargs)
  File "/usr/lib/python3.11/site-packages/pyVmomi/VmomiSupport.py", line 512, in _InvokeMethod
    return self._stub.InvokeMethod(self, info, args)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/pyVmomi/ManagedMethodExecutorHelper.py", line 74, in InvokeMethod
    result = self.mme.ExecuteSoap(moid=moid,
             ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/pyVmomi/VmomiSupport.py", line 706, in <lambda>
    self.f(*(self.args + (obj,) + args), **kwargs)
  File "/usr/lib/python3.11/site-packages/pyVmomi/VmomiSupport.py", line 512, in _InvokeMethod
    return self._stub.InvokeMethod(self, info, args)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/pyVmomi/SoapAdapter.py", line 1397, in InvokeMethod
    raise obj # pylint: disable-msg=E0702
    ^^^^^^^^^
pyVmomi.VmomiSupport.vmodl.fault.SystemError: (vmodl.fault.SystemError) {
   dynamicType = <unset>,
   dynamicProperty = (vmodl.DynamicProperty) [],
   msg = 'A general system error occurred: Too many outstanding operations',
   faultCause = <unset>,
   faultMessage = (vmodl.LocalizableMessage) [],
   reason = 'Too many outstanding operations'
}

Un problema di codice nelle release 7.0.520 e 7.0.521 di VxRail causa esxcli I comandi host si bloccheranno nel tempo. La query nei log restituisce:

reason = 'Too many outstanding operations'

Ciò genera un errore LCM; il processo di upgrade non riesce a recuperare un valore di configurazione VSAN tramite esxcli.


Una correzione permanente per questo problema è disponibile in VxRail versione 7.0.531. Le note di rilascio sono disponibili in Note di rilascio di Dell VxRail 7.0.x | Dell US (è richiesto l'accesso del cliente)

L'utente deve riavviare hostd management service sul nodo in errore prima di riavviare lo script di aggiornamento di VxRail LCM. In questo modo vengono cancellate le richieste in sospeso e l'upgrade può continuare.

/etc/init.d/hostd restart

Per istruzioni su come riavviare ESXi hostd service, fare riferimento all'articolo Broadcom Riavvio degli agent di gestione in ESXi.

Se è richiesta assistenza esaminando i registri, identificando l'host interessato o riavviando il servizio, contattare il Supporto Dell.

Se è stata applicata la STIG , esaminare l'articolo VxRail: Autorizzazioni file errate per alcune librerie Durante l'aggiornamento alla versione 7.0.400 con STIG, come potenziale causa di questo errore
