VxRail: LCM fra VxRail 7.0.520 eller 7.0.521 viser feil: Henting av tidsavbrudd for reparasjon av vSAN-disk

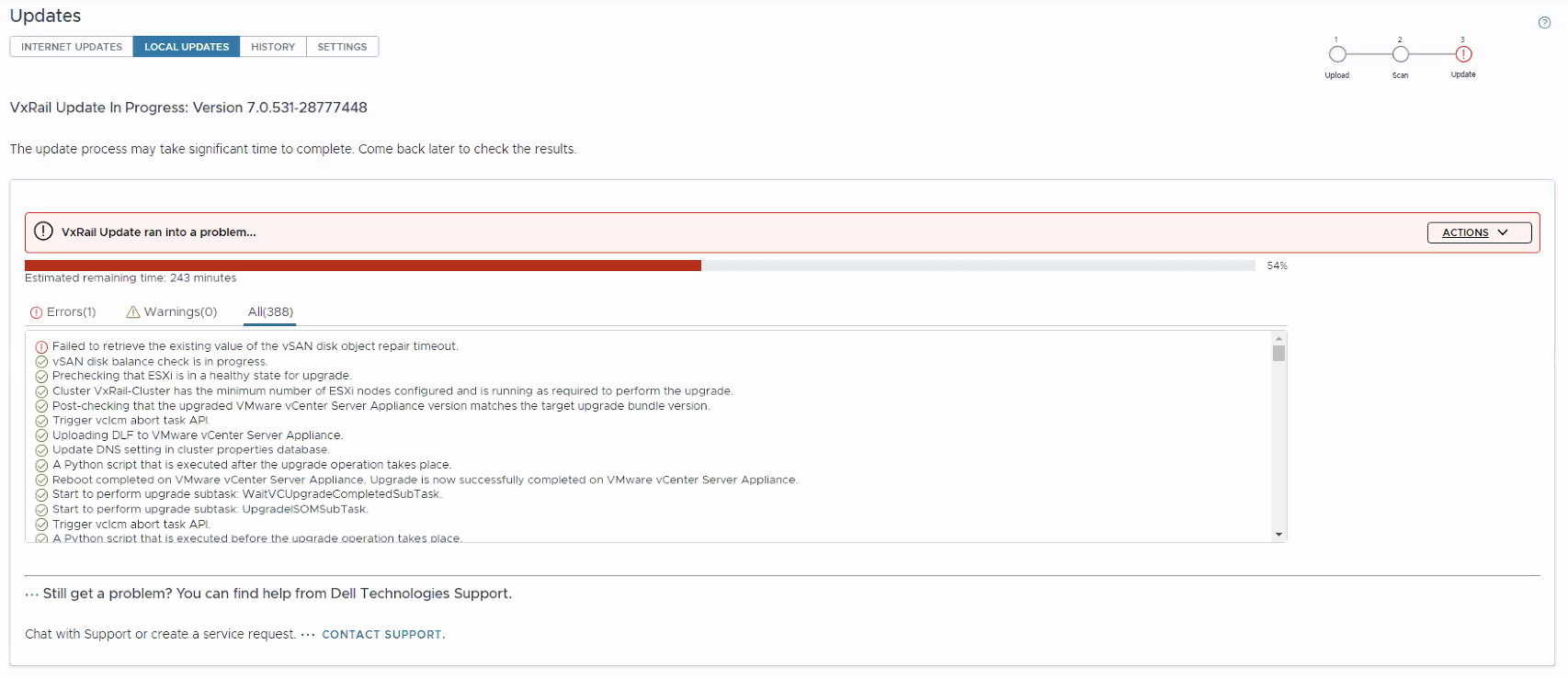

Fanen Oppdateringer av VxRail LCM-brukergrensesnittet for vCenter-plugin vises:

Error message:
VxRail Update ran into a problem...
Failed to retrieve the existing value of the vSAN disk object repair timeout.

På VxRail Manager kan /var/log/mystic/lcm-web.log Viser:

2024-09-27T15:19:21.429Z <7ff91b9f32f61676bfb7758d9af41713> lcm [ERROR] <94> ComponentUpgradeService.java performComponentUpgrade() (323): Component VMWARE_ESXI upgrade failed due to Failed to retrieve the existing value of the vSAN disk object repair timeout..
2024-09-27T15:19:21.429Z <7ff91b9f32f61676bfb7758d9af41713> lcm [INFO] <94> LCMServiceImpl.java handleUpgradeException() (1812): handling upgrade exception.
2024-09-27T15:19:21.429Z <7ff91b9f32f61676bfb7758d9af41713> lcm [INFO] <94> LCMServiceImpl.java handleUpgradeException() (1817): Error from vc or node upgrade, sync the composite file
...
2024-09-27T15:19:21.467Z <7ff91b9f32f61676bfb7758d9af41713> lcm [ERROR] <94> LCMServiceImpl.java handleUpgradeException() (1855): failed to upgrade: VXRAIL_COMPOSITE-7.0.531-28777448_for_7.0.x.zip,
 with exception:
com.vce.lcm.exception.LCMInternalException: Failed to retrieve the existing value of the vSAN disk object repair timeout.
        at com.vce.lcm.core.upgrade.ComponentUpgradeService.performComponentUpgrade(ComponentUpgradeService.java:336)
        at com.vce.lcm.api.LCMServiceImpl.performBatchUpgrade(LCMServiceImpl.java:2152)
...
024-09-27T15:19:21.514Z <7ff91b9f32f61676bfb7758d9af41713> lcm [INFO] <94> VirtualApplianceUpgradeParameterStatusHandler.java notifyError() (102): Notify errors for upgrade bundle UpgradeBundleProfile{name='VXRAIL_COMPOSITE-7.0.531-28777448_for_7.0.x.zip', description='null', sizeInKBytes='15664544', bundleFileName='VXRAIL_COMPOSITE-7.0.531-28777448_for_7.0.x.zip', version='7.0.531', build='28777448', targetHardwareInfo='', targetModelInfo='com.vce.commons.vcm.state.CompositeManifestFile$TargetModelInfo@3901ec9', replaceTargetInfo='com.vce.commons.vcm.state.CompositeManifestFile$ReplaceTargetInfo@16a5c26c', targetNicModelInfo='com.vce.commons.vcm.state.CompositeManifestFile$TargetNicModelInfo@2949e0b9', removeUpgradeVIB='false', forceInstall='false', skipList='[]', upgradeTime='0', rebootFlag='false', isUpgradeComponent='false', totalEstimated='100668', totalUsed='54511', minimumVxRailVersion='7.0.010', patchType=''}, upgradeStep UPGRADE, upgradeTarget UpgradeTarget{ComponentType=VXRAIL_COMPOSITE, name='esxxxx.domain.country', isPipelineTask='false'}, action Retrieve the value of the vSAN disk object repair timeout., message Failed to retrieve the existing value of the vSAN disk object repair timeout.

Ekstra feildetaljer bidrar til å identifisere den berørte verten og det ekstra symptomet For mange utestående operasjoner:

2024-09-27T15:18:29.011Z <7ff91b9f32f61676bfb7758d9af41713> lcm [INFO] <374> BatchUpgrade.java updateVsanClomTimeoutValueBeforeUpgrade() (881): Obtaining the existing vSAN Clom timeout value for th
e host : esxxxx.domain.country
...
2024-09-27T15:18:33.070Z <7ff91b9f32f61676bfb7758d9af41713> lcm [WARN] <374> ScriptServiceImpl.java runLocalScript() (507): [/etc/vmware-marvin/scripts/lcm/scripts/update-vsan-clom-repair-timeout.p
y@localhost]: <stderr> Traceback (most recent call last):
  File "/usr/lib/vmware-marvin/marvind/temp/3741351928508979296.tmp", line 154, in <module>
    main()
  File "/usr/lib/vmware-marvin/marvind/temp/3741351928508979296.tmp", line 149, in main
    get_timeout_value(options)
  File "/usr/lib/vmware-marvin/marvind/temp/3741351928508979296.tmp", line 133, in get_timeout_value
    result = advanced_sys_settings.List(False, VSAN_PROPERTY)
             ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/pyVmomi/VmomiSupport.py", line 706, in <lambda>
    self.f(*(self.args + (obj,) + args), **kwargs)
  File "/usr/lib/python3.11/site-packages/pyVmomi/VmomiSupport.py", line 512, in _InvokeMethod
    return self._stub.InvokeMethod(self, info, args)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/pyVmomi/ManagedMethodExecutorHelper.py", line 74, in InvokeMethod
    result = self.mme.ExecuteSoap(moid=moid,
             ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/pyVmomi/VmomiSupport.py", line 706, in <lambda>
    self.f(*(self.args + (obj,) + args), **kwargs)
  File "/usr/lib/python3.11/site-packages/pyVmomi/VmomiSupport.py", line 512, in _InvokeMethod
    return self._stub.InvokeMethod(self, info, args)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/pyVmomi/SoapAdapter.py", line 1397, in InvokeMethod
    raise obj # pylint: disable-msg=E0702
    ^^^^^^^^^
pyVmomi.VmomiSupport.vmodl.fault.SystemError: (vmodl.fault.SystemError) {
   dynamicType = <unset>,
   dynamicProperty = (vmodl.DynamicProperty) [],
   msg = 'A general system error occurred: Too many outstanding operations',
   faultCause = <unset>,
   faultMessage = (vmodl.LocalizableMessage) [],
   reason = 'Too many outstanding operations'
}

Et kodeproblem i VxRail-versjon 7.0.520 og 7.0.521 forårsaker esxcli Vertskommandoer for å bli sittende fast over tid. Spørringen i loggene returnerer:

reason = 'Too many outstanding operations'

Dette fører til at LCM mislykkes, og oppgraderingsprosessen kan ikke hente en VSAN-konfigurasjonsverdi via esxcli.


En permanent løsning på dette problemet er i VxRail-versjon 7.0.531. Du finner produktmerknadene på produktmerknadene for Dell VxRail 7.0.x | Dell USA (kundepålogging kreves)

Brukeren må starte på nytt hostd management service på den mislykkede noden før omstart av VxRail LCM-oppgraderingsskriptet. Dette sletter utestående forespørsler og gjør at oppgraderingen kan fortsette.

/etc/init.d/hostd restart

Hvis du vil ha veiledning for å starte på nytt ESXi hostd service, se Broadcom-artikkelen Starte administrasjonsagentene på nytt i ESXi.

Hvis du trenger hjelp med å gå gjennom loggene, identifisere den berørte verten eller starte tjenesten på nytt, kan du kontakte Dells kundestøtte.

Hvis STIG har blitt brukt, kan du lese artikkelen VxRail: Feil filtillatelser for enkelte biblioteker Under oppgradering til 7.0.400 med STIG, som en potensiell årsak til denne feilen
