VxRail: O LCM do VxRail 7.0.520 ou 7.0.521 apresenta erro: tempo de espera excedido de reparo do objeto de disco vSAN recuperado

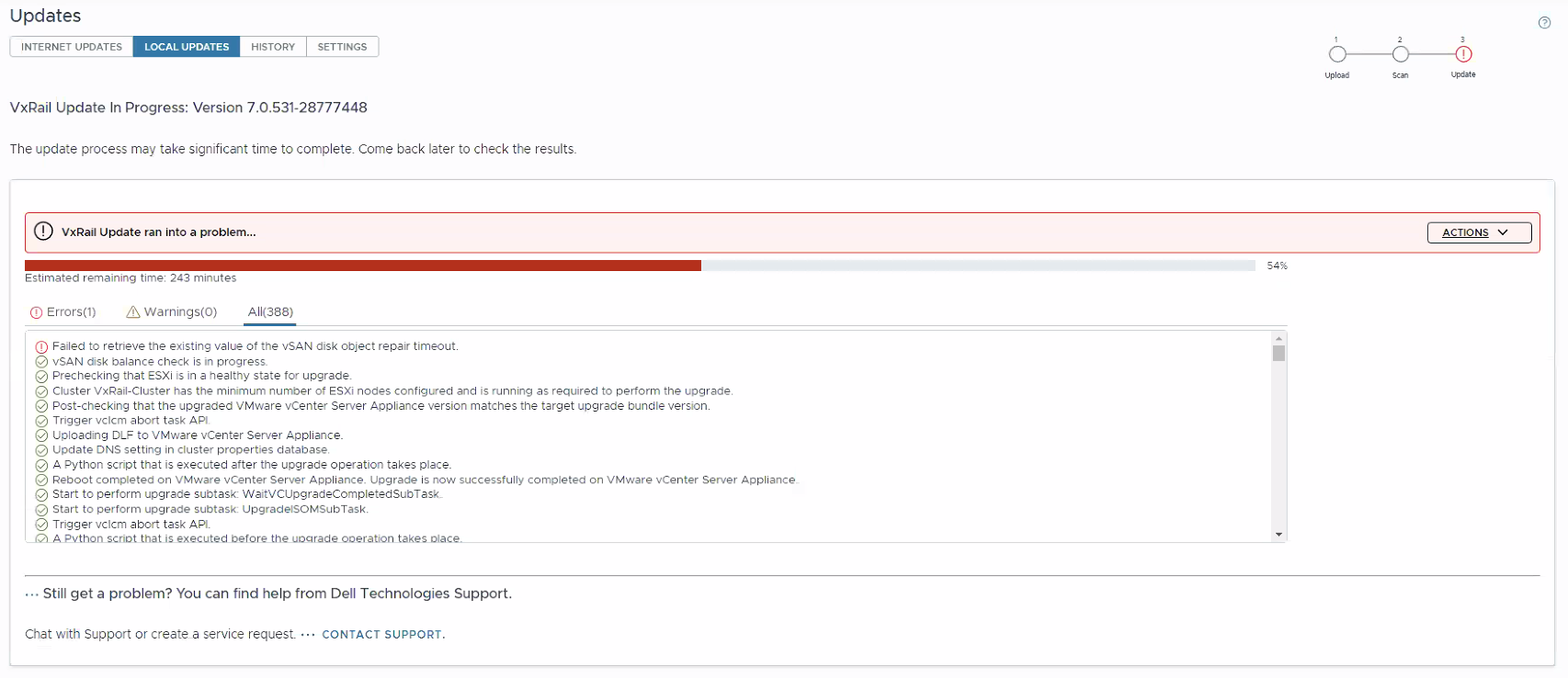

A guia VxRail LCM User Interface vCenter plugin Updates mostra:

Error message:
VxRail Update ran into a problem...
Failed to retrieve the existing value of the vSAN disk object repair timeout.

No VxRail Manager, o /var/log/mystic/lcm-web.log programas:

2024-09-27T15:19:21.429Z <7ff91b9f32f61676bfb7758d9af41713> lcm [ERROR] <94> ComponentUpgradeService.java performComponentUpgrade() (323): Component VMWARE_ESXI upgrade failed due to Failed to retrieve the existing value of the vSAN disk object repair timeout..
2024-09-27T15:19:21.429Z <7ff91b9f32f61676bfb7758d9af41713> lcm [INFO] <94> LCMServiceImpl.java handleUpgradeException() (1812): handling upgrade exception.
2024-09-27T15:19:21.429Z <7ff91b9f32f61676bfb7758d9af41713> lcm [INFO] <94> LCMServiceImpl.java handleUpgradeException() (1817): Error from vc or node upgrade, sync the composite file
...
2024-09-27T15:19:21.467Z <7ff91b9f32f61676bfb7758d9af41713> lcm [ERROR] <94> LCMServiceImpl.java handleUpgradeException() (1855): failed to upgrade: VXRAIL_COMPOSITE-7.0.531-28777448_for_7.0.x.zip,
 with exception:
com.vce.lcm.exception.LCMInternalException: Failed to retrieve the existing value of the vSAN disk object repair timeout.
        at com.vce.lcm.core.upgrade.ComponentUpgradeService.performComponentUpgrade(ComponentUpgradeService.java:336)
        at com.vce.lcm.api.LCMServiceImpl.performBatchUpgrade(LCMServiceImpl.java:2152)
...
024-09-27T15:19:21.514Z <7ff91b9f32f61676bfb7758d9af41713> lcm [INFO] <94> VirtualApplianceUpgradeParameterStatusHandler.java notifyError() (102): Notify errors for upgrade bundle UpgradeBundleProfile{name='VXRAIL_COMPOSITE-7.0.531-28777448_for_7.0.x.zip', description='null', sizeInKBytes='15664544', bundleFileName='VXRAIL_COMPOSITE-7.0.531-28777448_for_7.0.x.zip', version='7.0.531', build='28777448', targetHardwareInfo='', targetModelInfo='com.vce.commons.vcm.state.CompositeManifestFile$TargetModelInfo@3901ec9', replaceTargetInfo='com.vce.commons.vcm.state.CompositeManifestFile$ReplaceTargetInfo@16a5c26c', targetNicModelInfo='com.vce.commons.vcm.state.CompositeManifestFile$TargetNicModelInfo@2949e0b9', removeUpgradeVIB='false', forceInstall='false', skipList='[]', upgradeTime='0', rebootFlag='false', isUpgradeComponent='false', totalEstimated='100668', totalUsed='54511', minimumVxRailVersion='7.0.010', patchType=''}, upgradeStep UPGRADE, upgradeTarget UpgradeTarget{ComponentType=VXRAIL_COMPOSITE, name='esxxxx.domain.country', isPipelineTask='false'}, action Retrieve the value of the vSAN disk object repair timeout., message Failed to retrieve the existing value of the vSAN disk object repair timeout.

Detalhes adicionais do erro ajudam a identificar o host afetado e o sintoma adicional Muitas operações pendentes:

2024-09-27T15:18:29.011Z <7ff91b9f32f61676bfb7758d9af41713> lcm [INFO] <374> BatchUpgrade.java updateVsanClomTimeoutValueBeforeUpgrade() (881): Obtaining the existing vSAN Clom timeout value for th
e host : esxxxx.domain.country
...
2024-09-27T15:18:33.070Z <7ff91b9f32f61676bfb7758d9af41713> lcm [WARN] <374> ScriptServiceImpl.java runLocalScript() (507): [/etc/vmware-marvin/scripts/lcm/scripts/update-vsan-clom-repair-timeout.p
y@localhost]: <stderr> Traceback (most recent call last):
  File "/usr/lib/vmware-marvin/marvind/temp/3741351928508979296.tmp", line 154, in <module>
    main()
  File "/usr/lib/vmware-marvin/marvind/temp/3741351928508979296.tmp", line 149, in main
    get_timeout_value(options)
  File "/usr/lib/vmware-marvin/marvind/temp/3741351928508979296.tmp", line 133, in get_timeout_value
    result = advanced_sys_settings.List(False, VSAN_PROPERTY)
             ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/pyVmomi/VmomiSupport.py", line 706, in <lambda>
    self.f(*(self.args + (obj,) + args), **kwargs)
  File "/usr/lib/python3.11/site-packages/pyVmomi/VmomiSupport.py", line 512, in _InvokeMethod
    return self._stub.InvokeMethod(self, info, args)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/pyVmomi/ManagedMethodExecutorHelper.py", line 74, in InvokeMethod
    result = self.mme.ExecuteSoap(moid=moid,
             ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/pyVmomi/VmomiSupport.py", line 706, in <lambda>
    self.f(*(self.args + (obj,) + args), **kwargs)
  File "/usr/lib/python3.11/site-packages/pyVmomi/VmomiSupport.py", line 512, in _InvokeMethod
    return self._stub.InvokeMethod(self, info, args)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/pyVmomi/SoapAdapter.py", line 1397, in InvokeMethod
    raise obj # pylint: disable-msg=E0702
    ^^^^^^^^^
pyVmomi.VmomiSupport.vmodl.fault.SystemError: (vmodl.fault.SystemError) {
   dynamicType = <unset>,
   dynamicProperty = (vmodl.DynamicProperty) [],
   msg = 'A general system error occurred: Too many outstanding operations',
   faultCause = <unset>,
   faultMessage = (vmodl.LocalizableMessage) [],
   reason = 'Too many outstanding operations'
}

Um problema de código no VxRail versões 7.0.520 e 7.0.521 causa esxcli Comandos de host para travar ao longo do tempo. A consulta nos logs retorna:

reason = 'Too many outstanding operations'

Isso resulta na falha do LCM, e o processo de upgrade não consegue recuperar um valor de configuração do VSAN por meio de esxcli.


Uma correção permanente para esse problema está na versão 7.0.531 do VxRail. As notas da versão encontram-se em Notas da versão do Dell VxRail 7.0.x | Dell EUA (necessário login do cliente)

O usuário deve reiniciar o hostd management service no nó com falha antes de reiniciar o script de upgrade do LCM do VxRail. Isso limpa as solicitações pendentes e permite que o upgrade continue.

/etc/init.d/hostd restart

Para obter orientação sobre como reiniciar o ESXi hostd service, consulte o artigo da Broadcom Reiniciando os agentes de gerenciamento no ESXi.

Se for necessária assistência, analise os logs, identifique o host afetado ou reinicie o serviço, entre em contato com o Suporte Dell.

Se o STIG tiver sido aplicado, consulte o artigo VxRail: Permissões de arquivo incorretas para algumas bibliotecas durante o upgrade para a versão 7.0.400 com STIG, como uma possível causa desse erro
