NetWorker VE 19.13: Avinstaller Service Does Not Come Up During NvePlatformOsRollup_2025-R2-v3

The NetWorker server is a NetWorker Virtual Edition (NVE) 19.13.

While applying an NvePlatformOsRollup package, the NVE reboots and the NVE web interface does not return:

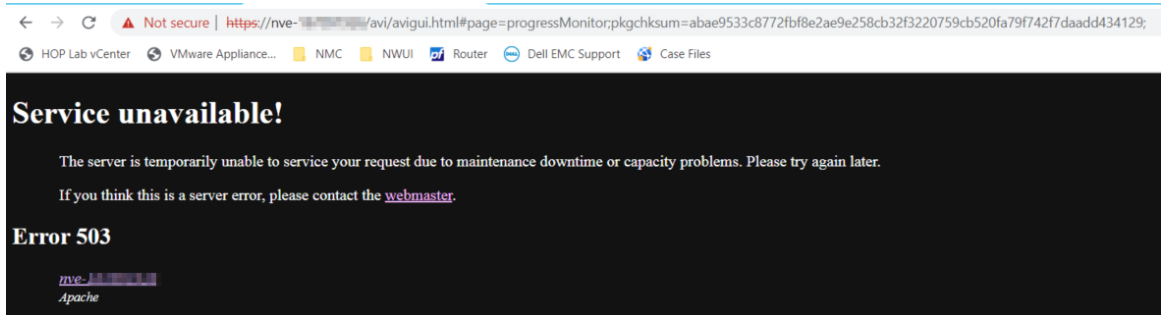

Figure 1: NVE Web Interface is Unavailable with Error 503.

The avinstaller service failed to start:

/space/avamar/var/avi/webserv_log/jetty.log show error:

2025-08-07 10:21:57.225 +0800 8610 [main] ERROR com.avamar.avinstaller.AVIMain - AVIMain failed to start. System exits
java.lang.ExceptionInInitializerError: null
Caused by: java.lang.SecurityException: JCE cannot authenticate the provider JsafeJCE
                at javax.crypto.Cipher.getInstance(Cipher.java:662)
                at sun.security.ssl.JsseJce.getCipher(JsseJce.java:191)
                at sun.security.ssl.SSLCipher.isTransformationAvailable(SSLCipher.java:483)
                at sun.security.ssl.SSLCipher.<init>(SSLCipher.java:472)
                at sun.security.ssl.SSLCipher.<clinit>(SSLCipher.java:81)
                ... 29 common frames omitted
Caused by: java.util.jar.JarException: file:/usr/lib/jvm/jre-1.8.0_451-oracle-x64/lib/ext/cryptojce-6.2.5.jar has unsigned entries - com/rsa/jsafe/provider/Assurance.class
                at javax.crypto.JarVerifier.verifySingleJar(JarVerifier.java:510)
                at javax.crypto.JarVerifier.verifyJars(JarVerifier.java:371)
                at javax.crypto.JarVerifier.verify(JarVerifier.java:297)
                at javax.crypto.JceSecurity.verifyProviderJar(JceSecurity.java:164)
                at javax.crypto.JceSecurity.getVerificationResult(JceSecurity.java:190)
                at javax.crypto.Cipher.getInstance(Cipher.java:658)
                ... 33 common frames omitted

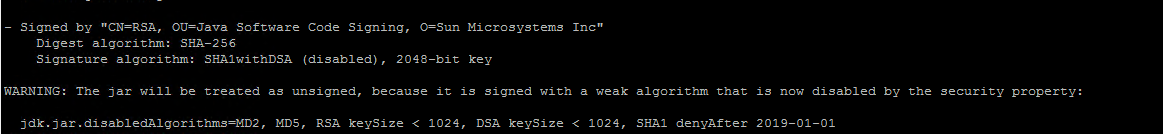

• /usr/lib/jvm/jre-1.8.0_451-oracle-x64/lib/ext/cryptojce-6.2.5.jar is treated as unsigned, because it is signed with a weak algorithm that is disabled by the security property: jdk.jar.disabledAlgorithms=MD2, MD5, RSA keySize < 1024, DSA keySize < 1024, SHA1 denyAfter 2019-01-01
• Install NvePlatformOsRollup_2025-R2-v3 requires higher version of cryptojce and cryptojcommon.

# cd /opt/nre/java/jdk-17.0.12/bin/

#./jarsigner -verify -verbose -certs /usr/lib/jvm/jre-1.8.0_451-oracle-x64/lib/ext/cryptojce-6.2.5.jar



A code fix is expected in 19.13.0.3 (Tentative January 2026). Applying the rollup on 19.13.0.3 and later is not expected to encounter this issue.

Workaround:

Follow the article NetWorker Virtual Edition: How to Remove and Reinstall avinstaller to reinstall avinstaller, you get both 6.2.5 and 6.2.5.0.2 for cryptojce and cryptojcommon:

Then delete cryptojce-6.2.5.jar and cryptojcommon-6.2.5.jar.

Steps:

1. Log in to NVE as admin and switch to root
2. Get the installed version of avinstaller package name dpnavinstaller

# rpm -qa | grep dpnavi
dpnavinstaller-19.9.0-78.x86_64

3. Download AvamarBundle_SLES12SP5_64-19.9.0-78.zip from https://www.dell.com/support/product-details/en-us/product/avamar/drivers
4. Stop the service

# avinstaller.pl –stop

4. Make a copy of the AVIDB file which contains all software deployment history

# cp /usr/local/avamar/var/avi/server_data/avidb /space/avidb.bak

5. Uninstall the avinstaller package

# rpm -e dpnavinstaller-19.9.0-78.x86_64

6. Assume that the downloaded bundle is put in /tmp folder

# unzip AvamarBundle_SLES12SP5_64-19.9.0-78.zip

The files are extracted in the folder /tmp/ AvamarBundle_SLES12SP5_64.

# ll
total 399116
-rwxr-xr-x 1 root root  45830900 Apr 14  2023 ADS_network_test_SLES-10.1.1-5.run
-rw-r--r-- 1 root root   8118272 Apr 14  2023 AvamarDownloaderService-windows-x86-19.9.0-78.exe
-rw-r--r-- 1 root root   9157120 Apr 14  2023 AvamarDownloaderService-windows-x86_64-19.9.0-78.exe
-rwxr-xr-x 1 root root 341535319 Apr 14  2023 avinstaller-bootstrap-19.9.0-78.sles12sp5_64.x86_64.run
-rwxr-xr-x 1 root root   3621210 Apr 14  2023 dpnnetutil-19.9.0-78.run

7. Install avinstaller

# ./avinstaller-bootstrap-19.9.0-78.sles12sp5_64.x86_64.run

8. Verify that the package is installed

# rpm -qa | grep dpnavi
dpnavinstaller-19.9.0-78.x86_64

# avinstaller.pl --version
  version:              19.9.0.78

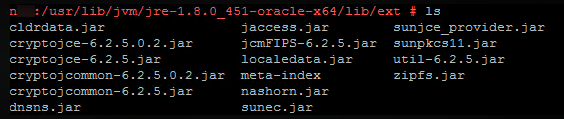

9. Both 6.2.5 and 6.2.5.0.2 for cryptojce and cryptojcommon are listed:

# ls -lhat /usr/lib/jvm/jre-1.8.0_451-oracle-x64/lib/ext
total 12M
drwxr-xr-x  2 root root 4.0K Aug 14 12:02 .
drwxr-xr-x 14 root root 4.0K Aug  8 13:14 ..
-r--r--r--  1 root root  76K Aug  4 09:13 cryptojce-6.2.5.jar
-r--r--r--  1 root root 1.6M Aug  4 09:13 cryptojcommon-6.2.5.jar
-rw-r--r--  1 root root 3.7M Apr  5 11:24 cldrdata.jar
-rw-r--r--  1 root root 8.3K Apr  5 11:24 dnsns.jar
-rw-r--r--  1 root root  44K Apr  5 11:24 jaccess.jar
-rw-r--r--  1 root root 1.2M Apr  5 11:24 localedata.jar
-rw-r--r--  1 root root  746 Apr  5 11:24 meta-index
-rw-r--r--  1 root root 2.0M Apr  5 11:24 nashorn.jar
-rw-r--r--  1 root root  47K Apr  5 11:24 sunec.jar
-rw-r--r--  1 root root 292K Apr  5 11:24 sunjce_provider.jar
-rw-r--r--  1 root root 289K Apr  5 11:24 sunpkcs11.jar
-rw-r--r--  1 root root  69K Apr  5 11:24 zipfs.jar
-r--r--r--  1 root root  79K Apr 14  2023 cryptojce-6.2.5.0.2.jar
-r--r--r--  1 root root 1.6M Apr 14  2023 cryptojcommon-6.2.5.0.2.jar
-r--r--r--  1 root root 518K Apr 14  2023 jcmFIPS-6.2.5.jar
-r--r--r--  1 root root 7.9K Apr 14  2023 util-6.2.5.jar

10. The avi service cannot start due to same error so you have to remove cryptojce-6.2.5.jar and cryptojcommon-6.2.5.jar

# rm cryptojce-6.2.5.jar

# rm cryptojcommon-6.2.5.jar

11. Restart avi service

# avinstaller.pl --start
Avistart process:
INFO: Starting AVI service...
INFO: Succeed to start AVI service.

12. Check status of avi service and ensure that the service is up.

# systemctl status avi

13. Shut down the service and put back the original AVIDB file

# avinstaller.pl –stop

# cp /space/avidb.bak /usr/local/avamar/var/avi/server_data/avidb

# avinstaller.pl --start

14. Verify it works by login to the avinstaller web interface or run command

# avi-cli -v localhost –listhistory
