PowerEdge: IR7000: M7725 ConnectX-8 Disconnection with PCI3040 Error During High System Load
Summary: In rare cases, such as the CPU, memory, NVIDIA ConnectX-8 InfiniBand card, and other PCIe cards are under a heavy workload, the ConnectX-8 connection drops for about five seconds. When this happens, a PCI3039 or PCI3040 error is logged in the System event log (SEL). ...
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms

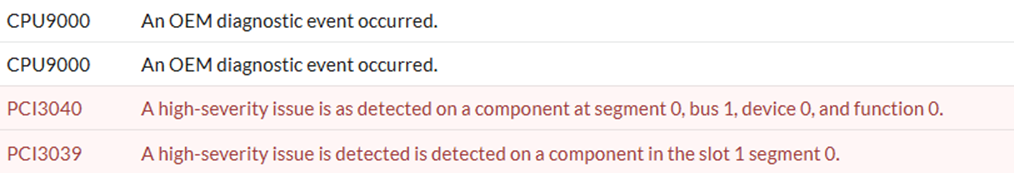

In rare corner cases, when the M7725 is configured with a NVIDIA ConnectX-8 (P/N: NYKN5), the LC/SEL logs report a PCI3039 or PCI3040: A high-severity issue is detected error on the CX-8 InfiniBand card.

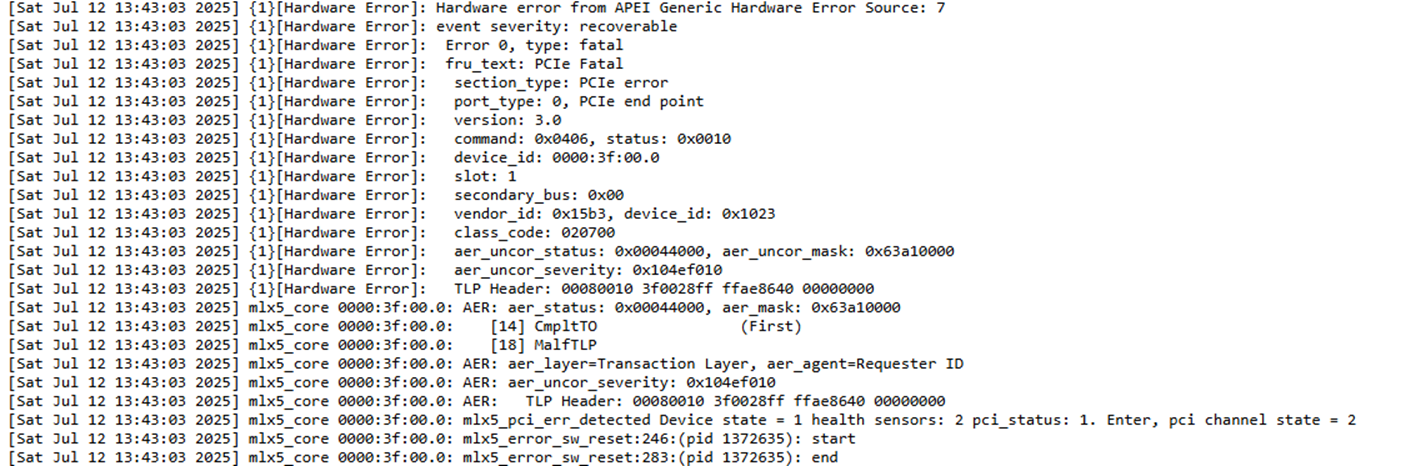

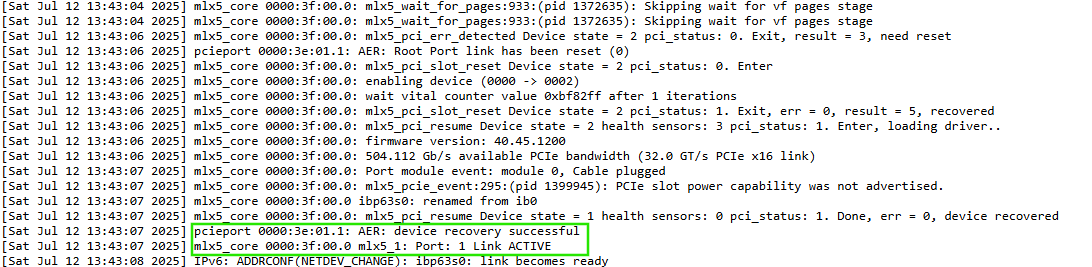

Concurrently, the OS logs recorded a CmpltTO (Completion TimeOut) PCIe fatal error on the ConnectX-8 card, which then recovers successfully after about five seconds.
Cause
Unknown
Resolution

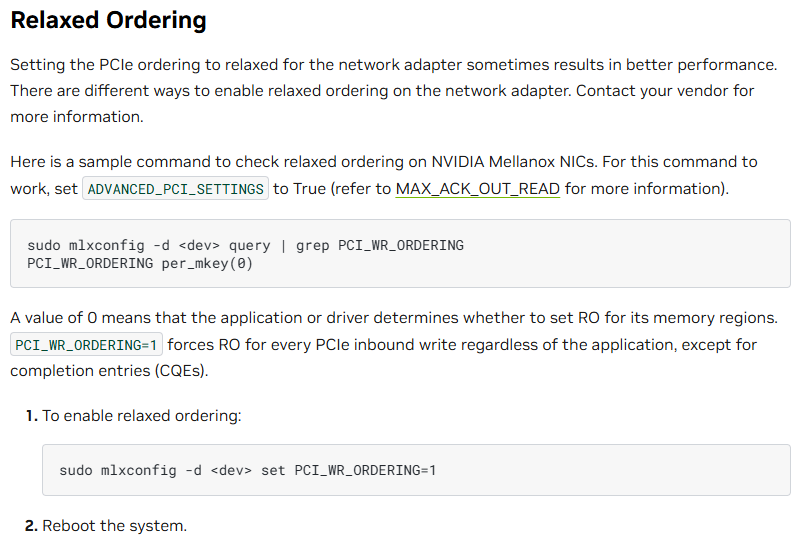

Follow the NVIDIA Performance Tuning Guide
Affected Products
Mellanox Family of Adapters, PowerEdge M7725Article Properties
Article Number: 000357077
Article Type: Solution
Last Modified: 21 Nov 2025
Version: 2
