iDRAC10: Generic LDAP authentication fails with IPA servers

Summary: iDRAC10 when using Generic Lightweight Directory Access Protocol (LDAP) authentication fails when connecting to Identity Policy Audit (IPA) directory servers.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

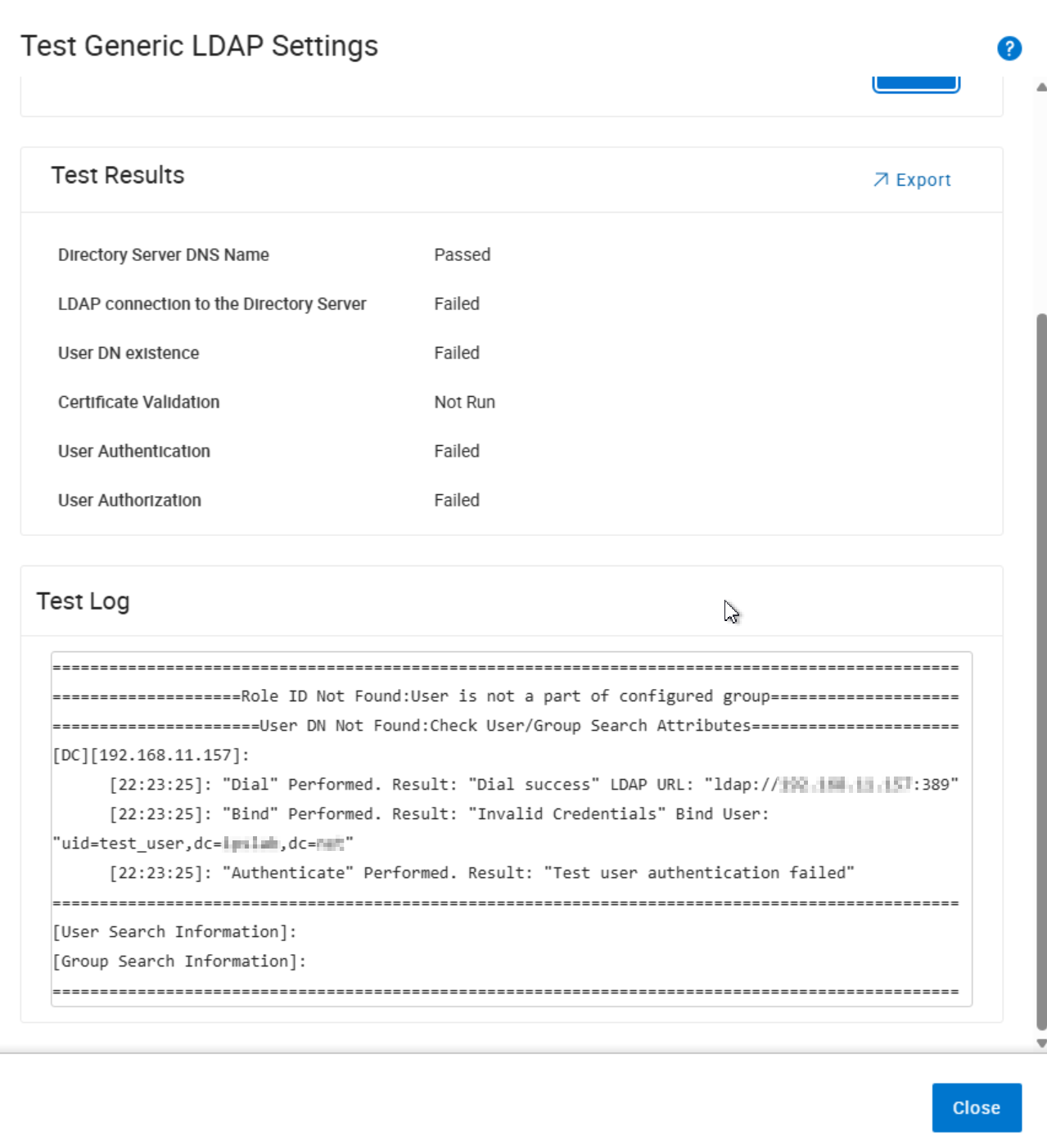

Using the "Test Generic LDAP Settings" feature the detailed output shows that LDAP BIND failed. Detailed output shows the BIND Distinguished Name (DN) is truncated.

Test Generic Ldap Settings Bind Failure

Cause

This impacts IPA and any other LDAP implementation where user objects DN is starting with uid=

Resolution

This behavior is fixed in iDRAC10 Firmware release 1.20.80.50.



NOTE: IPA server returns two objects for User search. The first is for the IPA object and the second is for Posix Compatibility.



  • "uid=test_user,cn=users,cn=accounts,dc=example,dc=com"
  • "uid=test_user,cn=users,cn=compat,dc=example,dc=com"

This means that iDRAC must have a search constraint specified so that only one object is returned from the user search.

One example is to specify SearchFilter=objectClass=inetorgperson

[Key=idrac.Embedded.1#LDAP.1]
BaseDN=dc=example,dc=com
BindDN=uid=ldap_service,cn=users,cn=accounts,dc=example,dc=com
!!BindPassword=******** (Write-Only)
CertValidationEnable=Disabled
Connection=LDAPS
Enable=Enabled
GroupAttribute=member
GroupAttributeIsDN=Enabled
Port=636
RSASecurID2FALDAP=Disabled
SearchFilter=objectClass=inetorgperson      <----
Server=ipa-server.example.com
UserAttribute=uid
UUIDLDAPAttr=ipaUniqueID

Affected Products

iDRAC10 - 1.10.xx Series, iDRAC10 - 1.20.xx Series
Article Properties
Article Number: 000370665
Article Type: Solution
Last Modified: 29 Sep 2025
Version:  1
