No Beep Sound When Testing Audio in e-Diags, BIOS-diags, or ePSA on Inspiron or Vostro Laptops

Riepilogo: Learn about the beep sound when testing audio in e-Diags, BIOS-diags, or ePSA on Inspiron or Vostro laptops.

Questo articolo si applica a Questo articolo non si applica a Questo articolo non è legato a un prodotto specifico. Non tutte le versioni del prodotto sono identificate in questo articolo.
Scopri le altre risorse

Sintomi

Inspiron or Vostro laptop may not generate beep sound when running audio tests in e-Diags, BIOS-diags, or ePSA.

Affected Products:

  • Inspiron 3501
  • Inspiron 3505
  • Inspiron 3511
  • Inspiron 3520
  • Vostro 3400
  • Vostro 3401
  • Vostro 3405
  • Vostro 3420
  • Vostro 3500
  • Vostro 3501
  • Vostro 3510
  • Vostro 3520

Causa

Cirrus audio codec does not support beep sound generated in e-Diags, BIOS-diags, or ePSA.

Risoluzione

It is a design limitation that the Cirrus audio codec does not support beep sound generated in e-Diags/ BIOS-diags/ ePSA. See the following table:

Symptom Instruction for Cirrus Audio Codec Solution Instruction for Realtek audio Codec solution
No beep sound generated, but e-Diags/ BIOS-diags/ ePSA shows pass. It is an expected behavior as per design limitation (BITS473569).
Suggest customers double confirm symptom in windows.		 It may relate to an audio driver or speaker problem.
Suggest customers double confirm symptom in windows.
Still no audio sound in Windows. If no sound, should have an audio driver or speaker problem in the computer. If no sound, should have an audio driver or speaker problem in the computer.



How to identify codec vendor:

  1. Power on and boot to Windows Desktop.

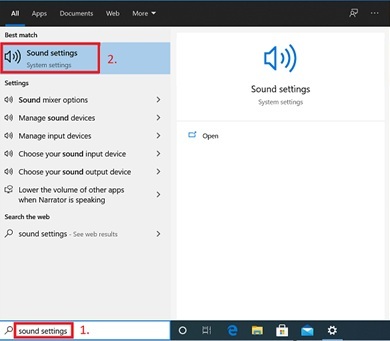

  2. Search Sound settings in the start menu.
    Search Sound settings in the start menu

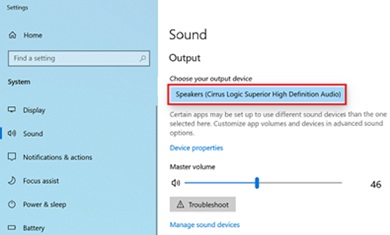

  3. Check the audio device name.
    Check Audio device name.
    • Cirrus Logic Audio Codec shows:
      Cirrus Logic Audio Codec shows
    • Realtek Audio Codec shows:
      Realtek Audio Codec shows

How to check if the audio function is workable in Windows:

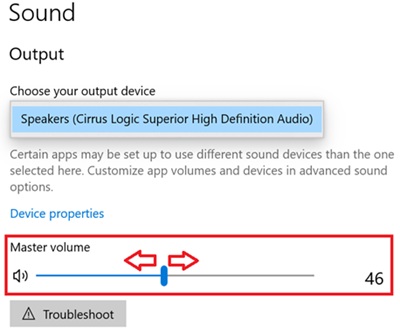

Double-click the volume bar to check speaker function. (It is not limited to this method, any way that can check that the sound output is applicable.)

Double-click the volume bar to check speaker function.

Prodotti interessati

Inspiron 3501, Inspiron 3505, Inspiron 15 3511, Inspiron 15 3520, Vostro 3400, Vostro 3401, Vostro 3405, Vostro 3420, Vostro 3500, Vostro 3501, Vostro 15 3510, Vostro 3520
