PowerEdge: NVIDIA ConnectX-4 ConnectX-5 cards not recognized with BIN file updates

Riepilogo: The article provides the solution to the firmware update errors for ConnectX-4 LX NICs SWB 76DNG version 14.32.21.02 & ConnectX-5 dual port SWB 1GF8G version 16.35.40.30.

Questo articolo si applica a Questo articolo non si applica a Questo articolo non è legato a un prodotto specifico. Non tutte le versioni del prodotto sono identificate in questo articolo.
Scopri le altre risorse

Sintomi

Firmware updates using BIN file for Mellanox ConnectX-4 LX NICs SWB 76DNG version 14.32.21.02 and ConnectX-5 dual port SWB 1GF8G version 16.35.40.30 fails on 14G platforms running Red Hat 8 and 9.

The update process returns the error: “No relevant image file was found for this device.”

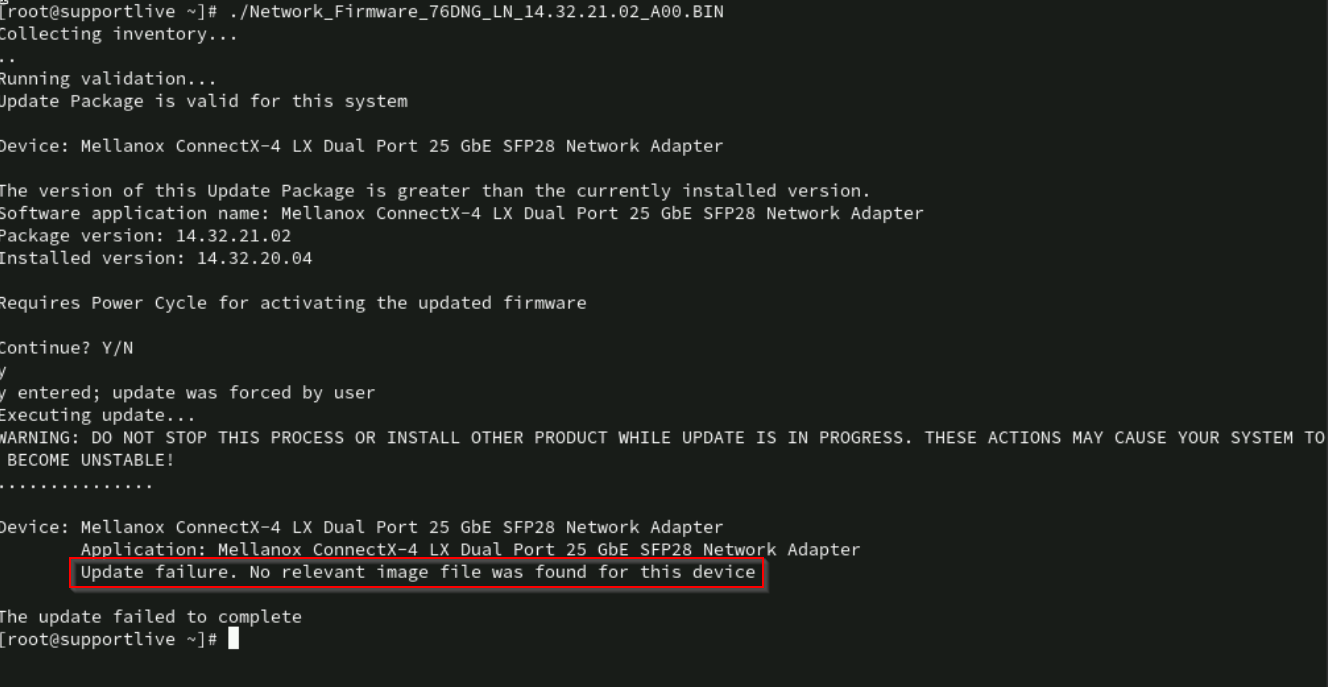

Error output

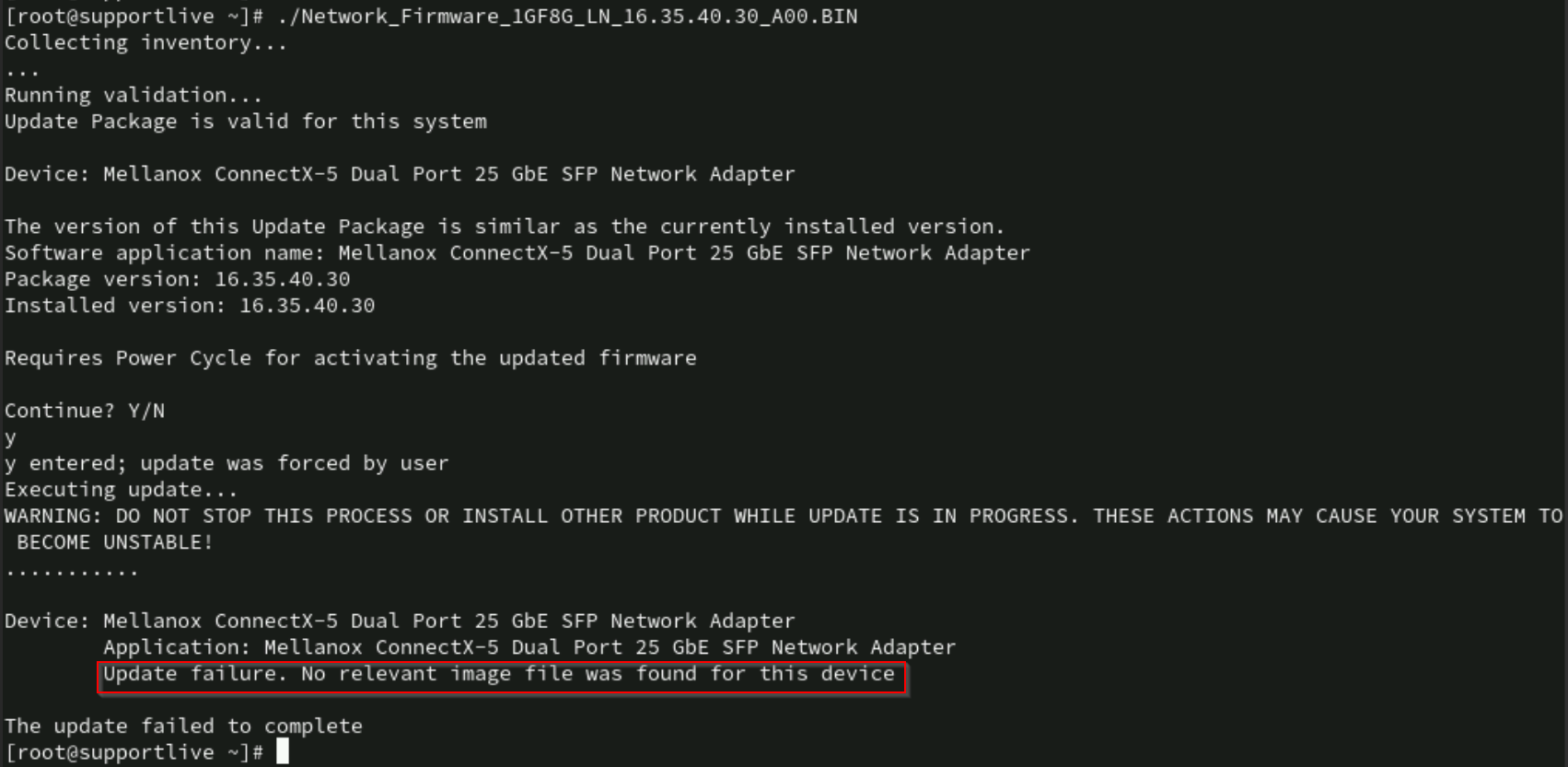

Error output
This issue affects firmware compliance and update strategy for CX-4 and CX-5 BIN files.

Causa

The BIN file update package does not correctly recognize the Mellanox NIC device during execution, resulting in a failure to locate the appropriate image file. This issue appears specific to the newer update version and affects updates performed through the OS.

Risoluzione

Issue has been resolved in the following published releases:

CX-4 Firmware version 14.32.21.04_A00_03

CX-5 Firmware version 16.35.45.54_A00_01

Work around options.

1. Update using iDRAC
2. RACADM CLI update
3. OS- Extract the DUP manually and apply the firmware using mlxfwupdater:

Note: mlxfwupdater is part of MFT (NVIDIA Firmware Tools) which is in newer drivers. If missing use the NVIDIA support site to locate the MFT resource.

Shell
Step 1: ./NameOfDUP --extract <NameDirectoryToExtractTo i.e update>
Step 2: cd <DirectoryToExtractTo>./mlxfwupdater -D payload -u -y

That is ConnectX-4 LX.

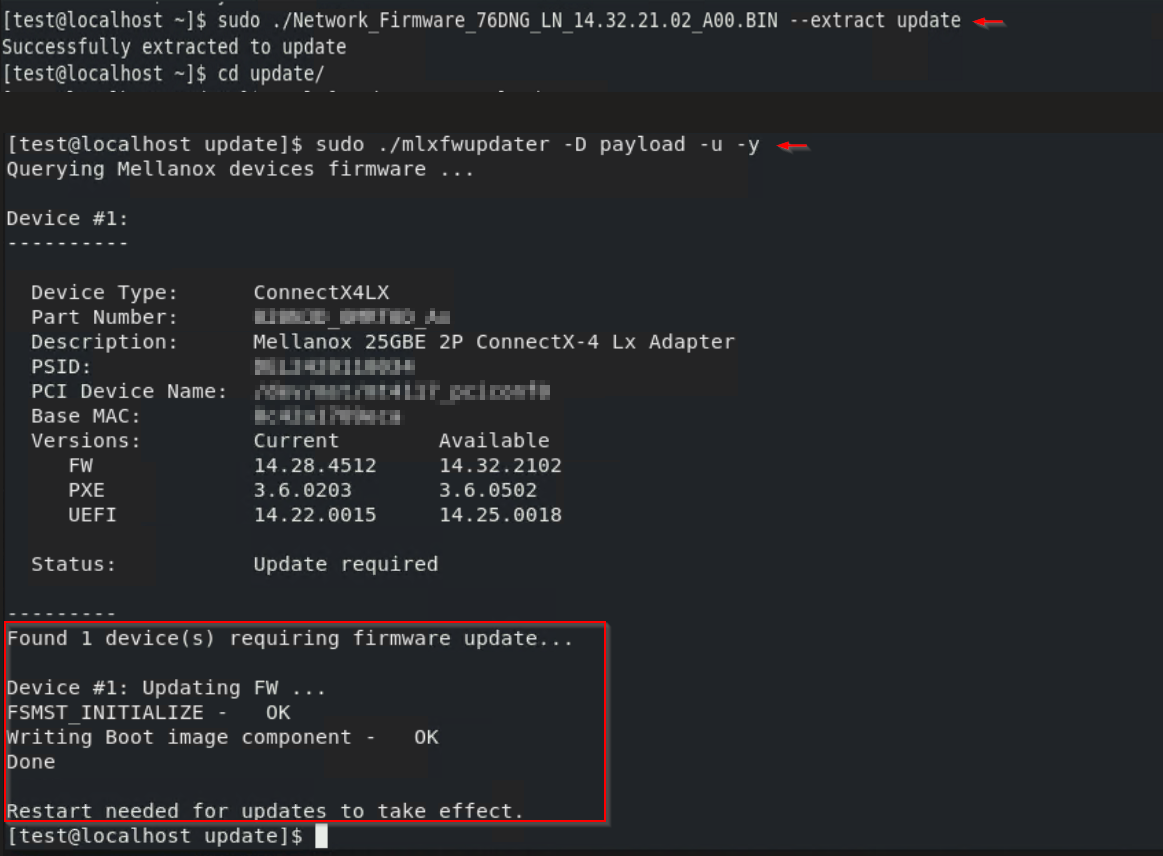

cli output

If both adapters are present in the same system, then do the following:

  1. Copy the payload firmware files between extracted directories
  2. Run the updater to apply updates to all adapters.







Prodotti interessati

Mellanox Family of Adapters, PowerEdge C4130, Poweredge C4140, PowerEdge c6300, PowerEdge c6320, PowerEdge c6320p, PowerEdge C6420, Poweredge FC430, Poweredge FC630, PowerEdge FC640

Prodotti

Poweredge FC830, PowerEdge M630, PowerEdge M630 (for PE VRTX), PowerEdge M640, PowerEdge M640 (for PE VRTX), PowerEdge M830, PowerEdge M830 (for PE VRTX), PowerEdge MX740C, PowerEdge MX840C, PowerEdge R340, PowerEdge R430, PowerEdge R440 , PowerEdge R530, PowerEdge R540, PowerEdge R630, PowerEdge R640, PowerEdge R6415, PowerEdge R650, PowerEdge R660, PowerEdge R6615, PowerEdge R6625, PowerEdge R730, PowerEdge R730xd, PowerEdge R740, PowerEdge R740XD, PowerEdge R740XD2, PowerEdge R7415, PowerEdge R7425, PowerEdge R750, PowerEdge R7525, PowerEdge R760, PowerEdge R7615, PowerEdge R7625, PowerEdge R830, PowerEdge R840, PowerEdge R930, PowerEdge R940, PowerEdge R940xa, PowerEdge T430, PowerEdge T630, PowerEdge T640, PowerEdge XE7420, PowerEdge XE7440, PowerEdge XE8545, PowerEdge XR4520c ...
