PowerEdge：NVIDIA ConnectX-4 ConnectX-5 卡無法透過 BIN 檔案更新來識別
Riepilogo: 本文提供 ConnectX-4 LX NIC SWB 76DNG 版本 14.32.21.02 與 ConnectX-5 雙埠 SWB 1GF8G 版本 16.35.40.30 韌體更新錯誤的解決方案。
Questo articolo si applica a
Questo articolo non si applica a
Questo articolo non è legato a un prodotto specifico.
Non tutte le versioni del prodotto sono identificate in questo articolo.
Sintomi
在執行 Red Hat 8 和 9 的 14G 平台上，使用 Mellanox ConnectX-4 LX NIC SWB 76DNG 版本 14.32.21.02 和 ConnectX-5 雙埠 SWB 1GF8G 版本 16.35.40.30 的韌體更新失敗。

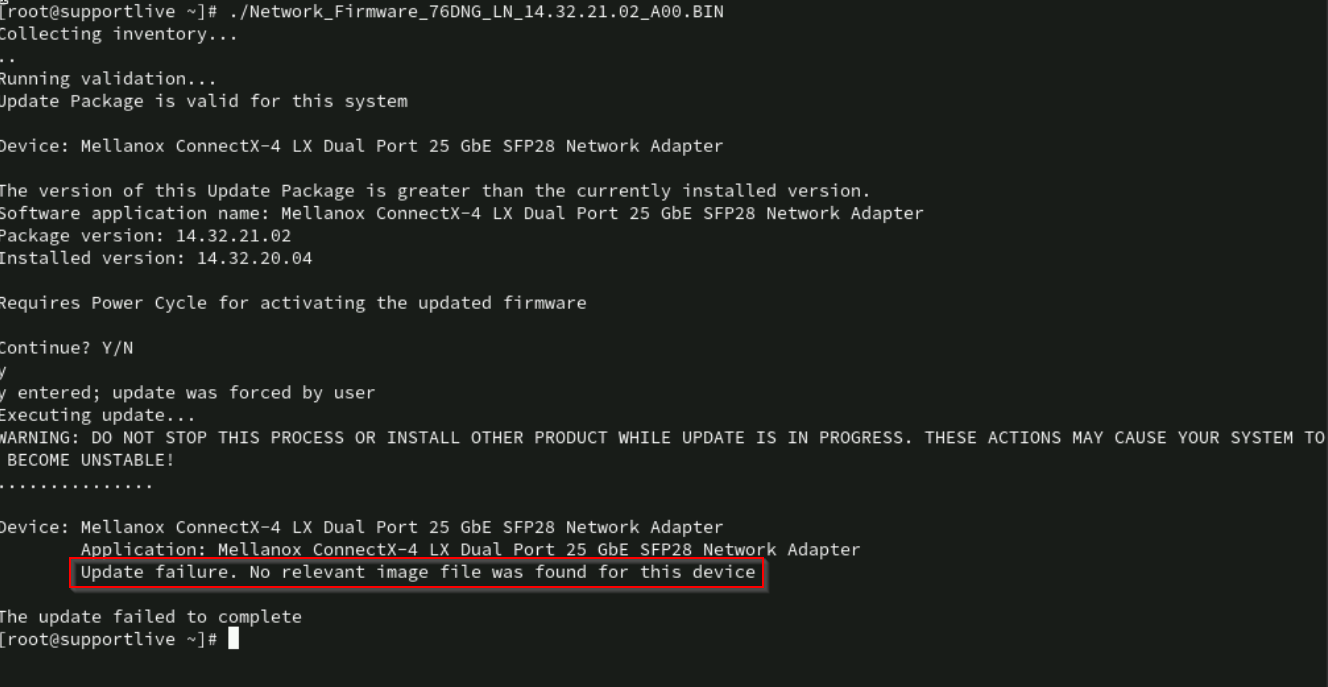

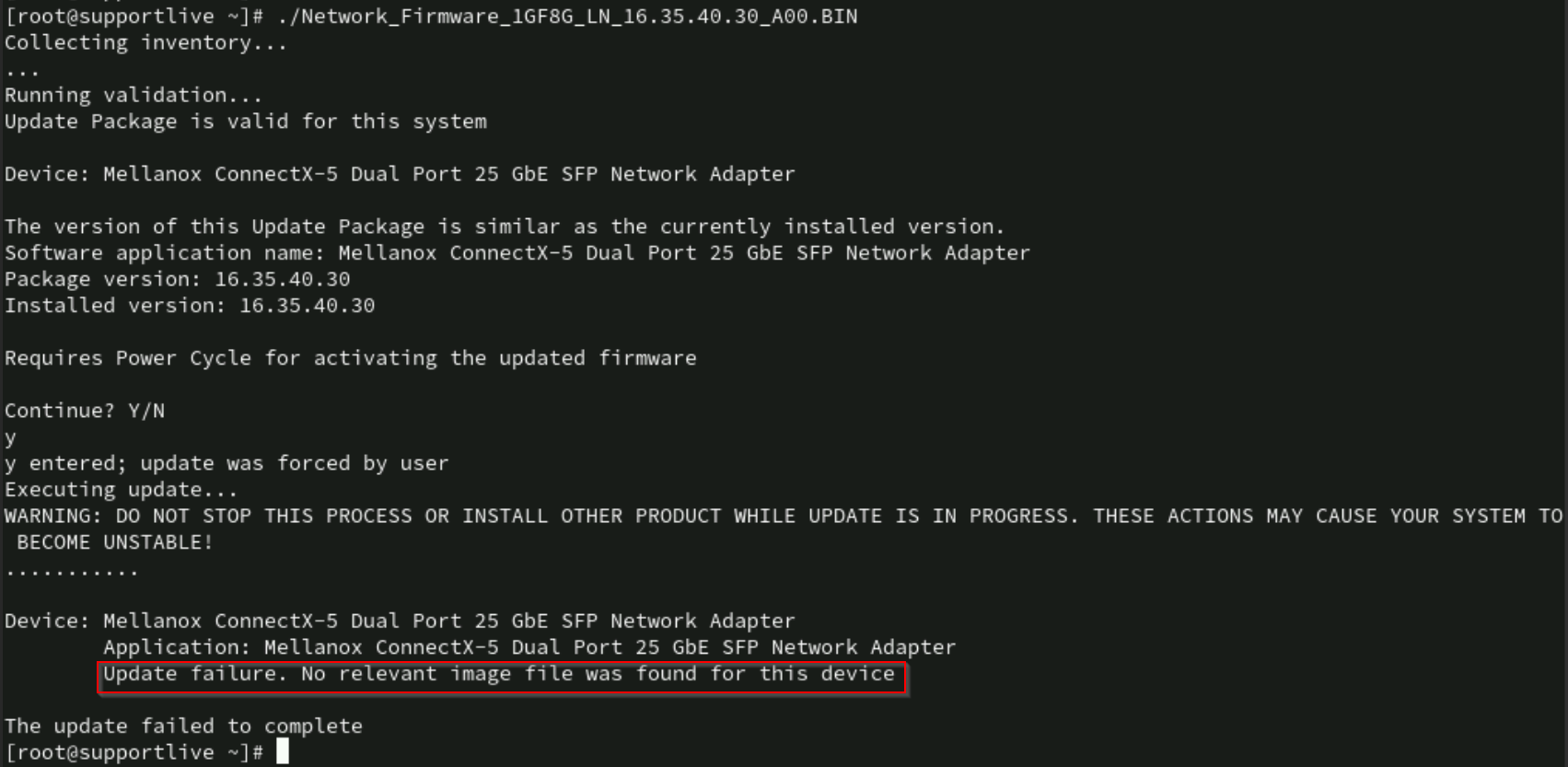

更新程序傳回錯誤： “No relevant image file was found for this device.”
此問題會影響 CX-4 和 CX-5 BIN 檔案的韌體相容性和更新策略。
Causa
BIN 檔案更新套件在執行期間無法正確識別 Mellanox NIC 裝置，導致找不到適當的映像檔案。此問題似乎特有於較新的更新版本，並會影響透過作業系統執行的更新。
Risoluzione
問題已在下列發佈的版本中解決：
CX-4 韌體版本 14.32.21.04_A00_03
CX-5 韌體版本 16.35.45.54_A00_01
變通辦法選項。
1.使用 iDRAC
更新 2.RACADM CLI 更新
3.作業系統 - 手動解壓縮 DUP，然後使用 mlxfwupdater 套用韌體：
注意： mlxfwupdater 是較新驅動程式 MFT （NVIDIA 韌體工具） 的一部分。如果遺失，請使用 NVIDIA 支援網站尋找 MFT 資源。
Shell

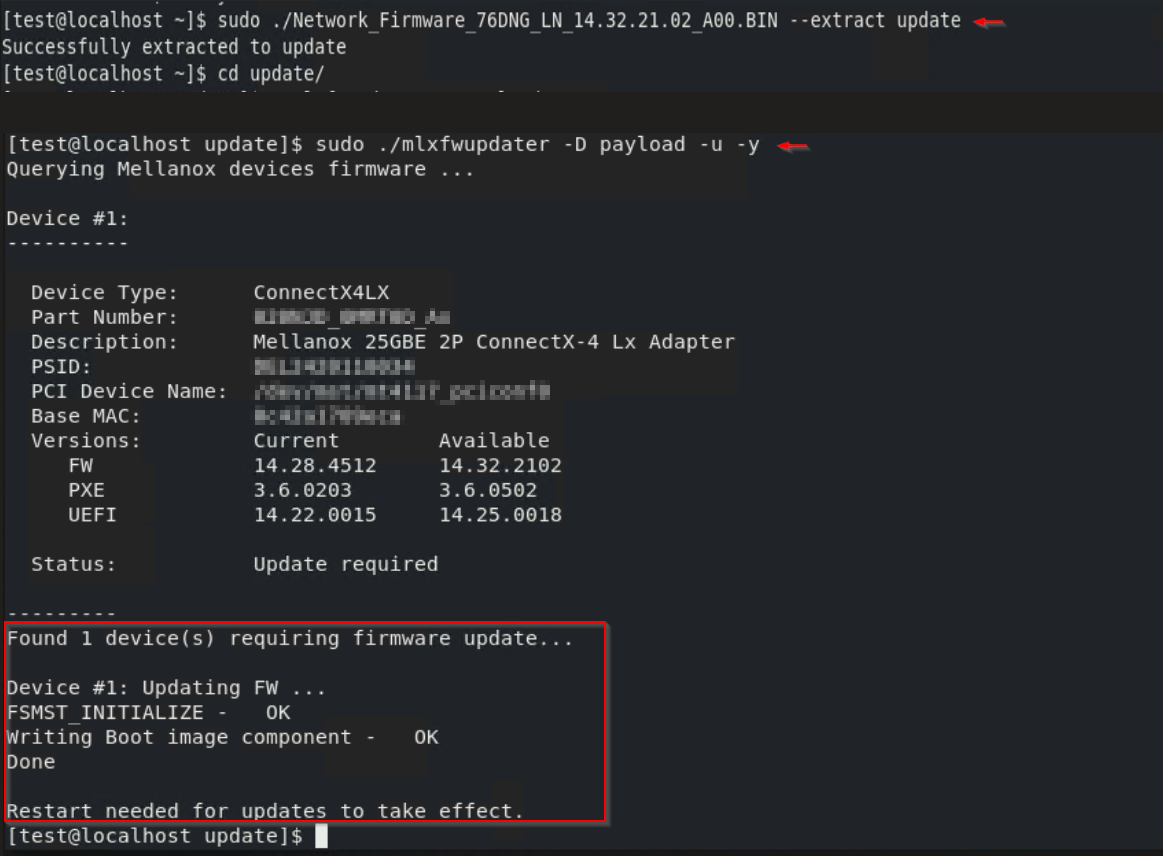

Step 1: ./NameOfDUP --extract <NameDirectoryToExtractTo i.e update>
Step 2: cd <DirectoryToExtractTo>./mlxfwupdater -D payload -u -y
那就是 ConnectX-4 LX。
如果相同系統中有兩個配接器，請執行下列步驟：
- 在解壓縮的目錄之間複製裝載韌體檔案
- 運行更新程式以將更新應用於所有適配器。
Prodotti interessati
Mellanox Family of Adapters, PowerEdge C4130, Poweredge C4140, PowerEdge c6300, PowerEdge c6320, PowerEdge c6320p, PowerEdge C6420, Poweredge FC430, Poweredge FC630, PowerEdge FC640Prodotti
Poweredge FC830, PowerEdge M630, PowerEdge M630 (for PE VRTX), PowerEdge M640, PowerEdge M640 (for PE VRTX), PowerEdge M830, PowerEdge M830 (for PE VRTX), PowerEdge MX740C, PowerEdge MX840C, PowerEdge R340, PowerEdge R430, PowerEdge R440
, PowerEdge R530, PowerEdge R540, PowerEdge R630, PowerEdge R640, PowerEdge R6415, PowerEdge R650, PowerEdge R660, PowerEdge R6615, PowerEdge R6625, PowerEdge R730, PowerEdge R730xd, PowerEdge R740, PowerEdge R740XD, PowerEdge R740XD2, PowerEdge R7415, PowerEdge R7425, PowerEdge R750, PowerEdge R7525, PowerEdge R760, PowerEdge R7615, PowerEdge R7625, PowerEdge R830, PowerEdge R840, PowerEdge R930, PowerEdge R940, PowerEdge R940xa, PowerEdge T430, PowerEdge T630, PowerEdge T640, PowerEdge XE7420, PowerEdge XE7440, PowerEdge XE8545, PowerEdge XR4520c
...
