Latitude 7410: Visual Guide to your Computer
Samenvatting: This article is a visual guide to the external ports and features of the Latitude 7410 and 7410 2-in-1 laptop.
Dit artikel is van toepassing op
Dit artikel is niet van toepassing op
Dit artikel is niet gebonden aan een specifiek product.
Niet alle productversies worden in dit artikel vermeld.
Symptomen
The following article provides a visual guide to your Latitude 7410 and 7410 2-in-1 Notebook Computer and lists the external ports and features of your PC.
Note: For a more detailed description about each location, go to the system manuals at www.dell.com/support
Table of Contents:
- Front View
- Top View
- Bottom View
- Left-Hand Side View
- Right-Hand Side View
- 2-in-1 Chassis Modes
- AC Adapter View
- Additional Info:
Front View
Note: The Latitude 7410 is available in both Notebook and 2-in-1 formats at point of sale.

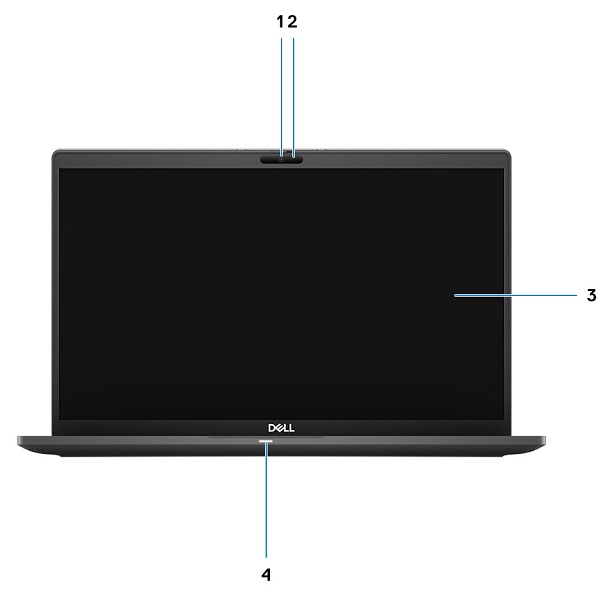

(Figure.1.1 Notebook Front View)
| 1 | RGB or Infrared (IR) Camera (Optional) | 2 | Camera Status LED |
| 3 | LCD Panel | 4 | Battery Status LED |

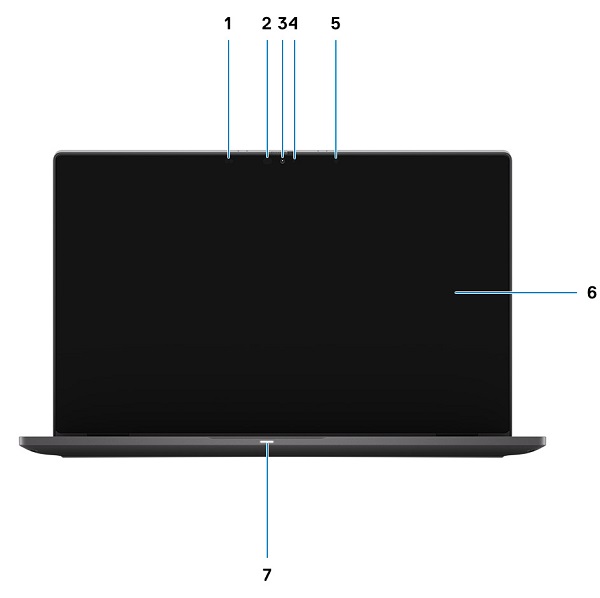

(Figure.1.2 2-in-1 Front View)
| 1 | Proximity Sensor | 2 | IR Emitter (Optional) |
| 3 | RGB or Infrared (IR) Camera (Optional) | 4 | Camera Status LED |
| 5 | Ambient Light Sensor (ALS) | 6 | LCD Panel |
| 7 | Battery Status LED |
Oorzaak
Not applicable
Oplossing
Top View

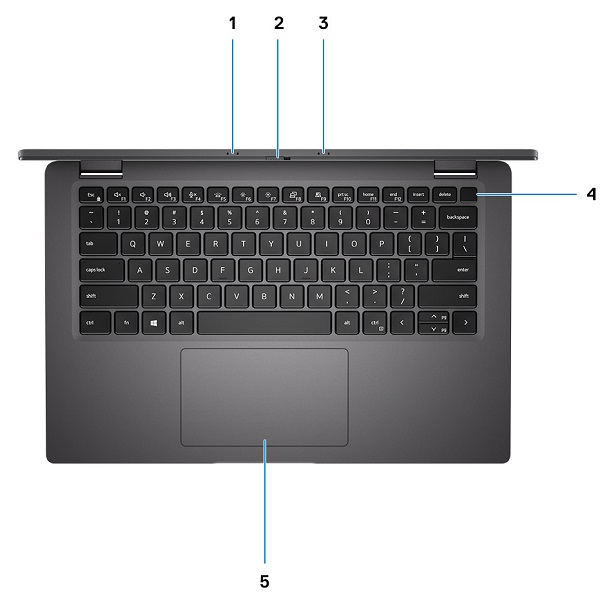

(Figure.2 Top View)
| 1 | Microphone Array | 2 | SafeView Switch |
| 3 | Microphone Array | 4 | Power Button w/Fingerprint Reader (Optional) |
| 5 | Touchpad |
Bottom View

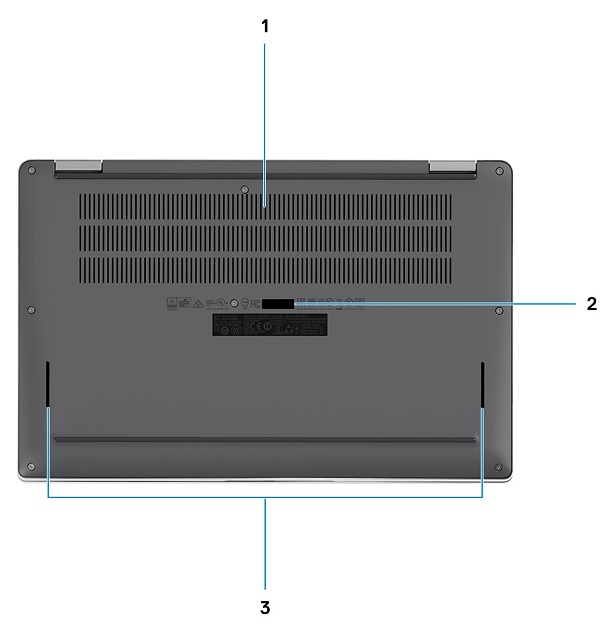

(Figure.3 Bottom View)
| 1 | Air Vents | 2 | Service Tag Location |
| 3 | Speaker Grills |
Left-Hand Side View

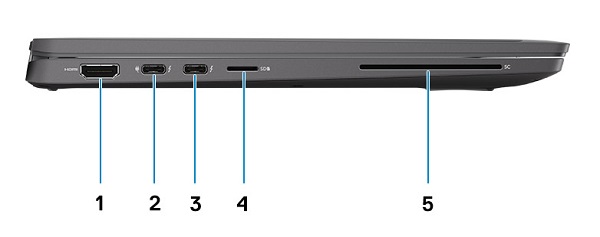

(Figure.4 Left-Hand Side View)
| 1 | HDMI 2.0 Connector | 2 | USB 3.2 Gen2 (USB Type-C) Connector w/DisplayPort (alt mode), Thunderbolt 3.0 w/PowerDelivery |
| 3 | USB 3.2 Gen2 (USB Type-C) Connector w/DisplayPort (alt mode), Thunderbolt 3.0 w/PowerDelivery | 4 | microSD Card Reader |
| 5 | SmartCard Reader (Optional) |
Right-Hand Side View

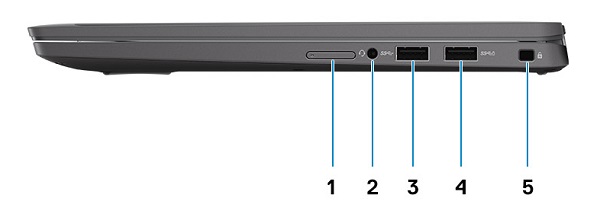

(Figure.5 Right-Hand Side View)
| 1 | SIM Card Slot (Optional w/WWAN configuration only) | 2 | Universal Audio Jack Connector |
| 3 | USB 3.2 Type-A Connector | 4 | USB 3.2 Type-A Connector w/PowerShare |
| 5 | Wedge-Shaped Security Slot |
Chassis Modes
This Applies to both the Notebook and 2-in-1 configurations:
(Figure.6.1 Chassis Mode Types)
These modes only apply to the 2-in-1 configuration:

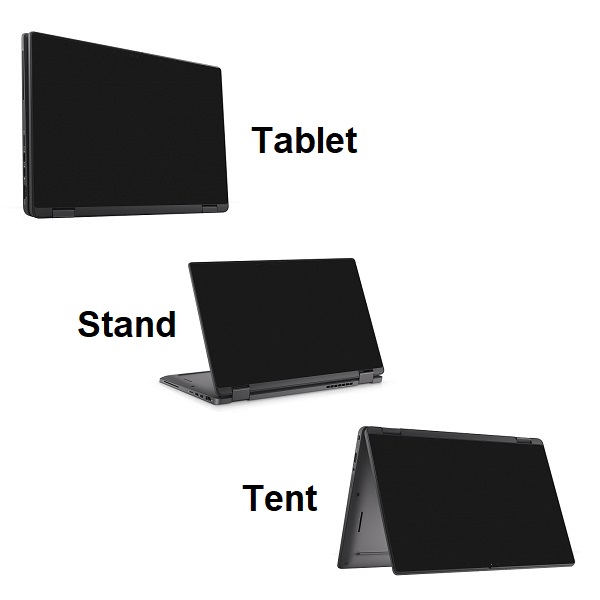

(Figure.6.2 Chassis Mode Types)
AC Adapter View
(Figure.7.1 65 W Type-C AC Adapter)
| Type 65 W Type-C | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 3.25 A (continuous) |
| Output Power | 65 W |
| Output Voltage/Current | 19.50 VDC |
(Figure.7.2 90 W Type-C AC Adapter)
| Type 90 W Type-C | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 4.5 A (continuous) |
| Output Power | 90 W |
| Output Voltage | 19.50 VDC |
Additional Info:
- Latitude 7410 Teardown/Removal guide for customer replaceable units (CRUs)
- Latitude 7410 online documents
