PowerEdge: Sådan finder du ud af, om iDRAC er tilgængelig

Samenvatting: Det er en almindelig misforståelse, at hvis en PowerEdge-server ikke kan starte, ikke fuldfører POST eller oplever andre problemer, vil iDRAC heller ikke være tilgængelig. I virkeligheden er iDRAC ofte stadig online og kan hjælpe dig med fejlfinding – også selvom den aldrig blev konfigureret på forhånd. Udnyttelse af iDRAC til at gennemgå nylige hændelser, analysere logfiler og indsamle en SupportAssist Collection (TSR) er afgørende for at fremskynde diagnosticering og gendannelse. ...

Dit artikel is van toepassing op Dit artikel is niet van toepassing op Dit artikel is niet gebonden aan een specifiek product. Niet alle productversies worden in dit artikel vermeld.
Bekijk andere hulpbronnen

Instructies

iDRAC administrerer LED-indikatoren for systemets tilstand (bruges også som systemidentifikations-LED) på PowerEdge-servere. Hvis LED'en er tændt, uanset farve, eller hvis den blinker, er iDRAC online og bør være tilgængelig.

Indholdsfortegnelse:

  1. Hvis serveren er tændt
  2. Hvis serveren er slukket
  3. Hvis serveren ikke tænder
  4. Eksempler på tal
  5. Næste trin for at få adgang til iDRAC



Bemærk: Når du kontrollerer LED-indikatoren for systemets tilstand:

    1. Kontroller både forsiden og bagsiden af serveren. Med alderen og brugen kan LED'erne blive svage og vanskelige at se i nogle miljøer.
    2. Selv når LED'erne tændes kortvarigt og derefter slukkes, betyder det stadig, at iDRAC er online, og at der bør gøres forsøg på at få adgang.



Hvis serveren er tændt:

Hvis serveren er tændt (tænd/sluk-knappens LED lyser konstant grønt), og iDRAC-adgang er nødvendig for at fejlfinde problemer såsom manglende videooutput, er processen ligetil. Kontroller LED-indikatoren for systemets tilstand på forsiden eller bagsiden af serveren:

  • Blå (konstant eller blinkende) eller ravgul (konstant eller blinkende) – iDRAC skal være tilgængelig.
  • Slukket – Kontroller den modsatte side af serveren for at sikre, at intet er afbrudt eller fejlbehæftet.



Hvis serveren er slukket:

 Hvis serveren er sund (blå LED) og slukket, slukkes systemets tilstands-LED muligvis efter et bestemt tidsrum. Udfør følgende for at teste:

  • Tryk på knappen Systemidentifikation (i) på forsiden eller bagsiden (hvis monteret) af serveren. Hvis LED'en begynder at blinke blåt, bør iDRAC være online og tilgængelig.
    • Se installations- og servicemanualen til dit specifikke produkt for at finde ud af, hvor denne knap er.



Hvis serveren ikke tænder:

Denne procedure hjælper med at afgøre, om iDRAC fungerer, selv når selve serveren ikke tænder, hvilket giver mulighed for diagnosticering og logindsamling. Det anbefales at udføre følgende trin:

  1. Sørg for, at strømforsyningens LED-indikatorer lyser konstant grønt med LED-indikatoren. Hvis ikke, er der sandsynligvis et strømproblem, såsom at blive tilsluttet det forkerte spændingskredsløb, offline UPS osv.
  2. Kobl alle strømkabler fra serveren, og vent 2-3 minutter for at sikre en fuld strømafladning.
  3. Sæt strømkablet eller kablerne i serveren igen.
  4. Bekræft, at hver LED-indikator for strømforsyning lyser konstant grønt, hvilket indikerer korrekt strømtilførsel.
  5. Vent ca. 2 minutter på, at iDRAC starter.
  6. Kontroller LED-indikatoren for systemets tilstand foran og bag på serveren. Hvis en af eller begge LED'er lyser (blåt eller gult), er iDRAC sandsynligvis online og tilgængelig. Nedenfor er en generel idé og kan variere afhængigt af servergeneration og model. Se installations- og servicevejledningen til dine specifikke modeller for at få flere oplysninger.
    1. Konstant blå – Systemet er sundt
    2. Lyser gult – Systemet er i fejlsikker tilstand
    3. Blinker ravgult – der er en fejl i systemet



Eksempler på tal:

Tal for systemer i sund tilstand (blå LED), men serverne er slukket.

  • Bemærk: Alle disse servere har en konstant blå sundheds-LED

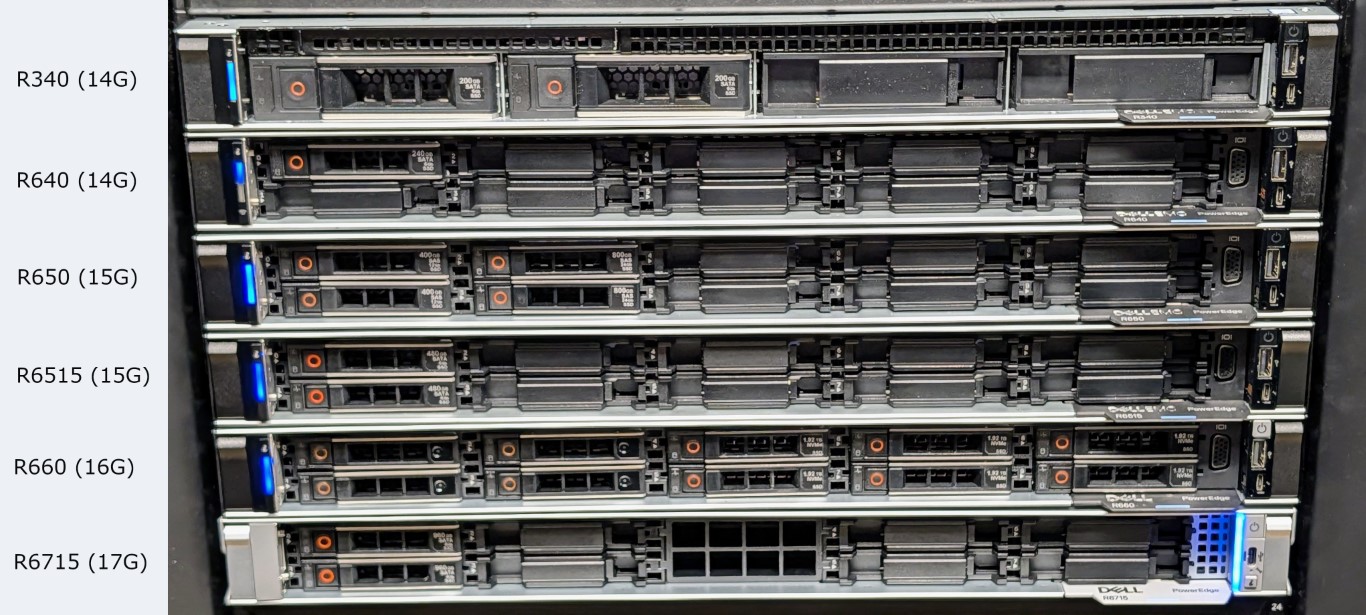

Forsiden af servere – tilstanden Sund (blå LED)

Bagsiden af serverne – Sunde tilstande (blå LED)

Tal for systemrapportering af fejl (simuleret ved at tage PSU2-strømkablet ud)

  • Bemærk: Alle servere viser en blinkende gul tilstands-LED undtagen R6715 (17G), som er konstant ravgul.

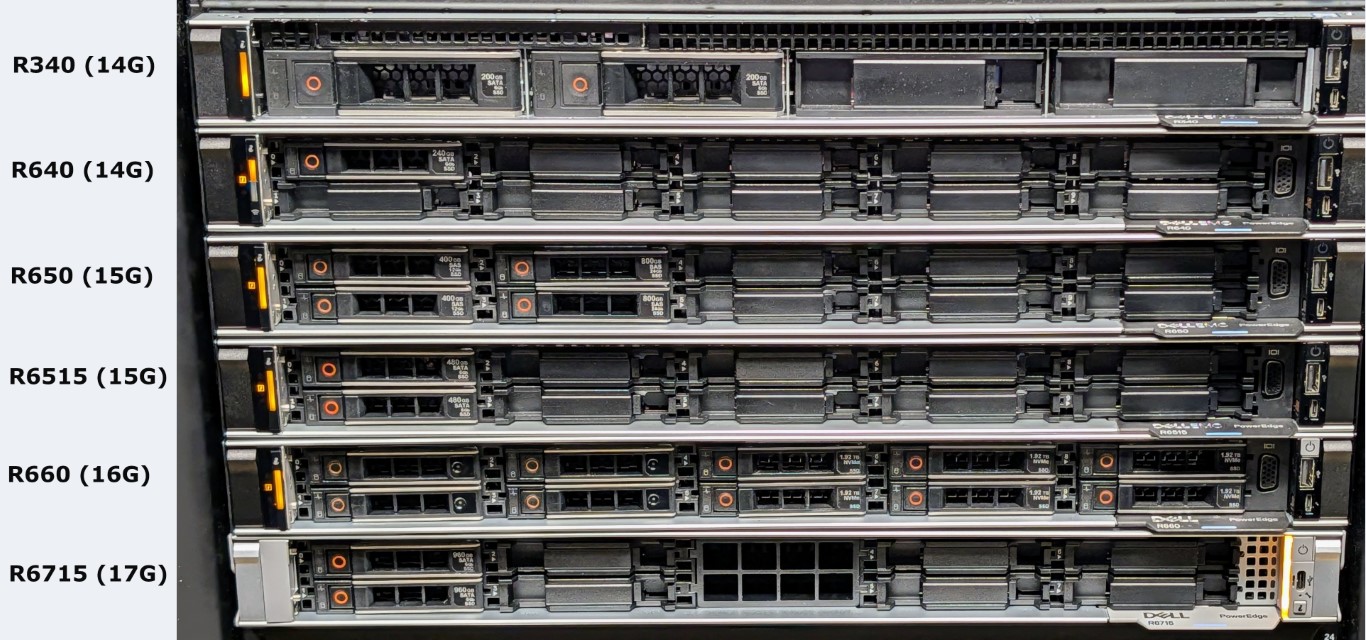

Forsiden af servere – fejltilstande (gul LED)

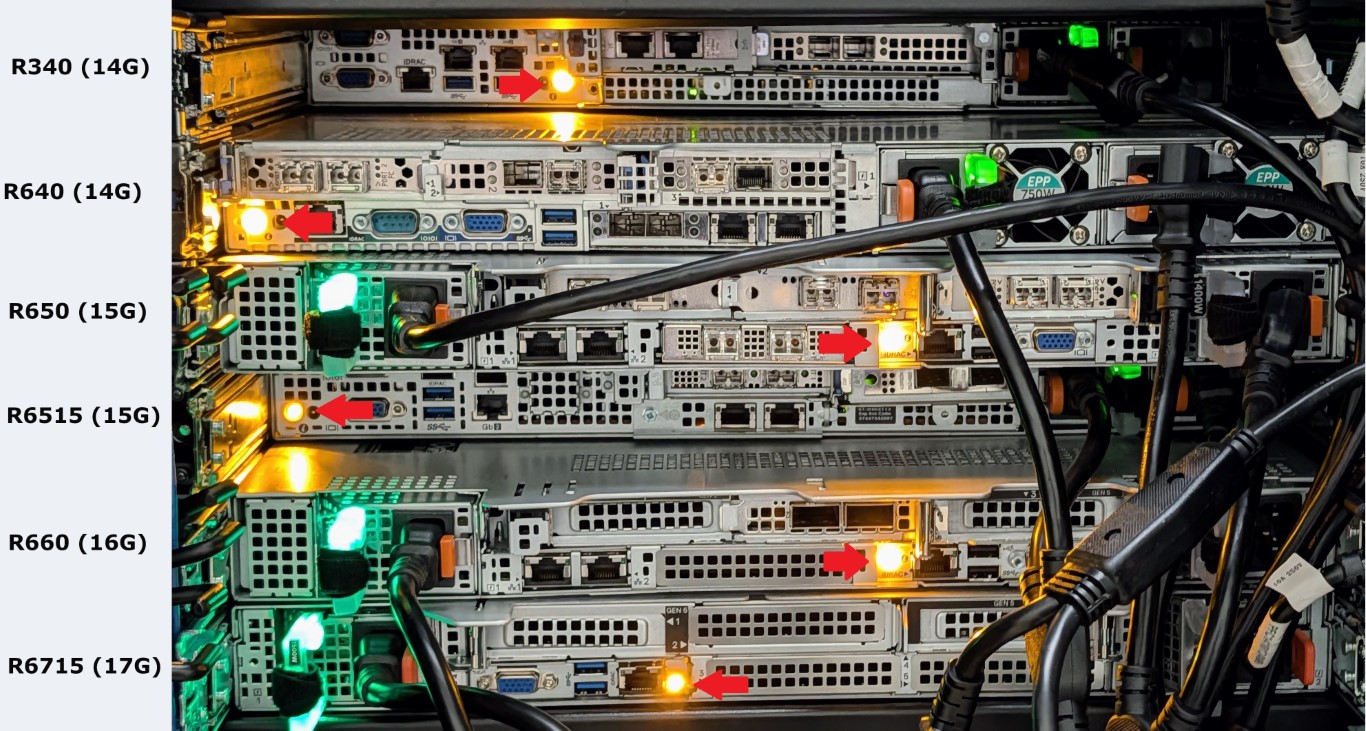

Bagsiden af servere – fejltilstande (gul LED)



Næste trin for at få adgang til iDRAC:

  1. Hvis iDRAC tidligere har været konfigureret:
    1. Bekræft, at dens netværksforbindelse (hvis den ikke deles med et andet netværkskort) er tilsluttet og viser aktivitet
    2. Få adgang til iDRAC ved hjælp af dens konfigurerede IP, og log på
  2. Hvis iDRAC ikke tidligere har været konfigureret, eller hvis den er lokal på serveren, kan iDRAC Direct bruges til at fremskynde adgangen til iDRAC for at indsamle en SupportAssist-indsamling (TSR) og gennemgå eventuelle problemer.
    1. KB: 000130077 – PowerEdge: Sådan bruger du iDRAC Direct-funktionen
