Hi Sam

I have an MD3800f with the same issue, I have connected the unit via a serial cable but i am unable to enter the serial interface mode for the controller

I am using tera term and on md32xx and md36xx when ### appears on screen i usually press ctrl + b and i am able to enter the boot operations menu to enable serial mode but this does not seem to work on the md38xx

Could you please assist me

Dave

Hello Dave,

Here are a few things that you can try to see if it lets you access the console.

1. Change the baud rate from 115200 to 9600.

2. Swap the controller slots or try the controller by itself.

3. Connect the serial cable to the other working storage controller and run these commands:

cmgrSetAltToOptimal

altCtlReset 2

resetController_MT 1

If that still doesn’t allow you to access the controller then you will need to have a recent Support Bundle of your MD so that we can look at to see what is going on.  Which lockdown error are you getting on your MD3800F?

Please let us know if you have any other questions.

I have same issue with Dell MD3860f storage array. I have attached serial cable and using putty to access console interface using 9600-8-1 setting. But when I send Ctrl-Break command, it gives me options for Service Interface (S) and baud rate change. When I goto service interface, I get only 3 options as shown below;

1) Display IP Configuration

2) Display Seven Segment Code

 Q) Quit Menu

How can I access the commandline where you mentioned to enter lemClearLockdwon command? Waiting for your response please.

Hello szsaifi,

When you are trying to clear any lockdown state you need to hit esc key to get into the alt menu. Now it will ask you for a shell user name and password. Dell doesn’t provide this password out to customer as you can do great harm to your system if you don’t do the steps in the correct order. It is best that when you are getting this lockdown error to contact support so that they can pull some logs from the system to ensure the best way to clear the lockdown error.

Please let us know if you have any other questions.

hi!!!

Today replace all disc in one MD3620i and when check de Storage Manager see a nice message with error 434 lockdown mode.

I have access via smcli to one interface, is possible clear the state via smcli commands?

Thx

Hello raprop,

No you can’t clear the lockdown using SMCLI.  The only way to clear the lockdown is via VXshell.  Normally when you have a lockdown on the controller it requires a call into support, so that we can reset the controller and ensure that the lockdown won’t return.

Before you replaced all your drives in your MD3620i, was there any disk groups or virtual disk that was created in MDSM?  If there was, then you will need to insert the old drives back into your MD3620i.  Once the drives are back in your MD3620i, then you will need to clear the virtual disk and disk group configuration.  Once all configuration has been removed then you should be able to replace the drives in your MD3620i without any issue as long as the drives are Dell MD drives.

Please let us know if you have any other questions.

Hi Sam!

I remove all vdisk/vgroup before remove and replace all disks. I have the old disks but i dont know the order of them.

Thx.

Hello raprop,

With the lockdown that you have you can try to insert the drives back in your MD3620i, and see if the system will boot.  If it doesn’t boot, then you will need to contact support so that a storage analyst can login to your controllers and clear the lockdown error.

Please let us know if you have any other questions.

Hey Sam!

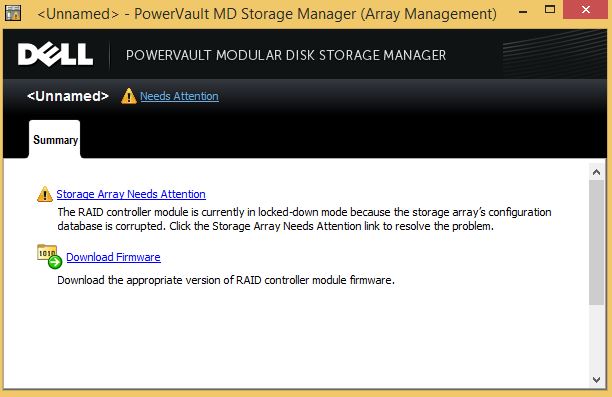

yesterday recover from lockdown controller 0, controller 1 never recovery. This controller hangup when boot and show db corrupted. Is possible recover/reset?

Thx
