UNSOLVED
Unity Vvole Configuration issues
Hi,
I have problem with this vvole configurations.

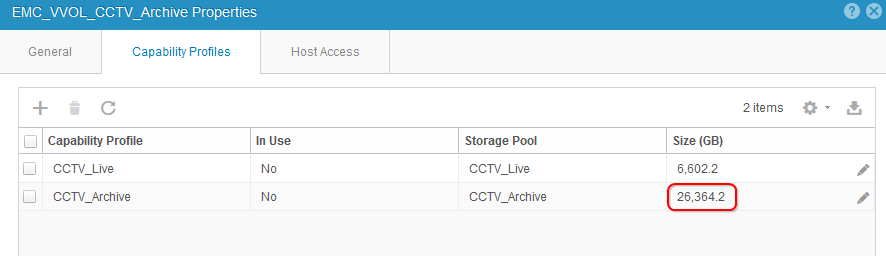

i created 32TB vmware datastore on my unity 300 box.after that i created 2 capability profiles.(26TB and
6TB).
After that i will tried to create new datastore on vcenter.i need to add 26TB capacity on my vmware but its showing 16TB only.
It has a limitation?
How can i mount Total capacity on my vcenter?
Thanks
1102
0
Posted August 21st, 2017 04:00
which VNX OE version ?
which VMware version ?
1102
0
Posted August 21st, 2017 06:00
Are you sure you are reading the VMware info correctly ?
I think the "Maximum Disk Size" means that 16TB is the max for a single vVol and NOT the size of the vVol data store.
Are you trying to create a VM with a disk larger than 16TB ?
1102
0
Posted August 21st, 2017 09:00
16TB is the max for a single vVol - not for the vVol data store
1102
0
Posted September 6th, 2017 09:00
any feedback ?
1102
0
Posted September 6th, 2017 21:00
Hi
Sorry for delay reply.
VM disk size 16TB its correct,but datastore cant cerate more than 16 TB.
But now we are using block storage for vmware.
Thanks
1102
0
Posted September 7th, 2017 01:00
data store larger than 16TB should work - upgrade to the latest Unity OE
1102
0
Posted September 28th, 2017 19:00
Its lates os.we upgraded it 4.2 os.
1102
0
Posted September 29th, 2017 01:00
if you still have an issue then please open a service request
keeban
1 Rookie
•
66 Posts
1102
0
Posted August 21st, 2017 04:00
HI Rainer
Thanks for reply
This not a VNX box its UNity 300
which Unity OE version ? 4.2.0.9433914
which VMware version ?6.5
Thanks
keerthi
