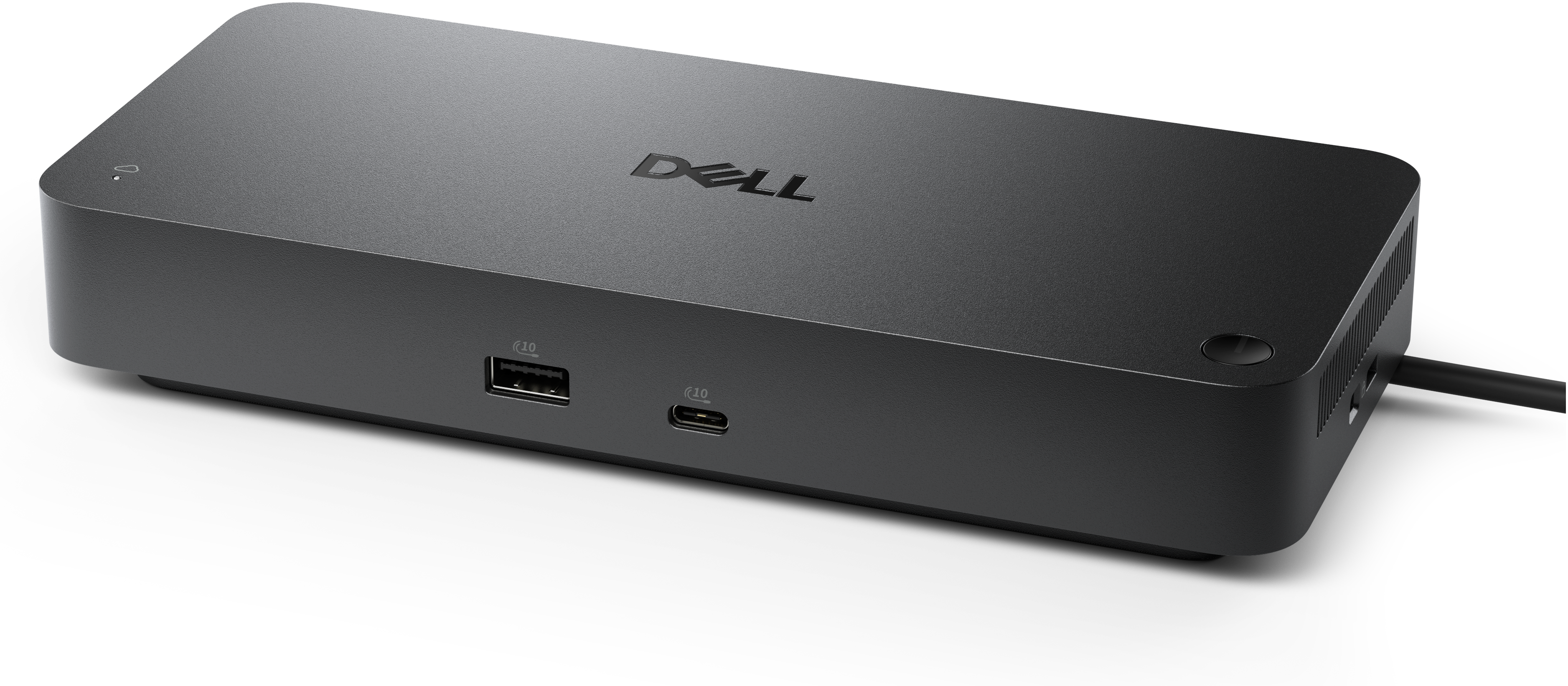

Dell Pro Thunderbolt 5 Smart Dock - SD25TB5

Name: Dell Pro Thunderbolt 5 Smart Dock - SD25TB5
Brand: Dell
SKU: 210-bsjb

Conquer intense workloads with versatile Thunderbolt 5 smart dock, delivering up to 300W of future-ready power and remote management capabilities.

Price includes GST and Free Delivery

Offers and Terms

Add to Cart

Manufacturer part R4K5F | Dell part 210-BSJB | Order Code ag-docksd25tb5 | Dell

Compare Compare

🔌

Power Delivery (Power Provided)

Up to 300W (Dell Systems)

Up to 240W (non-Dell Systems)

🎦

Video Resolution

3840 x 2160

3440 x 1440

3840 x 2160
3440 x 1440
2560 x 1440
5120 x 2160
6144 x 3456
7680 x 4320



Interfaces

2 x DP2.1

1 x HDMI 2.1

2 x DP2.1
1 x HDMI 2.1
1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1
2 x Thunderbolt 5
4 x USB-A 3.2 Gen 2 (10 Gbps)
1 x USB-C 3.2 Gen 2 (10 Gbps)



OS Required

Windows 10

Windows 11

Windows 10
Windows 11
Ubuntu 24.04
macOS
Red Hat Enterprise Linux 9.7
ChromeOS 141



Cables

83 cm



Features / Data Link Protocol

LED Power Indicator

Power Delivery Pass-through

Tech Specs

Technical Information

Connectivity Technology

Wired

Device Supported

Notebook

Cable Length

83 cm

Features

LED Power Indicator
Power Delivery Pass-through

Management Features

PXE Boot
Intel AMT over Thunderbolt with select Intel vPro PCs
Dock Power Button Sync
Kernel Direct Memory Access (DMA) Protection
Wake-on-LAN
WLAN to LAN Switch
MAC Address Pass-through
Port Disablement
Dell Command Update (DCU)

Number of Displays Supported

Screen Mode Supported

4K @ 60Hz
5K @ 60Hz
6K @ 60Hz
8K @ 60Hz
4K @ 120Hz
WQHD @ 60Hz
QHD @ 60Hz

Supported Resolutions

3840 x 2160
3440 x 1440
2560 x 1440
5120 x 2160
6144 x 3456
7680 x 4320

Maximum Data Transfer Rate

1.25 GB/s

Security Slot Type

Kensington Security Slot
Noble Wedge Security Slot

Power Delivery Details

4 x USB-A 3.2 Gen 2 (4.5W each)
1 x USB-C 3.2 Gen 2 (15W)
1 x USB-C Multi-function DisplayPort (7.5W)
2 x Thunderbolt 5 (15W each)
All deliver power with or without PC

Power Delivery

Up to 300W (Dell Systems)
Up to 240W (non-Dell Systems)

Video Resolution Details

WQHD - 60 Hz (Triple Display)
QHD - 60 Hz (Quad Display)
4K - 60 Hz (Dual Display)
5K - 60 Hz (Single Display)
4K - 60 Hz (Quad Display)
4K - 60 Hz (Triple Display)
6K - 60 Hz (Dual Display)
8K - 60 Hz (Single Display)
4K - 120 Hz (Quad Display)
4K - 120 Hz (Triple Display)

Network & Communication

Ethernet Technology

2.5 Gigabit Ethernet

Interfaces/Ports

Host Interface

Video interfaces

2 x DP2.1

1 x HDMI 2.1

1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1

2 x Thunderbolt 5

USB Ports (Data Only)

4 x USB-A 3.2 Gen 2 (10 Gbps)

1 x USB-C 3.2 Gen 2 (10 Gbps)

Total Number of USB Ports

Number of USB 3.2 Gen 2 Type-A Ports

Number of USB Type-A Ports

Number of USB Type-C Ports

USB Type-A

Yes

USB Type-C

Yes

USB Type-C Detail

1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1, 1 x USB-C 3.2 Gen 2 (10 Gbps)

Network (RJ-45)

Yes

Number of DisplayPorts

DisplayPort

Yes

DisplayPort Version

2.1

Number of HDMI Ports

HDMI

Yes

HDMI Version

2.1

Thunderbolt

Yes

Thunderbolt Ports Quantity

Software

Operating System Supported

Windows 10
Windows 11
Ubuntu 24.04
macOS
Red Hat Enterprise Linux 9.7
ChromeOS 141

Power Description

Maximum Power Supply Wattage

330 W

Power Source Type

Power Adapter

Physical Characteristics

Height

205 mm

Width

90 mm

Depth

35.3 mm

Weight (Approximate)

632 g

Miscellaneous

Package Contents

SD25TB5 Docking Station
Power Adapter
Power Cord
Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)

Kensington Security Slot

Yes

Warranty

Limited Warranty

3 Year

Additional Warranty Information

3-Year Limited Hardware Warranty with Advanced Exchange
Additional 4- & 5-year warranty optional
