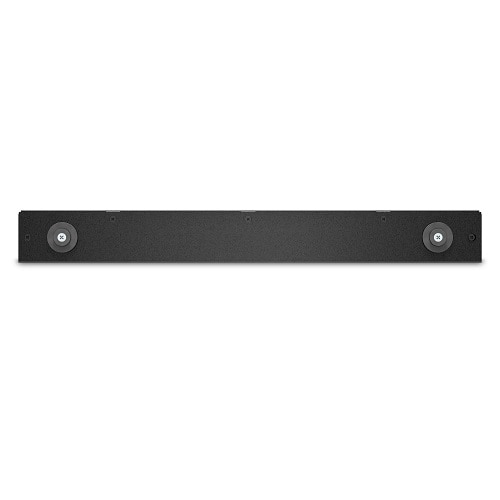

Rack PDU, Basic, 0U/1U, 208V, 8.6kW, (3) C19

Name: Rack PDU, Basic, 0U/1U, 208V, 8.6kW, (3) C19
Brand: APC
SKU: a8943945

Reliable rack power distribution

Information on repairability for Québec

Rack PDU, Basic, 0U/1U, 208V, 8.6kW, (3) C19 thumb 1

Rack PDU, Basic, 0U/1U, 208V, 8.6kW, (3) C19 thumb 2

Rack PDU, Basic, 0U/1U, 208V, 8.6kW, (3) C19 thumb 3

CAD $534.99

Add to Cart

Manufacturer part AP6037A | Dell part A8943945 | Order Code a8943945 | American Power Conversion

Compare Compare

Tech Specs

Technical Information

PDU Type

Basic

Plug/Connector Type

NEMA L15-30P

Plug/Connector Detail

1 x NEMA L15-30P

Receptacle Type

IEC 60320 C19

Receptacle Detail

3 x IEC 60320 C19

Protection Type

Overcurrent Protection

Power Description

Input Voltage

200 V
208 V

Output Voltage

230 V AC

Power Rating (Watt)

8.60 kW

Input Current

30 A

Physical Characteristics

Mount Type

Rack-mountable

Form Factor

Tower

Rack Height

Cord Length

12 ft (3.65 m)

Height

1.73" (44 mm)

Width

15.28" (388 mm)

Depth

4.96" (126 mm)

Weight (Approximate)

7.94 lb (3601.52 g)

Mounting Preference

No Preference

Mounting Orientation

Horizontal

Placement

Front

Miscellaneous

Package Contents

Basic Rack PDU AP6037A

Installation guide

Safety guide

Certifications & Standards

cUL Listed|UL Listed

Green Premium

Yes

Optimized Energy Efficiency

Yes

Product Take Back Program

REACH free of SVHC

Yes

Toxic Heavy Metal Free

Yes

Mercury Free

Yes

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)

For Country/Region

United States

WEEE Statement

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Warranty

Limited Warranty

2 Year

Additional Warranty Information

2 years repair or replace

General Information

Manufacturer

Schneider Electric SA

Manufacturer Part Number

AP6037A

Brand Name

APC by Schneider Electric

Product Series

Basic

Product Model

AP6037A

Product Name

Basic Rack PDU AP6037A

Product Type

PDU

Marketing Information

Reliable rack power distribution

Shop Similar Products

Reliable rack power distribution

PDU provides active metering enabling energy optimization and circuit protection
Basic PDU is the space-saving and cost-effective way to deliver power
With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
Electric power fitted to racks of computers and networking equipment within a data center
