Tripp Lite Rackmount Battery Pack Enclosure / DC Cabling for select UPS Systems - UPS battery - 2U

CAD $991.99
Get CAD $29 back in rewards Learn more
Add to Cart
Manufacturer part BP48V24-2U | Dell part A7088807 | Order Code a7088807 | TrippLite
Compare

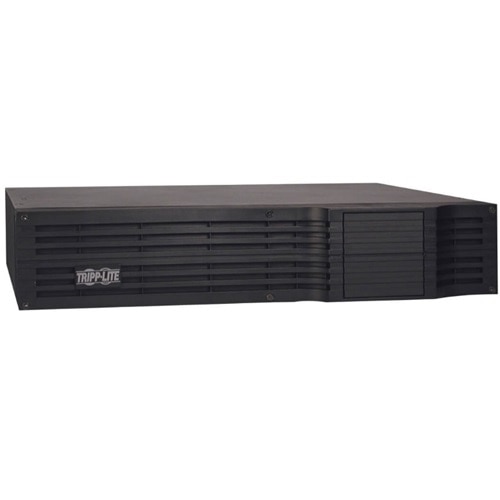

External 48V 2U Rack/Tower Battery Pack for Select Tripp Lite UPS Systems

Tripp Lite’s BP48V24-2U Rack/Tower External Battery Pack extends battery runtime of compatible 48V Tripp Lite rackmount and tower UPS systems. The BP48V24-2U includes heavy-gauge cabling with a high-current DC connector for safe, simple installation. The BP48V24-2U comes with mounting accessories that support 2U rackmount installation in 4-post racks. Optional accessories are available for 2-point front-rail mounting, 2-post center-mounting, wallmount and upright tower installation.
External 48V 2U Rack/Tower Battery Pack for Select Tripp Lite UPS Systems

Media

UPS Compatibility

The BP48V24-2U is compatible with the following expandable Tripp Lite UPS systems: SM2200RMDVTAA, SM2200RMXL2UTAA, SMART1500CRMXL, SMART2200CRMXL, SMART2200RMXL2U, SMART2200RMXL2UP, SMART2200RMXLN, SMART2200VSXL, SMART2600RM2U, SMART3000CRMXL, SMART3000RM2U, SMART3000RM2UN, SMART3000RMXL2U, SMART3000RMXLN, SMART3000VS, SMART5000RT3U, SMART5000XFMRXL, SMARTINT3000VS, SMX2200XLRT2U, SMX3000XLRT2U, SMX3000XLRT2UA, SMX5000XLRT3U, SU1500RTXL2UA, SU1500RTXLCD2U, SU1500XL, SU1500XLCD, SU2200RTXL2UA, SU2200RTXLCD2U, SU2200XLA, SU2200XLCD, SUINT1500RTXL2UA, SUINT2200RTXL2UA and any other Tripp Lite UPS system that specifies use of this battery pack.


Connect Two Battery Packs with Optional Splitter Cable


For applications where a second battery pack is needed, the BP48V24-2U allows for multi-pack compatibility when used with the 48VDCSPLITTER accessory (sold separately, check your UPS for compatibility).
2-Year Warranty and Environmentally Responsible Design

The
BP48V24-2U comes backed by a 2-year warranty (US and Canada) and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.


What’s in the Box
  • BP48V24-2U2U Rack/Tower 48V External Battery Pack with DC Cabling
  • 4-Post Compatible Rackmounting Hardware
  • Owner’s Manual
Tripp Lite BP48V24-2U Product Summary
  • Extends the runtime of compatible 48V Tripp Lite rack/tower UPS systems
  • Supports 2U rackmount installation; 4-post installation accessories included
  • Optional accessories (Tripp Lite 2POSTRMKITWM, 2-9USTAND and UPSHDEARKIT) available for 2-post rackmount, wall-mount, tower and 2-point front rail rackmount installations
  • 48VDCSPLITTER option (sold separately) enables the connection of two BP48V24-2U external battery packs
  • 2-year warranty (US and Canada); one-year (International)
Why Choose Tripp Lite?

Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect, house and protect your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosures, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.


BP48V24-2U rack/tower external battery pack offers extended battery runtime when used in conjunction with expandable 48V Tripp Lite rackmount and tower UPS systems. Includes heavy gauge cabling with high current DC connector for safe, simple installation. Included mounting accessories support 2U rackmount installation in 4 post racks. Options for 2-point front-rail mounting, 2 post center-mounting, wallmount and upright tower installation available.

Compatible with these UPS Systems - SM2200RMDVTAA, SM2200RMXL2UTAA, SMART1500CRMXL, SMART2200CRMXL, SMART2200RMXL2U, SMART2200RMXL2UP, SMART2200RMXLN, SMART2200VSXL, SMART2600RM2U, SMART3000CRMXL, SMART3000RM2U, SMART3000RM2UN, SMART3000RMXL2U, SMART3000RMXLN, SMART3000VS, SMART5000RT3U, SMART5000XFMRXL, SMARTINT3000VS, SMX2200XLRT2U, SMX3000XLRT2UA, SMX5000XLRT3U, SU1500RTXL2UA, SU1500RTXLCD2U, SU1500XL, SU1500XLCD, SU2200RTXL2UA, SU2200RTXLCD2U, SU2200XLA, SU2200XLCD, SUINT1500RTXL2UA, SUINT2200RTXL2UA and other Tripp Lite UPS systems that specify the use of this battery pack.

Quick Specs


Device Type
UPS battery
Rack Size
2U
Weight
28.6 kg
Battery Form Factor
Rack-mountable
Dimensions (WxDxH)
44.5 cm x 34.3 cm x 8.9 cm

General


Device Type
UPS battery
Battery Enclosure Type
Rack-mountable
Height (Rack Units)
2U

Battery


Voltage Provided
48 V

Miscellaneous


Cables Included
Power cable
Rack Mounting Kit
Included
Compliant Standards
UL, cUL, NOM, RoHS

Dimensions & Weight


Width
44.5 cm
Depth
34.3 cm
Height
8.9 cm
Weight
28.6 kg

Dimensions & Weight (Shipping)


Shipping Width
59.7 cm
Shipping Depth
47 cm
Shipping Height
18.4 cm
Shipping Weight
31.8 kg
