APC NetShelter 13U Wallmount Rack Cabinet Vented Door Double Hinged Server Depth

Name: APC NetShelter 13U Wallmount Rack Cabinet Vented Door Double Hinged Server Depth
Brand: APC
SKU: a7010504

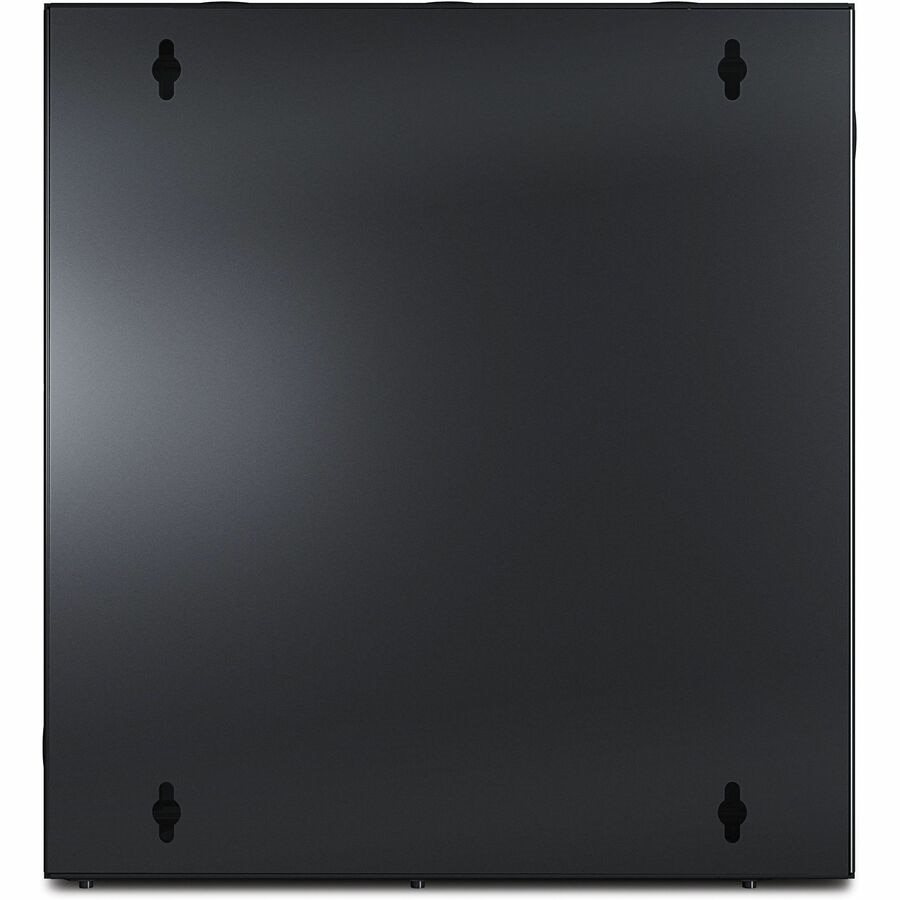

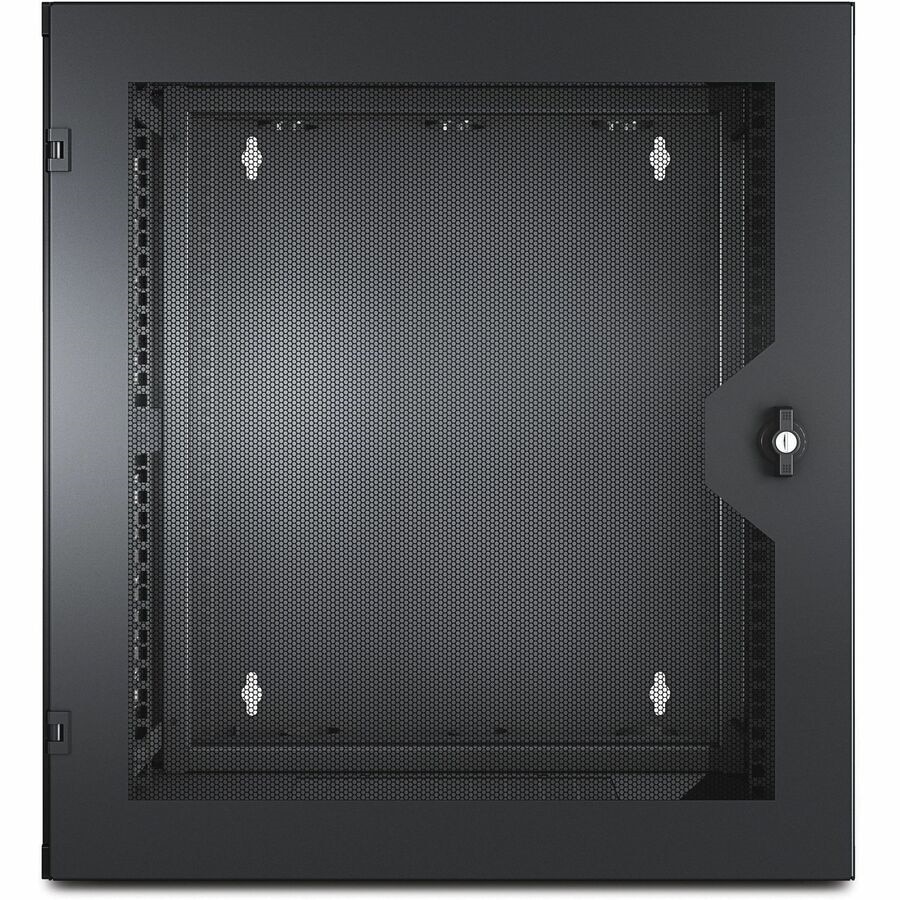

APC NetShelter 13U Wallmount Rack Cabinet Vented Door Double Hinged Server Depth thumb 1

APC NetShelter 13U Wallmount Rack Cabinet Vented Door Double Hinged Server Depth thumb 2

APC NetShelter 13U Wallmount Rack Cabinet Vented Door Double Hinged Server Depth thumb 3

$1,160.53

Temporarily Out of Stock

Financing Offers Learn More

Manufacturer part AR100HD | Dell part A7010504 | Order Code a7010504 | American Power Conversion

Compare Compare

Tech Specs

Technical Information

Front Rail

Yes

Application/Usage

Airflow System
Networking

Features

Adjustable Mounting Rails
Cable Management
Side-to-side Airflow

Mounting Preference

No Preference

Physical Characteristics

Form Factor

Wall Mountable

Color Family

Black

Product Color

Black

Product Material

Steel

Static/Stationary Weight Capacity

200.42 lb

Rail Material Gauge

Roof/Top Material Gauge

Side Panel Material Gauge

Height

26.1"

Width

23"

Depth

24.8"

Weight (Approximate)

94.20 lb

Rack Height

13U

Rack Width

19"

Miscellaneous

Package Contents

NetShelter WX 13U w/Threaded Hole Vertical Mounting Rail Vented Front Door Black
Key(s)
User Manual
Wall-Mounting Template

Compatibility

Side-to-Side Airflow

Certifications & Standards

Free of Substances of Very High Concern above the threshold

Assembly Required

Green Premium

Yes

Product Take Back Program

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)

REACH free of SVHC

For Country/Region

United States

WEEE Statement

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Warranty

Limited Warranty

5 Year

Additional Warranty Information

5 year repair or replace

General Information

Manufacturer

Schneider Electric SA

Manufacturer Part Number

AR100HD

Brand Name

APC by Schneider Electric

Product Line

NetShelter WX

Product Name

NetShelter WX 13U w/Threaded Hole Vertical Mounting Rail Vented Front Door Black

Marketing Information

Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack hinges at the rear allowing for access to the back of the rack during installation and setup or while undergoing maintenance. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top mounted and caster kit. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 13U Wall mount cabinet, 19 inches maximum mounting depth, 200lb weight capacity, 19"" rack width, ships fully assembled, vented door, 5 year APC warranty
