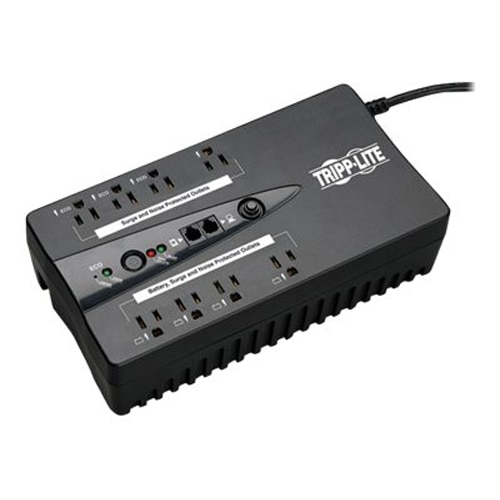

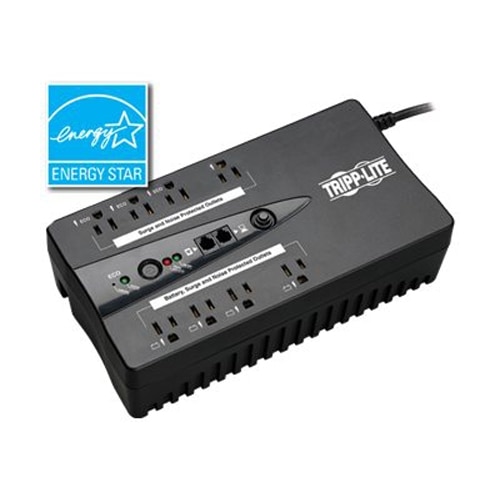

Tripp Lite by Eaton UPS 550VA 300W Standby UPS - 10 NEMA 5-15R Outlets 120V 50/60 Hz 5-15P Plug ENERGY STAR Desktop/Wall

Name: Tripp Lite by Eaton UPS 550VA 300W Standby UPS - 10 NEMA 5-15R Outlets 120V 50/60 Hz 5-15P Plug ENERGY STAR Desktop/Wall
Brand: Eaton
SKU: a7007709

Tripp Lite by Eaton UPS 550VA 300W Standby UPS - 10 NEMA 5-15R Outlets 120V 50/60 Hz 5-15P Plug ENERGY STAR Desktop/Wall thumb 1

Tripp Lite by Eaton UPS 550VA 300W Standby UPS - 10 NEMA 5-15R Outlets 120V 50/60 Hz 5-15P Plug ENERGY STAR Desktop/Wall thumb 2

Tripp Lite by Eaton UPS 550VA 300W Standby UPS - 10 NEMA 5-15R Outlets 120V 50/60 Hz 5-15P Plug ENERGY STAR Desktop/Wall thumb 3

Tripp Lite by Eaton UPS 550VA 300W Standby UPS - 10 NEMA 5-15R Outlets 120V 50/60 Hz 5-15P Plug ENERGY STAR Desktop/Wall thumb 4

$119.99

Limited Stock

Financing Offers Learn More

Add to Cart

Manufacturer part ECO550UPS | Dell part A7007709 | Order Code a7007709 | Eaton

Compare Compare

Tech Specs

Technical Information

Plug/Connector Type

NEMA 5-15P

Receptacle Type

NEMA 5-15R

Receptacle Detail

10 x NEMA 5-15R

Number of Surge-only Outlets

Dataline Protection

RJ-11

Protection Type

Brownout
EMI / RFI
Power Failure

Overload Protection

Yes

Cord Length

6 ft

Transfer Time

6 ms

Phase

Single Phase

Application/Usage

Computer Peripheral
Hospital
Retail

Power Description

Load Capacity (VA)

550 VA

Load Capacity (Watt)

300 W

Input Voltage

120 V AC

Output Voltage

110 V AC
115 V AC
120 V AC

Output Frequency

60 Hz

Waveform Type

Pure Sine Wave

Surge Energy Rating

316 J

Management

Alarm

Battery Fault
Low Battery
Overload

Controls/Indicators

Status Indicators

2 LED Indicator:

Line power
Battery power status

Main Power Switch Controls :

ON
OFF
SELF-TEST
ALARM CANCEL
Second switch enables "ECO" outlet switching

Interfaces/Ports

USB

Yes

USB (HID Compliant) Port

Yes

Battery Information

DC System Voltage

12 V DC

Battery Characteristics

Valve-regulated

Battery Chemistry

Lead Acid

Backup/Run Time (Full Load)

1.20 Minute

Backup/Run Time (Half Load)

5 Minute

Battery Life

6 Year

Typical Battery Recharge Time

6.50 Hour

Replaceable Battery

Yes

Environmental Conditions

Minimum Operating Temperature

32^°F (0^°C)

Maximum Operating Temperature

104^°F (40^°C)

Storage Temperature

5^°F (-15^°C) - 133^°F (56.1^°C)

Maximum Storage Elevation

6561 ft

Sound Emission

40 dB

Thermal Dissipation

1.17 W

Physical Characteristics

Color Family

Black

Product Color

Black

Height

4.13"

Width

4.33"

Depth

7.28"

Form Factor

Ultra-compact Desktop/Tower/Wall Mount

Weight (Approximate)

5.20 lb

Miscellaneous

Package Contents

ECO550UPS 550VA Ultra-compact Desktop/Tower/Wall Mount UPS

USB Cable

Owner's Manual

Additional Information

Keyhole mounting slots enable wall-mount installation
Compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications
Switches to battery power as line voltage decreases to 99 volts or less. Resets back to line power mode as line voltage increases to 104V or higher
Switches to battery power as line voltage increases to 139V or higher. Resets back to line power mode when line voltage decerases to 135V or lower
Basic desktop PCs for home/home-office use, network terminals, audio/video and home entertainment systems and other sensitive electronic devices
550VA / 300 watt UPS provides battery-derived AC output during brownouts and power failures to support entry-level desktop computer with 15 inch LCD monitor up to 17 minutes

Certifications & Standards

Tested to :

UL1778 (USA)
CSA (Canada)
NOM (Mexico)
Class B (EMI)
FCC Part 68 / Industry Canada (telecommunication)

Software Included

PowerAlert software available via free download

Recycled

Assembly Required

Energy Star

Yes

Country of Origin

China

Environmentally Friendly

Yes

Energy Efficiency Certification

ENERGY STAR 2.0

Environmental Compliance

Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year

Additional Warranty Information

2 year $100,000 connected equipment guarantee

General Information

Manufacturer

Eaton Corporation

Manufacturer Part Number

ECO550UPS

Brand Name

Tripp Lite series

Product Series

ECO

Product Model

ECO550UPS

Product Name

ECO550UPS 550VA Ultra-compact Desktop/Tower/Wall Mount UPS

Marketing Information

Ultra-high efficiency ECO Series UPS System saves energy by automatically powering off unused computer accessories when the computer is not in use. UPS system uses less electricity than conventional models. Design includes four battery-supported outlets for computer, monitor and two vital system peripherals, plus four additional surge suppression-only outlets for accessories not requiring battery support. Three of the surge-only outlets are designated Eco outlets that can be configured to automatically power off when the computer enters standby mode or is shutdown. USB port enables UPS configuration options and unattended system shutdown without data loss in the case of extended power failure. UPS system meets RoHS standards. 550VA/300-watt power handling ability supports entry-level PC systems for up to 17 minutes during power fail conditions.
