SonicWall TZ380W Network Security/Firewall Appliance

Name: SonicWall TZ380W Network Security/Firewall Appliance
Brand: SONICWALL
SKU: ad420010

Designed for small organizations and lean branches, the TZ 380 Series delivers industry-validated security effectiveness with best-in-class price-performance.

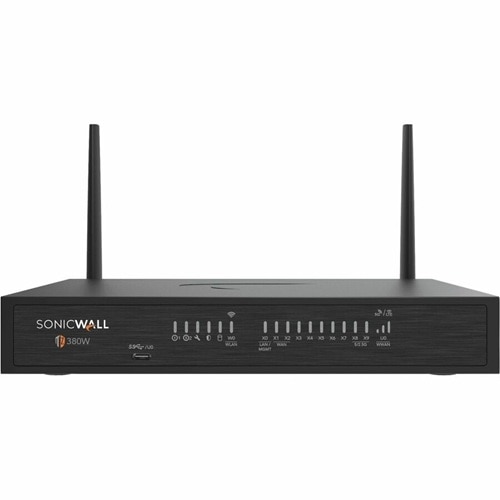

SonicWall TZ380W Network Security/Firewall Appliance thumb 1

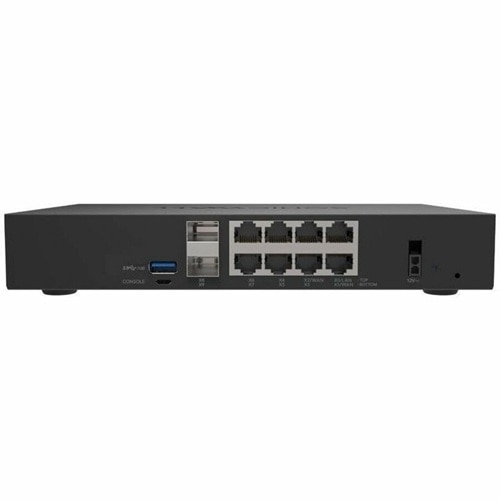

SonicWall TZ380W Network Security/Firewall Appliance thumb 2

$2,150.00

Financing Offers Learn More

Add to Cart

Manufacturer part 03-SSC-7445 | Dell part AD420010 | Order Code ad420010 | SonicWALL

Compare Compare

Tech Specs

General Information

Manufacturer

SonicWall Inc.

Manufacturer Part Number

03-SSC-7445

Brand Name

SonicWall

Product Series

Product Model

TZ380W

Product Name

TZ380W Network Security/Firewall Appliance

Product Type

Network Security/Firewall Appliance

Technical Information

Functionality

Intrusion Prevention

Firewall Protection Supported

Anti-spyware
Application Control
Content Filtering
Deep Inspection Firewall
Denial of Service (DoS)
Distributed Denial of Service (DDoS)
Gateway Antivirus
Intrusion Prevention
Malware Protection
Real-Time Deep Memory Inspection (RTDMI)
Reassembly-free Deep Packet Inspection
Secure IPsec VPN Connectivity
Signature-based Intrusion Prevention
SSL Decryption
SSL Inspection
Stateful Packet Filtering
Threat Protection
TLS Decryption
TLS Inspection
URL Filtering

Firewall Throughput

3.50 Gbit/s

Encryption Standard

AES (128-bit)
AES (192-bit)
AES (256-bit)
EAP-PEAP
EAP-TTLS
MD5
SHA-256
SHA-384
SSL
TLS
TLS 1.3
WPA
WPA2
WPA3

Number of VPN Supported

200

Data Link Protocols

HTTP
HTTPS
L2TP
PPTP
TCP/IP

Connectivity Technology

Wired/Wireless

New Connections Per Second

15000

AI-powered

Yes

Interfaces/Ports

Total Number of Ports

USB

Yes

Number of Network (RJ-45) Ports

Media & Performance

VPN Throughput

204.80 MB/s

IPS Throughput

256 MB/s

Network & Communication

Ethernet Technology

2.5 Gigabit Ethernet
5 Gigabit Ethernet
Gigabit Ethernet

Wireless Specifications

Wireless LAN

Yes

Wireless LAN Standard

IEEE 802.11a/b/g/n/ac/ax/i

Network Band

Dual Band

I/O Expansions

Total Number of Expansion Slots

Expansion Slot Type

SFP+

Number of SFP Slots

Number of SFP+ Slots

Management & Protocols

Manageable

Yes

Power Description

Frequency

50 Hz
60 Hz

Power Consumption

17.40 W

Physical Characteristics

Form Factor

Desktop

Height

1.4"

Width

7.5"

Depth

5.1"

Weight (Approximate)

1.87 lb

Miscellaneous

Application/Usage

Business
Enterprise
Network
Security

Certifications & Standards

FCC Class B
ICES Class B
CE (EMC, LVD)
UL
cUL
Mexico DGN Notice by UL,
ANATEL
SCIP
RCM
MIC Terminal & Radio
VCCI Class B
KCC/MSIP
BSMI
NCC SRRC
MTCTE/TEC
CB

Environmental Compliance

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Additional Information

Operating system - SonicOS 8

Interfaces - 8x1GbE, 2x 5/2.5/1G SFP+, 1 USB (type-C), 1 console (Micro-USB)

Wireless Support - 2x2 802.11ax (TZ 380W)

Storage /(expansion) - (Optional: Up to 512 GB)

Centralized Management - Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs

Logical VLAN and tunnel interfaces (maximum) - 128

SAML Single Sign-On (SSO) Users - 1,000

Access points supported (maximum) - 16

Firewall inspection throughput - 3.5 Gbps

Threat prevention throughput - 1.5 Gbps

Application inspection throughput - 2 Gbps

IPS throughput - 2 Gbps

Anti-malware inspection throughput - 2 Gbps

TLS/SSL inspection and decryption throughput - 600 Mbps

IPSEC VPN throughput - 1.6 Gbps

Connections per second - 15,000

Maximum connections (SPI) - 1,100,000

Maximum connections (DPI) - 250,000

Maximum connections (TLS) - 40,000

Site-to-site VPN tunnels - 200

IPSec VPN clients (maximum) - 5 (200)

SSL-VPN licenses (maximum) - 2 (100)

Encryption/authentication - AES (128, 192, 256-bit)/MD5, SHA-256, SHA-384, Suite B Cryptography

Key exchange: Diffie Hellman Groups 1, 2, 5, 14v

Route-based: VPN RIP, OSPF, BGP

Certificate support - Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP

VPN features - Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN

Global VPN client platforms supported - Microsoft® Windows 7, Windows 8, Windows 8.1 and Windows 10

NetExtender - Microsoft® Windows 10, Windows 10/11 and Linux

Mobile Connect - Apple® iOS, Mac OS X, Google® Android™ Chrome OS, Windows

IP address assignment - Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay

NAT modes - 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode

Routing protocols - BGP, OSPF, RIPv1/v2, static routes, policy-based routing

QoS - Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)

Authentication - LDAP (multiple domains), XAUTH/RADIUS,TACACS+, SAML SSO1, Radius accounting NTLM, internal user

database, 2FA, Terminal Services, Citrix, Common Access Card (CAC)

VoIP - Full H3230v1.5 SIP

Standards - TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3

Certifications - IPv6

High availability - Active/Standby with stateful synchronization

Power supply (W) - 60

Input power - 100-240 VAC, 50-60Hz

Total heat dissipation (BTU) - 46.95

WEEE weight (kg) - 1.18

MTBF @25oC in years - 46.4

Environment (Operating/Storage): 0^°C to +40^°C / -40^°C to +70^°C

Humidity - 5-95% non-condensing

Standards - 802.11a/b/g/n/ac/ax WPA,WPA2, WPA3, 802.11i, EAP-PEAP, EAP-TTLS

Frequency bands - 802.11a: 5.180-5.825 GHz; 802.11b/g: 2.412-2.472 GHz; 802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz; 802.11ac: 5.180-5.825 GHz, 802.11ax; 5.180-5.825 GHz

Warranty

Support/Service Duration

3 Year

Support/Service Type

Sec Upgrade Advanced Edition Bundle
