SonicWall TZ680 TOTALSECURE ADVANCED EDITION 1YR

Name: SonicWall TZ680 TOTALSECURE ADVANCED EDITION 1YR
Brand: SONICWALL
SKU: ad423281

Designed for mid-sized organizations and distributed enterprise with SD-Branch locations, the TZ 680 Series delivers industry-validated security effectiveness with best-in-class price-performance.

$4,445.00

Temporarily Out of Stock

Financing Offers Learn More

Manufacturer part 03-SSC-6998 | Dell part AD423281 | Order Code ad423281 | SonicWALL

Compare Compare

Tech Specs

General Information

Manufacturer

SonicWall Inc.

Manufacturer Part Number

03-SSC-6998

Brand Name

SonicWall

Product Series

Product Model

TZ680

Product Name

TZ680 Network Security/Firewall Appliance

Marketing Information

Designed for mid-sized organizations and distributed enterprise with SD-Branch locations, the TZ680 delivers industry-validated security effectiveness with best-in-class price-performance.

Product Type

Network Security/Firewall Appliance

Technical Information

Functionality

Intrusion Prevention

Firewall Protection Supported

Anti-spam
Anti-spyware
Application Control
Content Filtering
Deep Inspection Firewall
Denial of Service (DoS)
Distributed Denial of Service (DDoS)
Gateway Antivirus
Intrusion Detection
Intrusion Prevention
Malware Protection
Real-Time Deep Memory Inspection (RTDMI)
Reassembly-free Deep Packet Inspection
Secure IPsec VPN Connectivity
Signature-based Intrusion Prevention
SSL Decryption
SSL Inspection
Stateful Packet Filtering
Threat Protection
TLS Decryption
TLS Inspection
URL Filtering

Firewall Throughput

5 Gbit/s

Encryption Standard

AES (128-bit)
AES (192-bit)
AES (256-bit)
MD5
SHA-256
SHA-384
SSL
TLS
TLS 1.3

Number of VPN Supported

500

Data Link Protocols

HTTP
HTTPS
L2TP
PPTP
TCP/IP

Connectivity Technology

Wired

New Connections Per Second

26000

AI-powered

Yes

Interfaces/Ports

Total Number of Ports

USB

Yes

Number of Network (RJ-45) Ports

Media & Performance

VPN Throughput

320 MB/s

IPS Throughput

384 MB/s

Network & Communication

Ethernet Technology

10 Gigabit Ethernet
2.5 Gigabit Ethernet
5 Gigabit Ethernet
Gigabit Ethernet

I/O Expansions

Total Number of Expansion Slots

Expansion Slot Type

SFP+

Number of SFP Slots

Number of SFP+ Slots

Management & Protocols

Manageable

Yes

Power Description

Frequency

50 Hz
60 Hz

Power Consumption

16.99 W

Physical Characteristics

Form Factor

Desktop

Height

1.4"

Width

7.5"

Depth

5.1"

Weight (Approximate)

2.14 lb

Miscellaneous

Application/Usage

Business
Enterprise
Network
Security

Certifications & Standards

FCC Class B
ICES Class B
CE (EMC, LVD)
UL
cUL
Mexico DGN Notice by UL
ANATEL
SCIP
RCM
MIC Terminal
VCCI Class B
KCC/MSIP
BSMI
MTCTE/TEC
CB

Environmental Compliance

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Additional Information

Operating system - SonicOS 8

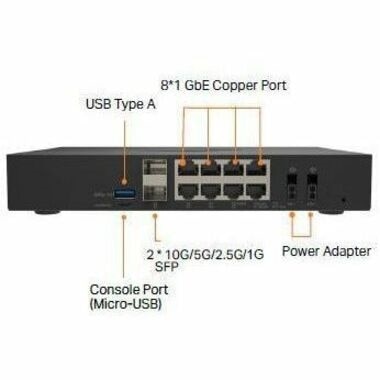

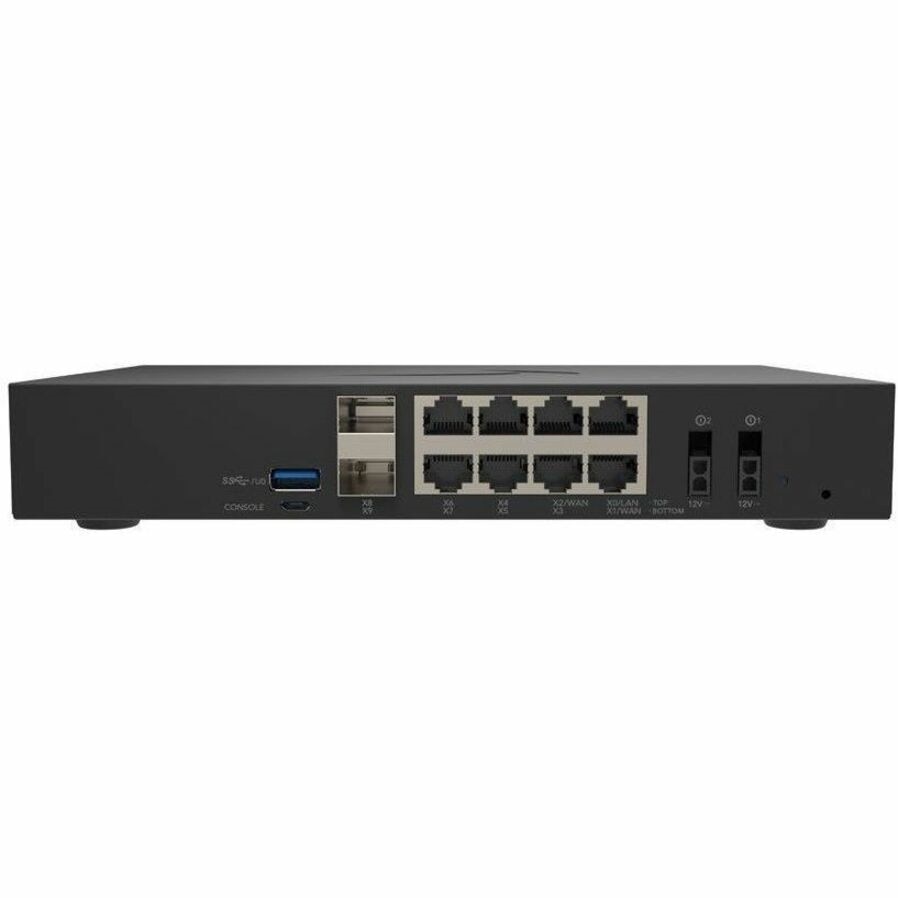

Interfaces - 8x1GbE, 2x 10/5/2.5/1G SFP+, 1 USB (type-C), 1 console (Micro-USB)

Storage /(expansion) - (Optional: Up to 512 GB)

Centralized Management - Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs

Logical VLAN and tunnel interfaces (maximum) - 256

SAML Single Sign-On (SSO) Users - 2,500

Access points supported (maximum) - 32

Firewall inspection throughput - 5 Gbps

Threat prevention throughput - 2.5 Gbps

Application inspection throughput - 3 Gbps

IPS throughput - 3 Gbps

Anti-malware inspection throughput - 2.5 Gbps

TLS/SSL inspection and decryption throughput - 800 Mbps

IPSEC VPN throughput - 2.5 Gbps

Connections per second - 26,000

Maximum connections (SPI) - 1,600,000

Maximum connections (DPI) - 600,000

Maximum connections (TLS) - 75,000

Site-to-site VPN tunnels - 250

IPSec VPN

Warranty

Support/Service Duration

1 Year

Support/Service Type

TOTALSECURE ADVANCED EDITION
