TrippLite 24-Outlets PDU2430 Single-Phase Basic 1-Units Horizontal Rackmount Power Distribution Unit

Name: TrippLite 24-Outlets PDU2430 Single-Phase Basic 1-Units Horizontal Rackmount Power Distribution Unit
Brand: Tripplite
SKU: a0132402

TrippLite 24-Outlets PDU2430 Single-Phase Basic 1-Units Horizontal Rackmount Power Distribution Unit thumb 1

TrippLite 24-Outlets PDU2430 Single-Phase Basic 1-Units Horizontal Rackmount Power Distribution Unit thumb 2

TrippLite 24-Outlets PDU2430 Single-Phase Basic 1-Units Horizontal Rackmount Power Distribution Unit thumb 3

$286.23

Limited Stock

Financing Offers Learn More

Add to Cart

Manufacturer part PDU2430 | Dell part A0132402 | Order Code a0132402 | TrippLite

Compare Compare

Dependable, Cost-Efficient, and Flexible Power Distribution Solution

If you need dependable power distribution that won't bust your budget, Tripp Lite's PDU2430 Single-Phase Basic Power Distribution Unit (PDU) is the economical choice for distributing and managing power to IT, industrial and similar high-density applications. With 24 5-15R outlets and a locking L5-30P plug, the PDU2430 offers flexible and reliable power distribution to components. The PDU2430 is configured for 1U rackmount installation with the included hardware and is also suitable for 0U vertical installation in the cable management area of many rack enclosures. Detachable mounting flanges enable the PDU2430 to be installed in a wide range of additional configurations. For peace of mind, the PDU2430 comes backed by a 5-year warranty and is designed according to strict RoHS specifications.

slide {0} of {1}, zoom in, Dependable, Cost-Efficient, and Flexible Power Distribution Solution

Flexible Outlet Array

The PDU2430 contains a total of 24 5-15R outlets—12 on the front and 12 on the rear of the unit. The PDU2430's reversible housing makes it easier to connect equipment to the PDU and also simplifies cord management—a key advantage in IT applications where cord clutter is a problem.

Constructed for Heavy-Duty Service

With a rugged, all-metal case, high-quality outlets and plugs, and a switchless design to prevent accidental shutoff, the PDU2430 is optimized for reliable service in demanding IT, industrial and commercial applications. The PDU2430 is furnished with its two 15-amp circuit breakers (one for each set of 12 outlets) to protect the PDU as well as the connected equipment against overloads and short circuits.

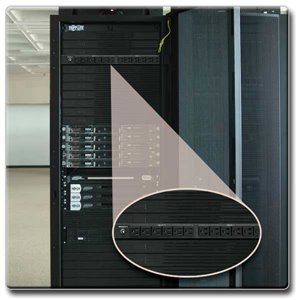

Optimized for Rackmount Installation

The PDU2430 easily mounts within standard 1U (horizontal) racks with the included hardware. It can also be configured for 0U (vertical) installation in the cable management area of many rack enclosures. In 0U configuration, the PDU2430 can help to promote efficient airflow through the rack by reducing cord clutter.

Multiple Installation Options

The PDU2430 is easy to integrate with a wide range of applications. Adjustable, detachable mounting flanges enable you to install the PDU2430 in many configurations: on a wall or workbench, under a counter and more. It also features a long 15-ft. power cord that reaches distant AC outlets with ease.

Constructed for Heavy-Duty Service

The PDU2430 is optimized for reliable service in demanding IT, industrial and commercial applications with a rugged all-metal case, high-quality outlets and plugs, and a switchless design to prevent accidental shutoff. Two resettable 15A circuit breakers protect the PDU and connected equipment from damage due to power overloads and short circuits.

5-year Product Warranty and Environmentally Responsible Design

The PDU2430 comes with a 5-year warranty. As part of Tripp Lite's commitment to environmental responsibility, it is manufactured in compliance with strict RoHS specifications.

Tripp Lite's PDU2430 Power Distribution Unit Offers:

30-amp PDU with 24 outlets
Rugged all-metal housing with detachable mounting flanges
Switchless design prevents accidental shutoff
Configurable for 1U rackmount (horizontal) or 0U (vertical) installation
5-year warranty

Why Choose Tripp Lite?

Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, protect, manage, house, cool, connect and mount your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.

The 24-Outlet PDU2430 AC Power Distribution Unit from Tripp Lite offers 24 A, 120 V capacity in a versatile multi-mount cabinet. It is equipped with detachable mounting flanges which are configurable for wallmount, under-counter or 1U/0U rackmount installation. It uses only 1 rack space (1U) when installed in any 19-inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in potential mounting schemes. Attractive housing with 12 front-facing and 12 rear-facing outlets measures only 2.75 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDU2430 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. This PDU includes 24 NEMA5-15R outlets, 12 ft AC power cord, two 15-amp circuit breakers, grounding lug and a rugged all-metal case design.

Tech Specs

General

Device Type

Power distribution unit - rack-mountable

Height (Rack Units)

Color

Black

Power Device

Input Voltage

AC 120 V

Frequency Required

50/60 Hz

Input Connectors

1 x power NEMA L5-30

Power Output Connectors Details

24 x power NEMA 5-15

Max Electric Current

30 A

Power Capacity

2.9 kW

Miscellaneous

Cables Included

Power cable - integrated - 15 ft

Rack Mounting Kit

Optional

Compliant Standards

UL, cUL

Manufacturer Warranty

Service & Support

Limited warranty - 5 years

Dimensions & Weight

Width

17.2 in

Depth

2.8 in

Height

1.7 in
