Wavlink WL-UG75PD1-4D2 Quad 4K 120Hz Universal Dock / For Windows and Mac M1/M2/M3/M4
Quad Display Support: 3x DisplayPort 1.4 Ports with support for 4K 120Hz and 1x DisplayPort 1.4 Port w/ DSC for 4K 144Hz. Dual 8K 60Hz is also supported.
WL-UG75PD1-4D2 Quad 4K 120Hz Universal Dock / For Windows and Mac M1/M2/M3/M4
Product Type
Docking Station
Technical Information
Connectivity Technology
Wired
Charging Capability
Yes
Device Supported
Notebook
Smartphone
Tablet
Memory Card Reader
Yes
Memory Card Supported
microSD
SD
Features
Power Delivery Pass-through
Number of Displays Supported
4
Screen Mode Supported
4K @ 120Hz
4K @ 144Hz
8K @ 60Hz
Supported Resolutions
3840 x 2160
7680 x 4320
Maximum Data Transfer Rate
1.25 GB/s
Security Slot Type
Kensington Security Slot
Network & Communication
Ethernet Technology
2.5 Gigabit Ethernet
Interfaces/Ports
Host Interface
USB Type C
Total Number of USB Ports
6
Number of USB 3.0 Ports
3
USB Type-A
Yes
Number of USB Type-A Ports
3
USB Type-C
Yes
USB Type-C Detail
2 x USB Type-C (10Gbps) ports,1 x USB Type-C 30W Charging
Number of USB Type-C Ports
3
Network (RJ-45)
Yes
DisplayPort
Yes
Number of DisplayPorts
4
DisplayPort Version
1.4
Headphone/Microphone Combo Port
Yes
USB Power Delivery
100W
Software
Operating System Supported
ChromeOS
Mac OS X 11.x Big Sur
Mac OS X 13.x Ventura
Windows 10
Windows 11
Power Description
Maximum Power Supply Wattage
160 W
Physical Characteristics
Weight (Approximate)
3.54 lb
Miscellaneous
Kensington Security Slot
Yes
Compatibility
Compatible Products:
MacBook Pro/Air (Intel/M1/M2/M3)
Dell XPS 13/15/ 9380/559
Dell Latitude 3500/ 7490/ 5500/ 5490
Lenovo Yoga c740/ 5 Pro/ 720/730
Lenovo Thinkpad-X1/T480/X390/T490s
HP Spectre 13/ x369/ x360
HP Envy geforce mx250/x360
Microsoft Surface Book 2, 3
Microsoft Surface Pro 7, 7+, 8, X
Asus Ling Yao 3/ X/ U306/U321 Series
Asus Zenbook flip ux370u
Brand Compatibility
Apple
Asus
Dell
HP
Lenovo
Microsoft
Country of Origin
China
Shop Similar Products
Quad Display Support: 3x DisplayPort 1.4 Ports with support for 4K 120Hz and 1x DisplayPort 1.4 Port w/ DSC for 4K 144Hz. Dual 8K 60Hz is also supported.

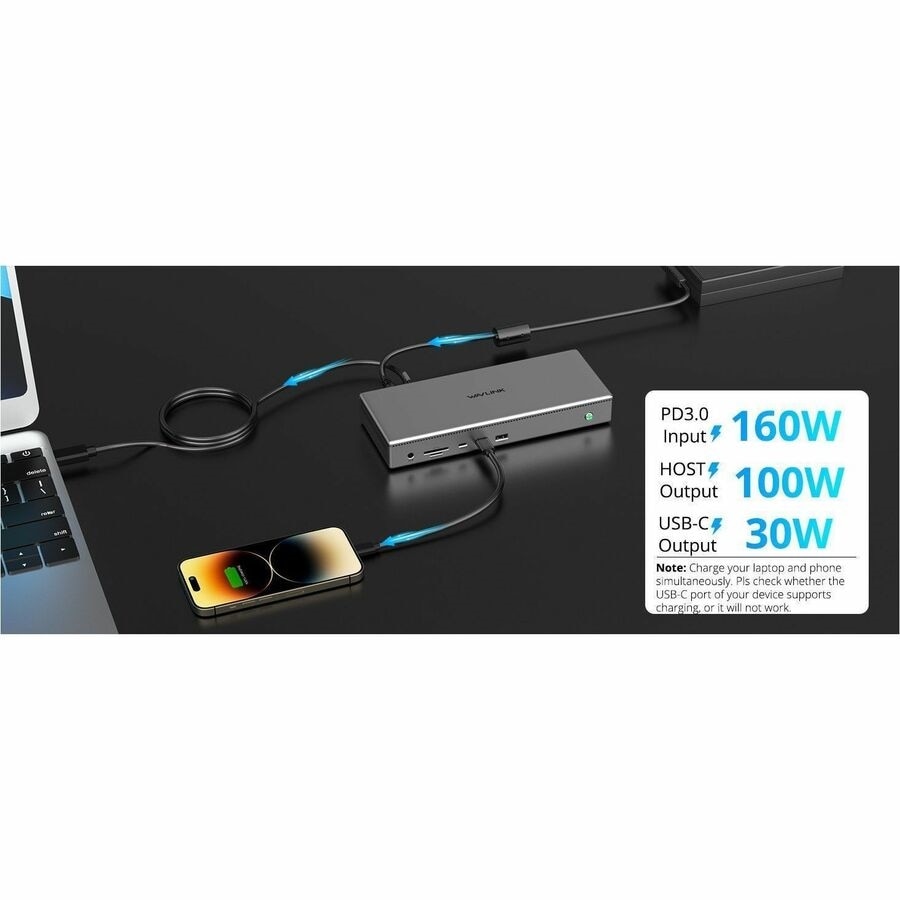

High-Speed USB Charging: Delivers up to 100W USB-C Power Delivery (PD) to charge your laptop efficiently.

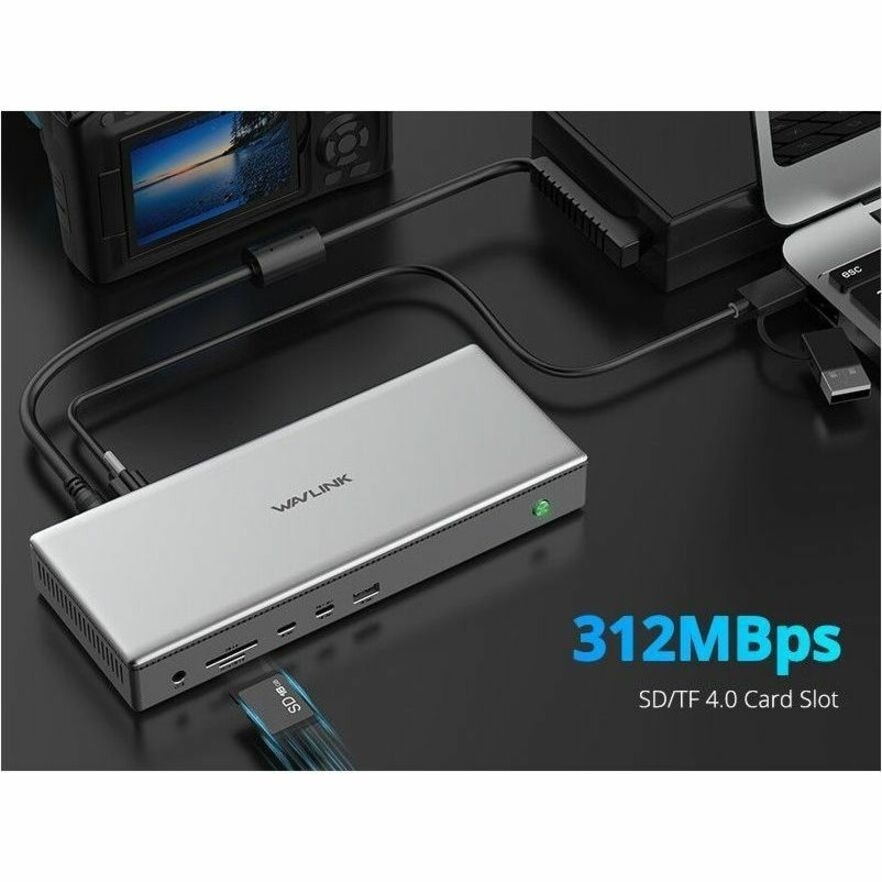

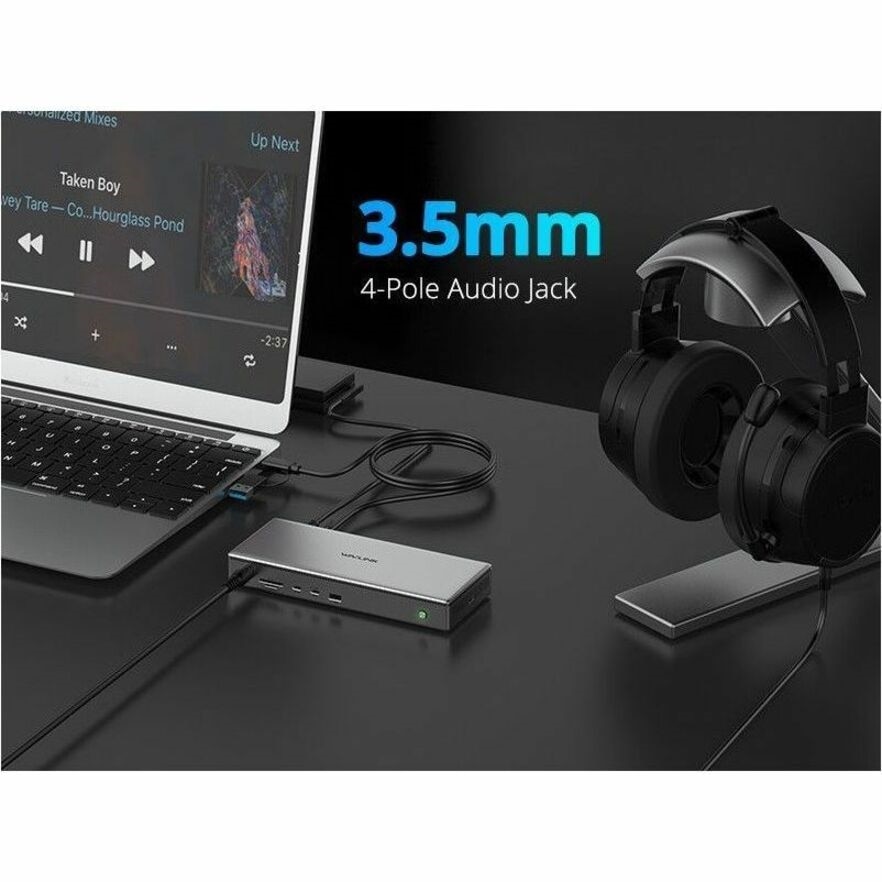

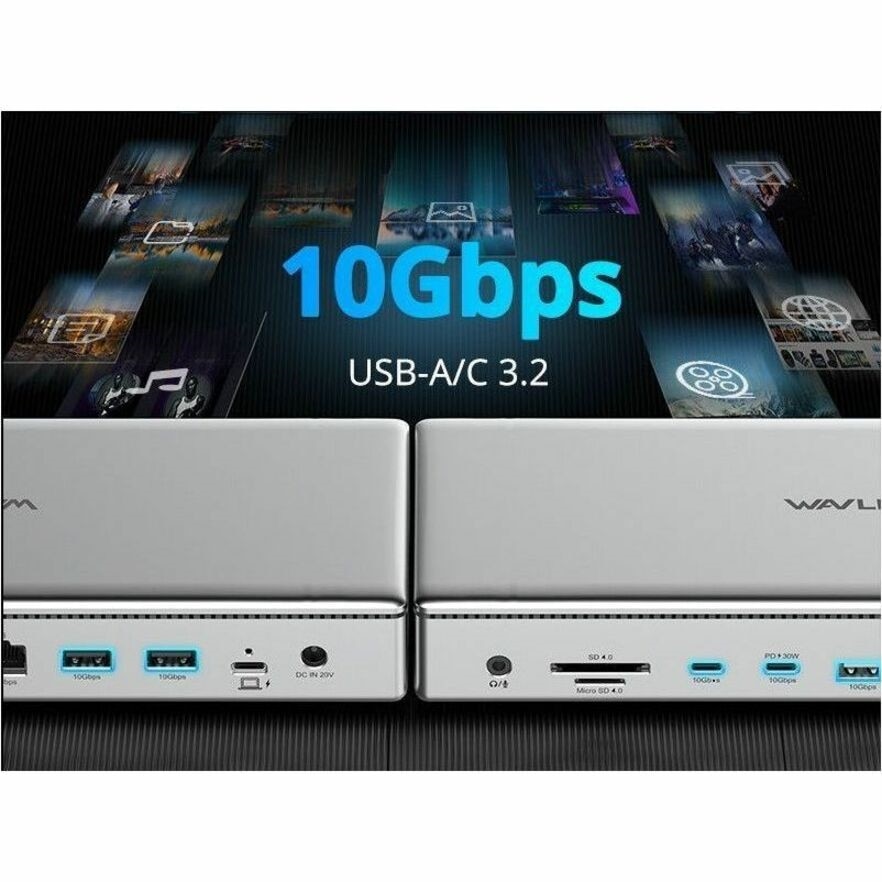

Expansive USB Connectivity: Includes Three USB 3.0 Type-A ports (10Gbps), plus two USB Type-C (10Gbps) ports, one with 30W Charging(Ideal for phones and tablets), SD Card/Micro SD and Combo Audio 3.5mm are also included.

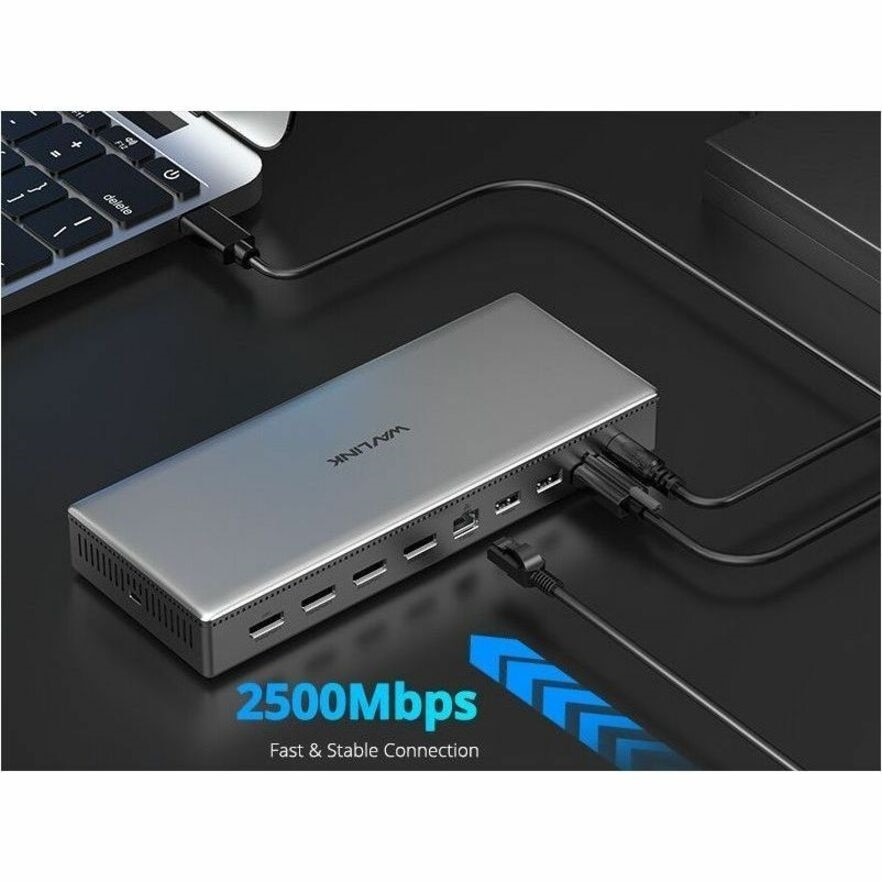

Reliable Internet: Integrated 2.5 Gigabit Ethernet LAN port (RJ45) provides stable, high-speed network access up to 2.5 Gbps.

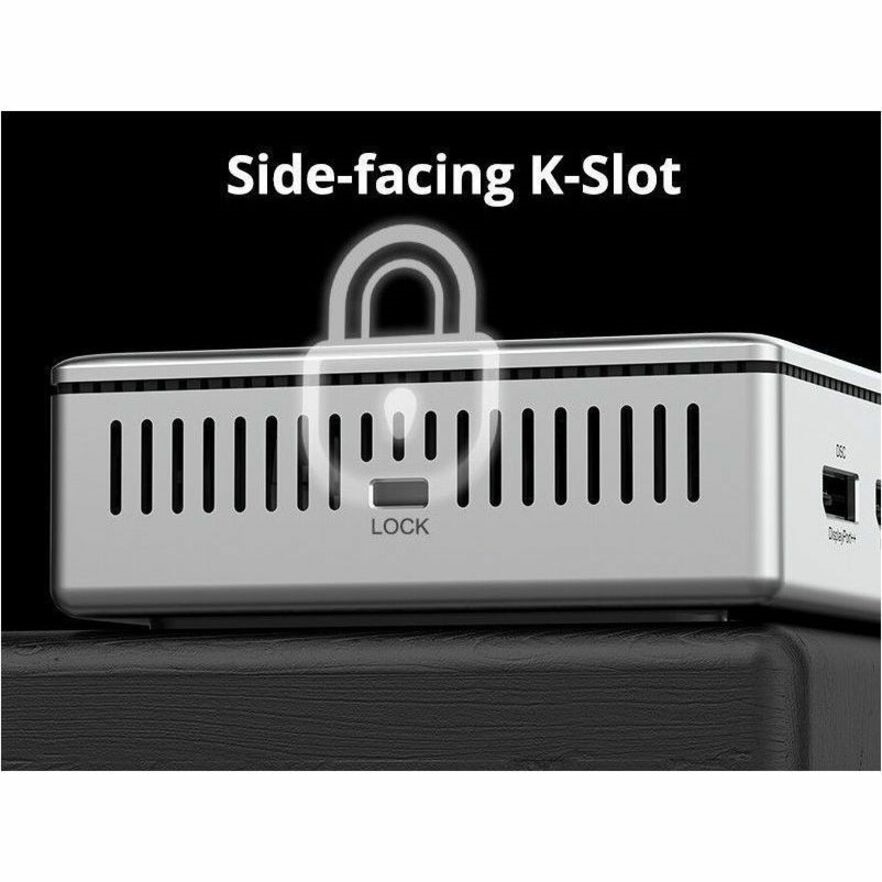

Secure Your Device: Supports Kensington lock security to protect your docking station and connected devices.
Compatibility: Powered by the latest DisplayLink DL7400 Chip, the USB C dock is compatible with Windows 10/11 or later, and macOS 11+ systems with USB4, Thunderbolt 4, Thunderbolt 3, and USB-C; macOS requires installation of DisplayLink Drivers. Note: HDCP not supported (HDCP - will not playback encrypted or copy-protected content)
