Precision 3930 Rack Workstation

Tech Specs

• Processor


  Intel^® Xeon® E-2288G (8 Core HT 3.7Ghz, 5.0GHz Turbo,16MB)
  Intel^® Xeon® E-2286G (6 Core HT 4.0Ghz, 4.9GHz Turbo,8MB)
  Intel® Xeon® E-2278G (8 Core HT 3.5Ghz, 5.0GHz Turbo,16MB)
  Intel^® Xeon® E-2276G (6 Core HT 3.8Ghz, 4.9GHz Turbo,8MB)
  Intel^® Xeon® E-2246G (6 Core HT 3.6GHz, 4.8Ghz Turbo, 8MB)
  Intel^® Xeon® E-2234 (4 Core HT 3.6Ghz, 4.8Ghz Turbo, 8MB)
  Intel^® Xeon® E-2226G (6 Core 3.4Ghz, 4.7Ghz Turbo, 8MB)
  Intel^® Xeon® E-2224G (4 Core 3.5GHz, 4.7Ghz Turbo, 8MB)

  Intel^® Core™ i9-9900K (8 Core, 16M cache, base 3.6GHz, up to 5.0GHz)
  Intel^® Core™ i9-9900 (8 Core, 16M cache, base 3.1GHz, up to 4.9GHz)
  Intel^® Core™ i7-9700K (8 Core, 12M cache, base 3.6GHz, up to 4.9GHz)
  Intel^® Core™ i7-9700 (8 Core, 12M cache, base 3.0GHz, up to 4.8GHz)
  Intel^® Core™ i5-9600K (6 Core, 9M cache, base 3.7GHz, up to 4.6GHz)
  Intel^® Core™ i5-9600 (6 Core, 9M cache, base 3.1GHz, up to 4.6GHz)
  Intel^® Core™ i5-9500 (6 Core, 9M cache, base 3.0GHz, up to 4.4GHz)
  Intel^® Core™ i3-9100 (4 Core, 6M cache, base 3.6GHz, up to 4.2GHz)

• Operating System
  (Dell Technologies recommends Windows 11 Pro for business)

  Windows 10 Pro 64 bit
  Windows 10 Pro for Workstations 64 bit
  Windows 10 Home 64 bit (Offline only)
  Ubuntu 18.04 LTS 64-bit
  RedHat 7.5

• Graphics Card

  NVIDIA^® Quadro RTX 4000 with 8GB DDR5
  NVIDIA^® Quadro RTX 5000 with 16GB DDR5
  NVIDIA^® Quadro RTX 6000 with 24GB DDR5

• Memory *

  32 GB, 2x16 GB, DDR4, 2666 MHz, Non-ECC SDRAM
  32 GB, 2x16 GB, DDR4, 2666 MHz, ECCSDRAM
  64 GB, 2x32 GB, DDR4, 2666 MHz, Non-ECCSDRAM
  64 GB, 2x32 GB, DDR4, 2666 MHz, ECCSDRAM
  128 GB, 4x32 GB, DDR4, 2666 MHz, Non-ECCSDRAM
  128 GB, 4x32 GB, DDR4, 2666 MHz, ECCSDRAM

• Storage

  500GB 2.5" 7mm SATA (7,200rpm) SED Hard Drive
  256GB M.2 PCIe SSD SED OPAL Class 40
  512GB M.2 PCIe SSD SED OPAL Class 40
  2TB, 2.5" 7mm SATA SMR (5,400 RPM) Hard Drive
  1TB, 2.5" 7mm SATA (7,200 RPM) Hard Drive
  500GB 3.5" SATA (7,200rpm) Hard Drive
  2TB 3.5" SATA (7,200 RPM) Hard Drive
  2TB 3.5" SATA (7,200 RPM) Hard Drive (Enterprise drive)
  4TB 3.5" SATA (7,200 RPM) Hard Drive (Enterprise drive)
  8TB 3.5" SATA (7,200 RPM) Hard Drive (Enterprise drive)
  256GB 2.5" 7mm SATA SSD Class 20
  512GB 2.5" 7mm SATA SSD Class 20
  1TB 2.5" 7mm SATA SSD Class 20
  512GB M.2 PCIe SSD Class 50
  1TB M.2 PCIe SSD Class 50
  2TB M.2 PCIe SSD Class 40
  Hard Drive acceleration with M.2 Intel® Optane™ Memory 32GB

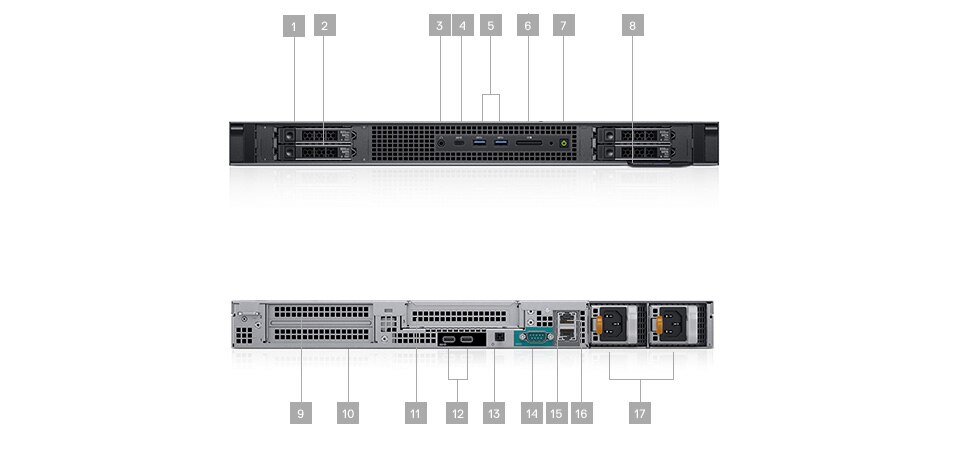

• Ports

  Front
  1 Universal Audio Jack
  1 USB 3.1, Type C
  2 USB 3.1, Type A
  1 SD Card Reader

  Internal
  1 USB 3.1, Type A (supports USB storage key)

  Rear
  2 USB 3.1, Type C/iGFX Display Port
  1 Remote Power Switch connector
  1 Serial port
  1 1G RJ-45 Ethernet
  1 10G RJ-45 Ethernet

• Optical Drive

  Optional External USB Optical drive

• Slots

  1 PCIe x 16 full height/full length slots or 2 PCIe x 8 full height/full length slots (full length with 2.5” drives) with Riser 1A or 1 PCI 32 bit full height/full length with Riser 1B

  1 PCI x 4 full height/3/4th length slot on all chassis

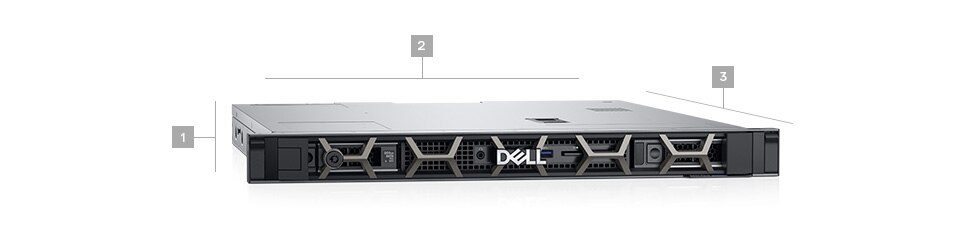

• Dimensions & Weight

  Height: 1.68 in. (42.8 mm)
  Width: 18.98 in. (482 mm)
  Depth with Bezel: 23.19 in. (589.1 mm)
  Depth without Bezel: 22.74 in. (577.6 mm)
  Weight: 19.27 lbs. (8.74 kg)

• Power

  Power Supply
  Base: 550W Power Supply
  Optional: Additional hot-pluggable Redundant 550W Power Supply (80PLUS Platinum certified)

• Regulatory

  Energy Star® configurations available including 80 PLUS® registered Gold power supplies; EPEAT® registered (see epeat.net for specific registration rating/status by country); China CECP; GS Mark. For a complete listing of declarations & certifications, see Dell’s regulatory & compliance homepage at dell.com/regulatory_compliance
