cooling, power distribution, and cable management products work seamlessly with IT enclosures to provide a complete infrastructure support system. NetShelter SX enclosures are optimized for use with high capacity cable management systems that attach to equipment mounting rails inside enclosures aligning with equipment mounting u-spaces and provide channels for routing and managing cabling.
Large cable access slots in the roof provides access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor. Roof includes openings with brush strips pre-installed in locations biased towards the front of the enclosure to allow for data cable passthrough and provisions for air containment.

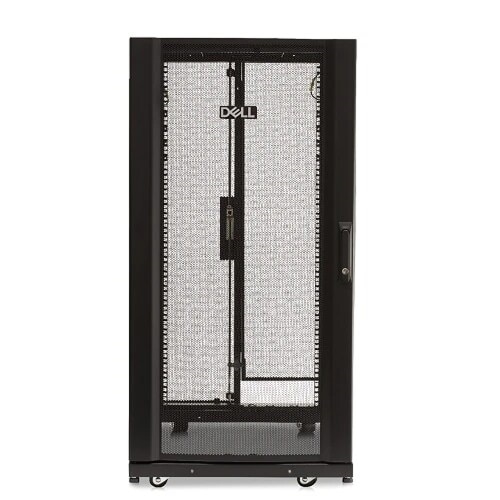

Perforated front and rear doors provide ample ventilation for servers and networking equipment. Front door perforated area is optimized with a curved profile to provide greater surface area and allowance of more perforation coverage and higher perforation rating.
Roof can be removed with simple pull-pin hinges for access during equipment installation or even with cabling already in place and routed through the cable openings. Once removed the roof is reversible to reposition the larger cable openings for power distribution plugs and connectors.
Integrated eyebolt holes at the top of the enclosure frame allow the enclosure to be lifted for movement and enclosure placement using eyebolt lifting mechanisms.
Equipment mounting rails include zero U mounting holes beside the EIA 19-inchmounting space that allow the installation of Data Distribution Cable (DDC) patch systems without taking up any critical equipment U-space. AV and Networking enclosure designs do not include hole locations for integration of DDC cabling.
Split rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help
Tekniske spesifikasjoner og tilpasning
Rack-castersett, racknivelleringsføtter, sidepaneler, frontdør, justerbare loddrette monteringsskinner, tak, nøkler, delt perforert bakdør
Justerbar dybde, integrert kabelstyring
EIA-310-D, EIA-310-E, UL 60950, RoHS, REACH, China RoHS
Service og støtte
Begrenset garanti - 5 år
Drivere, brukerhåndbøker og kundestøtte
Dells produktstøtte gir deg tilgang til alt du trenger – fra drivere og håndbøker til diagnoseverktøy og erstatningsdeler.
