PowerEdge: UEFI Error in POST, HWC8010 or HWC8011

Résumé: HWC8010 or HWC8011 UEFI errors in POST for iDRAC Hardware Configuration Validation typically occur due to firmware updates or the addition or removal of hardware components. Review system logs and investigate any recent changes before applying this solution. ...

Cet article concerne Cet article ne concerne pas Cet article n’est associé à aucun produit spécifique. Toutes les versions du produit ne sont pas identifiées dans cet article.
Consulter d’autres ressources

Symptômes

  • HWC8010 or HWC8011 UEFI errors appear during POST, related to iDRAC Hardware Configuration Validation.
  • The system is unable to boot and displays the HWC8010 error code.
  • The error occurs after a firmware update or after adding or removing hardware components.
  • The error persists after rebooting the system.

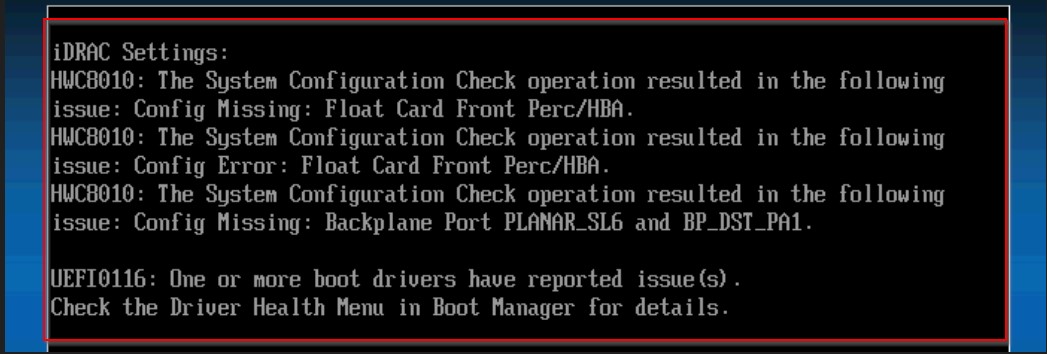

Screenshot of POST error displaying the HWC8010 UEFI error code for iDRAC Hardware Configuration Validation



Cause

  • Changes in the system's hardware or firmware configuration primarily cause the HWC8010 or HWC8011 UEFI error.
  • External factors such as environmental conditions or user actions can also contribute. For example, an interrupted firmware update or unauthorized hardware modifications can trigger the error.
  • Related HWC8010 or HWC8011 entries are recorded in the system event log and can help identify the cause.
  • The error frequently results from a firmware update alone, with no hardware changes made to the system.

Résolution

  1. Review the system logs to identify any recent firmware updates, hardware changes, or chassis openings.
  2. If a firmware update was initiated prior to the error, reboot to F2 > iDRAC Settings > Hardware Configuration Validation and change the option to Yes to accept the current configuration as valid, select Save and Exit.
  3. If the issue persists, contact Dell Support for further assistance.

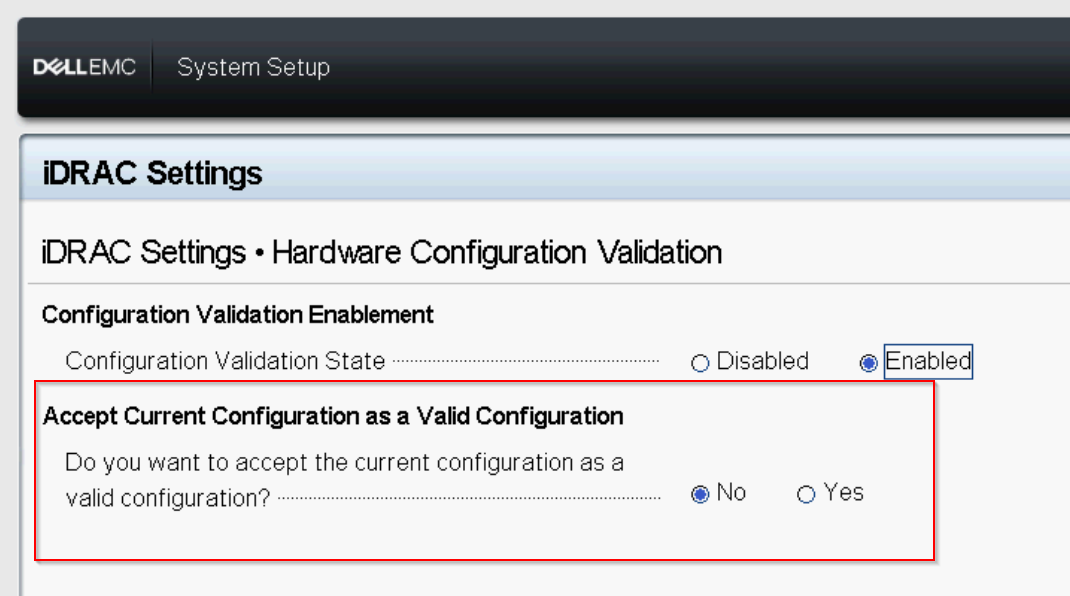

BIOS F2 setup screen showing iDRAC Settings with the Hardware Configuration Validation option



UEFI Error HWC8010 or HWC8011 on POST

Duration: 0:43 (hh:mm:ss)
When available, closed caption (subtitles) language settings can be chosen using the CC icon on this video player.
