Connectrix Brocade B-Series: SANnav: How to apply TruFOS certificate to Brocade switch from SANNav GUI.
Summary: Connectrix Brocade B-Series: SANnav: How to apply TruFOS certificate to Brocade switch from SANNav GUI.
Article Content
Instructions

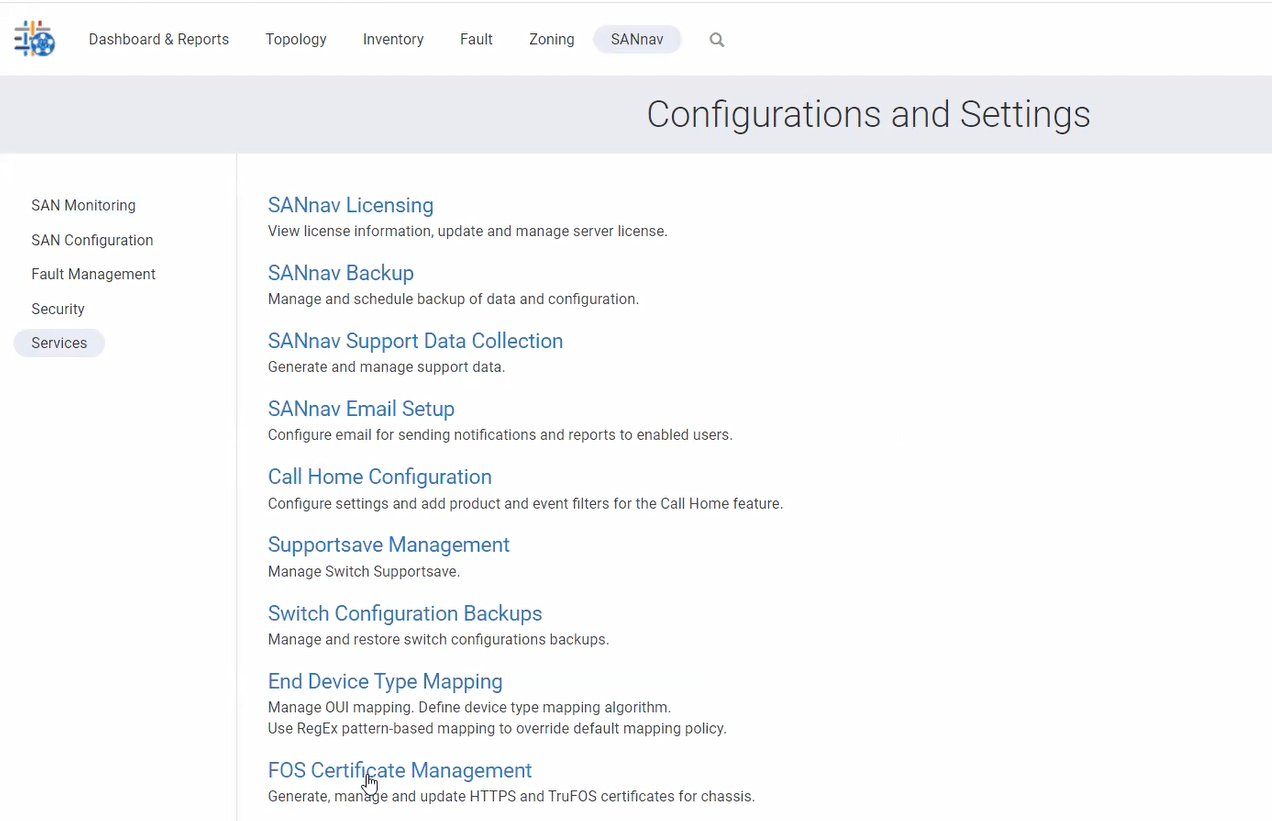

1.Click SANnav in the navigation bar, and then select Services > FOS Certificate Management.
*********************************************************************************************************************************

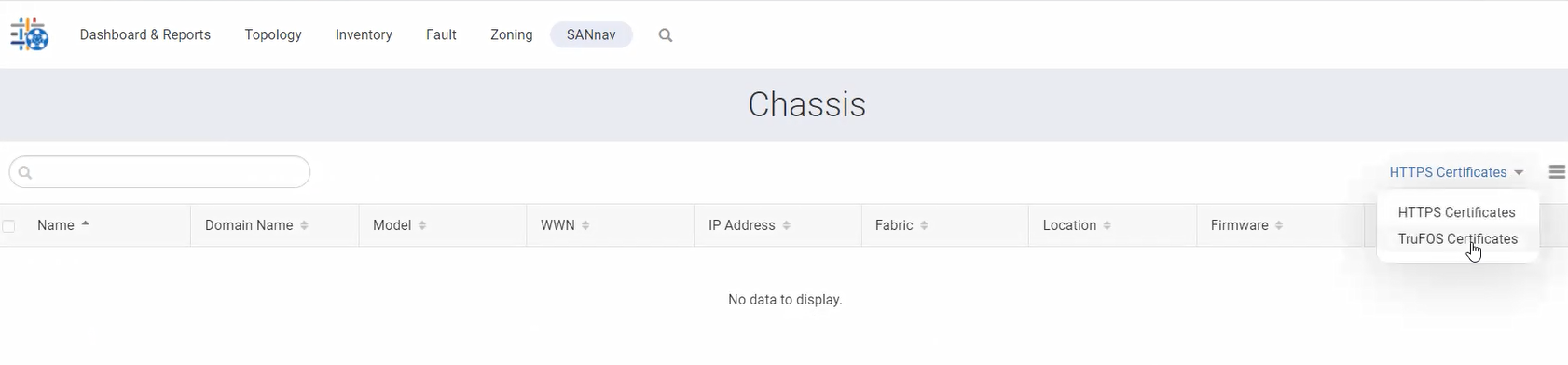

2. Select TruFOS from the filter bar.
*********************************************************************************************************************************
3. Choose one of the following options:
• To upload to all chassis, click the more button ( ) in the upper-right corner of the page, and click Apply TruFOS.
• To upload to one or more chassis, complete the following steps
: a. Click the more button ( ) in the upper-right corner of the page, and click Bulk Select. A column of checkboxes displays to the left of the chassis names.
b. Select each chassis on which you want to apply a TruFOS Certificate, and click Actions > Apply TruFOS.
****************************************************************************************

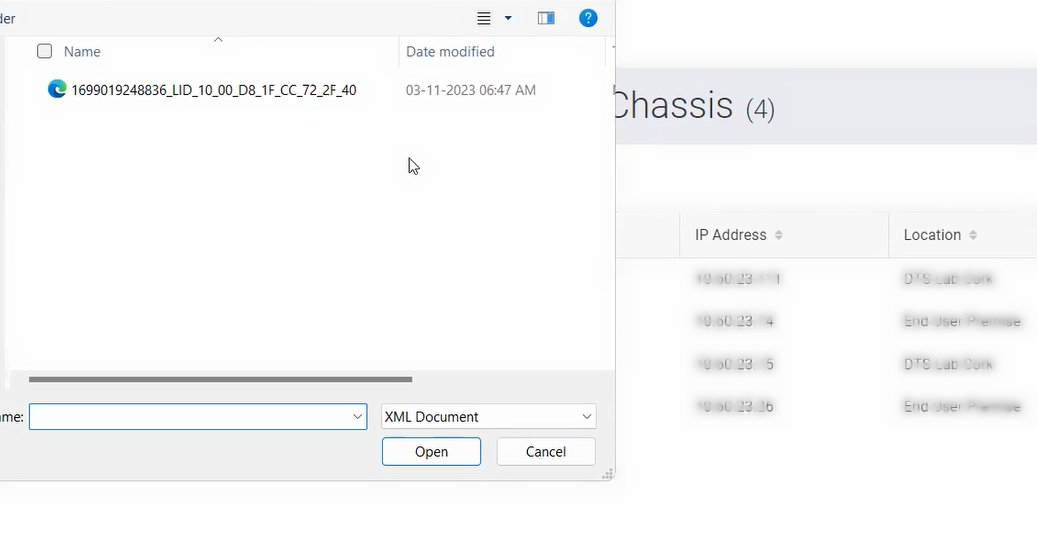

4. Browse to the TruFOS Certificate location.
*********************************************************************************************************************************
5. Select the you want to apply, and click Open

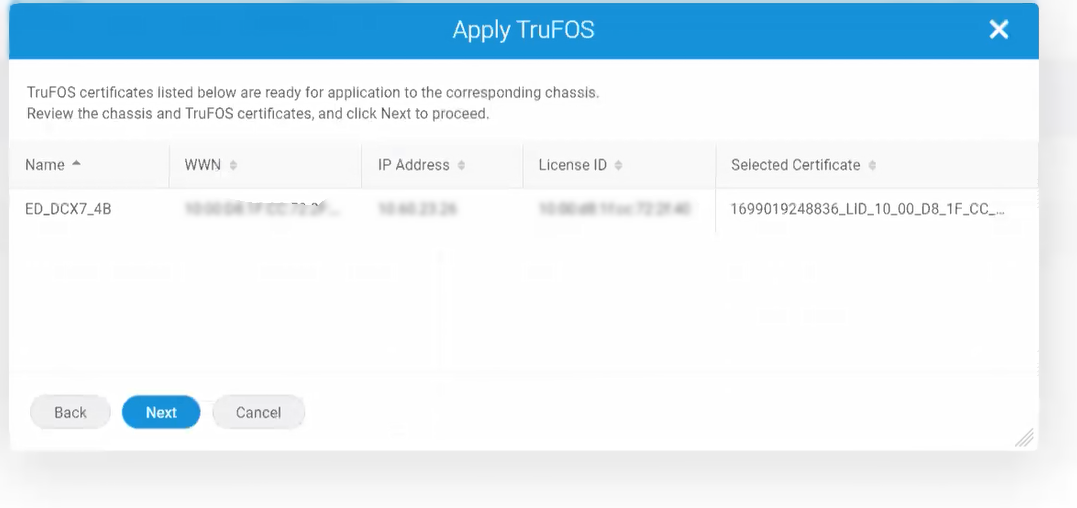

. The Apply TruFOS dialog displays and details the selected certificates to be mapped to the chassis.
***************************************************************************************

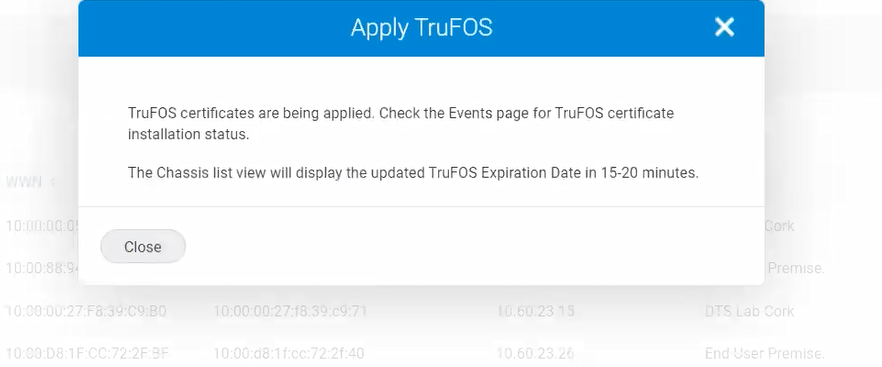

6.Click Next. The Apply TruFOS message displays. The selected certificates are mapped to the chassis in the background.

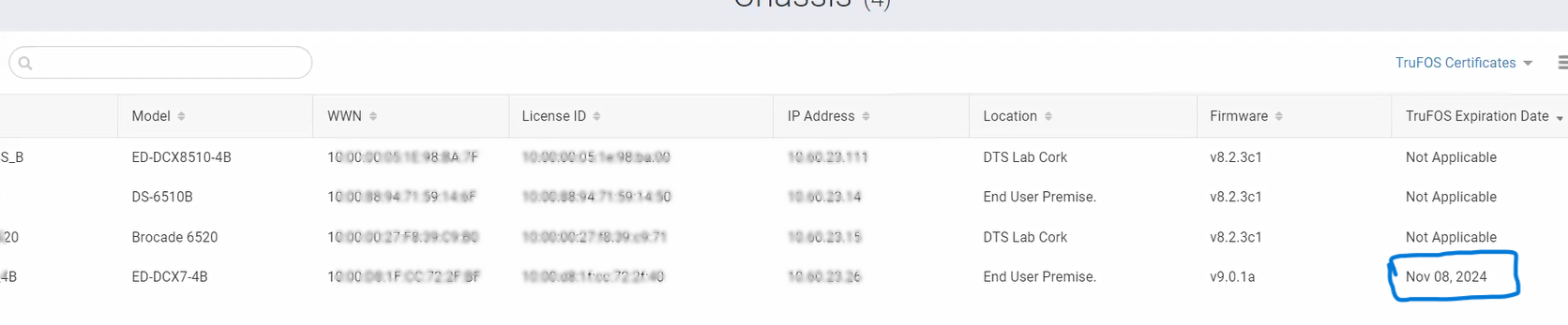

“You can check the Events page to check the TruFOS Certificate installation status. The Chassis list page displays the updated TruFOS Expiration Date in 15 to 20 minutes.”
*****************************************************************************************************************************
7. Click Close to close the Apply TruFOS message. TruFOS successfully applied after 15-20 minutes.
*********************************************************************************************************************************
2. Select TruFOS from the filter bar.
*********************************************************************************************************************************
3. Choose one of the following options:
• To upload to all chassis, click the more button ( ) in the upper-right corner of the page, and click Apply TruFOS.
• To upload to one or more chassis, complete the following steps
: a. Click the more button ( ) in the upper-right corner of the page, and click Bulk Select. A column of checkboxes displays to the left of the chassis names.
b. Select each chassis on which you want to apply a TruFOS Certificate, and click Actions > Apply TruFOS.
****************************************************************************************
4. Browse to the TruFOS Certificate location.
*********************************************************************************************************************************
5. Select the you want to apply, and click Open
. The Apply TruFOS dialog displays and details the selected certificates to be mapped to the chassis.
***************************************************************************************
6.Click Next. The Apply TruFOS message displays. The selected certificates are mapped to the chassis in the background.
“You can check the Events page to check the TruFOS Certificate installation status. The Chassis list page displays the updated TruFOS Expiration Date in 15 to 20 minutes.”
*****************************************************************************************************************************
7. Click Close to close the Apply TruFOS message. TruFOS successfully applied after 15-20 minutes.
