No Boot on Dell Computer or XPS With USB Type-C Adapter Installed or No USB Type-C Functionality

Summary: Learn about if a Dell computer or XPS cannot boot when a USB Type-C device is connected, such as a dock or adapter. The computer may also boot without USB Type-C functionality.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

The computer is unable to boot or complete POST with any USB Type-C power source on the Thunderbolt (TBT) port. USB-C Type-C power sources include both the AC adapter and docks.

  • BIOS versions 1.6.0 through 1.9.1 cannot turn on or even charge with a TBT or non-TBT port.
  • BIOS version 1.10.0 can turn on when charging with a non-TBT port.

The computer’s USB Type-C functions, such as charging, USB, dongle, display, and so on are lost. The Main System Cypress Port Controller (power delivery firmware) under diagnostics shows 0.0.0.0.

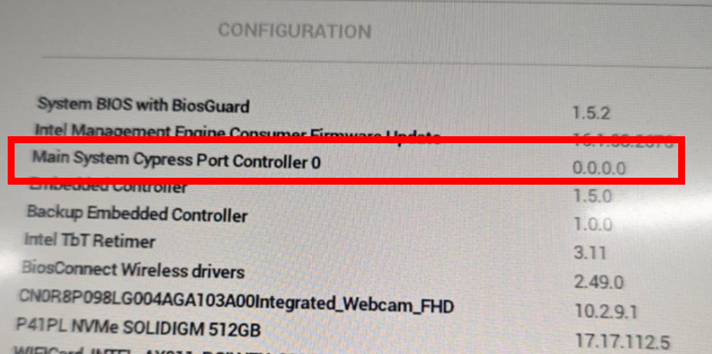

A Configuration menu with Main System Cypress Port Controller 0 at version 0.0.0.0

Affected Platforms:

  • Dell 14 Plus 2-in-1 DB04250
  • Dell 14 Plus DB14250
  • Dell 16 Plus 2-in-1 DB06250
  • Dell 16 Plus DB16250
  • Dell Pro Max 14 Premium MA14250
  • Dell Pro Max 16 Premium MA16250
  • XPS 14 (Dell 14 Premium) DA14250
  • XPS 16 (Dell 16 Premium) DA16250

Cause

Computer lock-ups or other unexpected behaviors resulted in BIOS updates being interrupted.

Resolution

Resolve this issue by first Recovering the BIOS and then either Update the BIOS in Windows or perform a Remote BIOS Flash Update. Click the appropriate process for more information.

Recovering the BIOS

  1. Remove any external USB Type-C power sources, such as an adapter or dock.
  2. Let the computer rest for 5 minutes before performing any steps.
  3. Turn on the computer without any external power sources connected. Check if the computer is bootable and a BIOS Auto-Recovery starts successfully. If BIOS Auto-Recovery starts, continue to Step 5. If BIOS Auto-Recovery does not begin, go to Step 4.
  4. If Step 3 does not start BIOS Auto-Recovery, insert the USB Type-C adapter to a non-Thunderbolt port and turn on the computer.

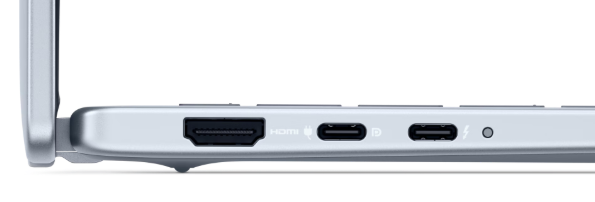

    Thunderbolt and non-Thunderbolt USB Type-C ports
    Note: Thunderbolt ports have a lightning bolt icon beside them, whereas non-Thunderbolt ports do not have a lightning bolt icon.
  5. BIOS Auto-Recovery continues automatically once the computer’s battery capacity meets requirements.

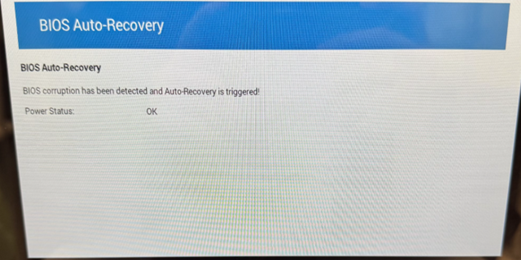

    BIOS Auto-Recovery
  6. Ensure that BIOS Auto-Recovery was successful and check if USB Type-C functions such as power input, display, and so on are recovered.

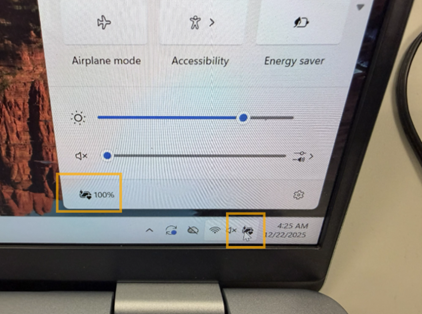

    Battery charging, indicating successful USB Type-C power input functionality
  7. The following action depends on if a Dell Plus computer is in use or if a Dell Pro Max computer is in use. Follow the steps for the appropriate computer platform.

Update the BIOS in Windows

Note: Before starting the update, perform the following:
  • Back up all personal data. For more information, refer to Back Up and Recovery.
  • Connect the AC adapter.

Update the BIOS to version 1.10.0 or later on the computer resolves the issue. To download and install the BIOS, refer to the BIOS Update Guide.

Remote BIOS Flash Update

Note: Follow these steps only if Recovering the BIOS is not successful.
  1. Press F12 on the keyboard upon powering on the computer to enter the One-Time Boot Menu.
  2. Select BIOS Flash Update - Remote and then press Enter.
  3. Connect to any available wireless network and select Update BIOS. The computer runs a BIOS update after the download is complete. The BIOS is then updated to the latest version.

Affected Products

XPS 14 (Dell 14 Premium) DA14250, XPS 16 (Dell 16 Premium) DA16250, Dell 14 Plus 2-in-1 DB04250, Dell 16 Plus 2-in-1 DB06250, Dell 14 Plus DB14250, Dell 16 Plus DB16250, Dell Pro Max 14 Premium MA14250, Dell Pro Max 16 Premium MA16250
Article Properties
Article Number: 000414204
Article Type: Solution
Last Modified: 22 Apr 2026
Version:  3
