PowerProtect Data Manager: O backup apresenta falha com o código de erro ABV0016

Summary: Os backups de máquina virtual (VM) do PowerProtect Data Manager estão falhando com a seguinte mensagem: Código de erro: ABV0016VM host local do mecanismo direto não consegue fazer backup da máquina virtual devido a um problema de API. ...

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

Os backups de VM falham depois de executados por algum tempo. A interface do usuário mostra o código de erro ABV0016 e a mensagem:

VM direct engine local host is unable to backup the virtual machine because the API issue

Código de erro de falha do backup da VM: ABV0016

O vmdm.log tem as seguintes mensagens de erro:

YYYY-MM-DDThh:mm:ssZ DEBUG: [a85c3e1a9c5ee77b;ac8bc10a5b7b4009] Sending state of 'Running' (last: state=Running, progress=27).
YYYY-MM-DDThh:mm:ssZ ERROR: [a85c3e1a9c5ee77b;ac8bc10a5b7b4009] SDM Data Mover: SDM Full Sync: The vCenter task failed: dp.vpx.fault.DiskClosing.summary
YYYY-MM-DDThh:mm:ssZ ERROR: [a85c3e1a9c5ee77b;ac8bc10a5b7b4009] SDM Data Mover: SDM Full Sync: The vCenter task for 'SDM Snapshot Sync fullSync' completed with state 'error'.
YYY-MM-DDThh:mm:ssZ INFO: [a85c3e1a9c5ee77b;ac8bc10a5b7b4009] Connect vCenter: Set custom attribute 'Dell VM Direct Engine Cleanup Descriptor' value for object vm-200 to '{"DataMover":"SDM","SessionType":"Backup","SessionUuid":"0c1dafe9-8d4f-4701-93fd-65c6024b8503","SessionStartTime":"YYYY-MM-DDT14:18:58Z","VmMORef":"vm-243","VmName":"infosys","VProxyMORef":"","SnapshotMORef":"","VmdkBaseFileNames":null,"DpdVendorId":"","LwdDiskIds":null,"DpdTaskMORef":"","LwdSnapshotUuid":""}'.
YYYY-MM-DDThh:mm:ssZ DEBUG: [a85c3e1a9c5ee77b;ac8bc10a5b7b4009] SDM Data Mover: SDM Full Sync: Set VM Cleanup Descriptor. YYYY-MM-DDT15:hh:mm:ssZ ERROR: [a85c3e1a9c5ee77b;ac8bc10a5b7b4009] SDM Data Mover: SDM Full Sync: Unsuccessful after 1 attempts over 42m23.015355429s. YYYY-MM-DDT15:hh:mm:ssZ ERROR: [a85c3e1a9c5ee77b;ac8bc10a5b7b4009] SDM Data Mover: SDM Full Sync: Unable to successfully complete SDM Full Sync operation.

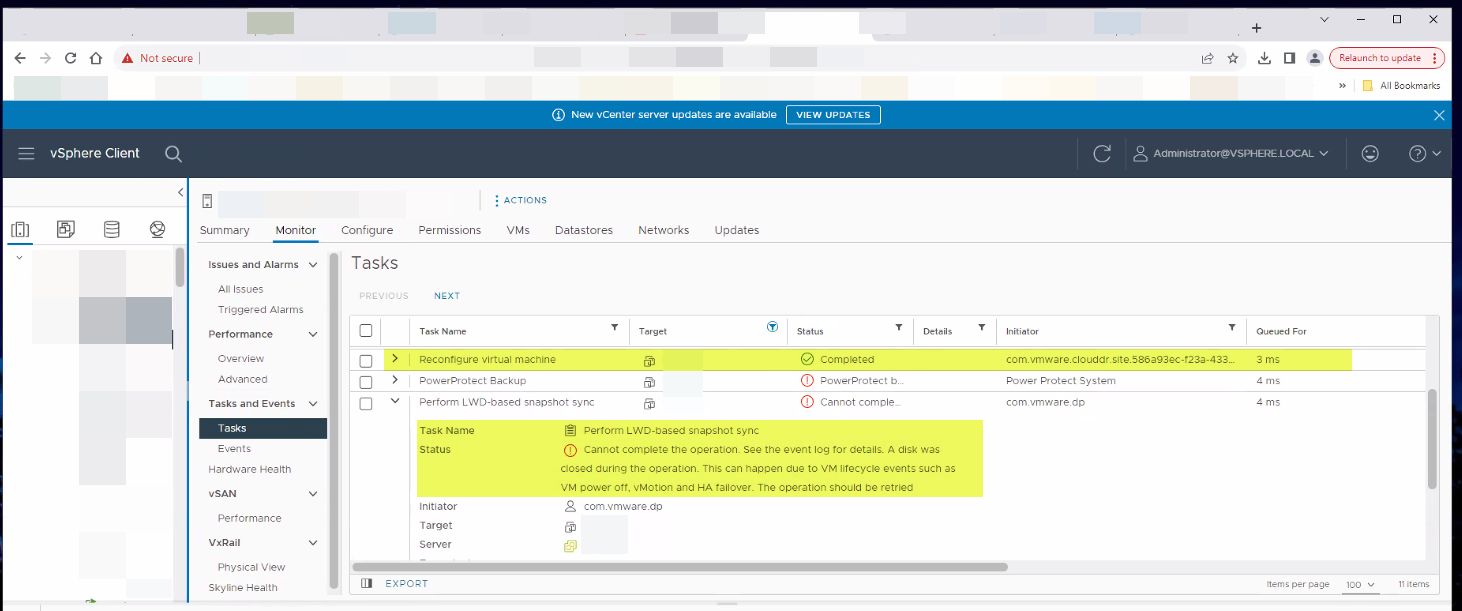

Na IU do vSphere, a seguinte falha é vista:

Task Name Status: Perform LWD-based snapshot sync
Cannot complete the operation. See the event log for details. A disk was closed during the operation. This can happen due to VM lifeCycle events such as VM power off, vMotion and HA failover. The operation should be retried.

Falha na sincronização de snapshots baseada em LWD

O produto VMware CloudDR está executando ações de snapshot na VM no momento do backup da VM pelo PowerProtect Data Manager. Na captura de tela acima, vemos a tarefa "Reconfigure virtual machine" sendo realizada pelo CloudDR quando o backup do PowerProtect Data Manager está em execução. Isso causa falha no backup do PowerProtect Data Manager.

Cause

Sobreposição de backup do PowerProtect Data Manager e atividades do CloudDR da VMware



Resolution

Altere o agendamento do CloudDR da VMware para evitar a sobreposição entre as atividades do CloudDR e o backup do PowerProtect Data Manager.



Affected Products

PowerProtect Data Manager
