PowerFlex: 4.X Component Breakdown

Summary: This article explains each component in the 4.x PowerFlex system.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Instructions

Kubernetes

What is Kubernetes?

  • Kubernetes is an open source container orchestration tool that can have hundreds or thousands of containers from docker or other technologies.
  • Kubernetes automates deployment, scaling, and management of containerized applications.

What is PFMC and PFMP?

  • PowerFlex Management Controller (PFMC) is the infrastructure underlying the PowerFlex Management Platform (PFMP) in a dedicated multinode configuration. It could be a 3 - 5 node cluster.
  • PFMP is the Management Software stack that runs on physical or virtual Linux instances, which are containers that provide services.

Components of Kubernetes

Containers

  • A ready-to-run software package containing everything required to run an application, micro services, or even lightweight container operating systems.

Pods

  • Pods host one or more containers and provide shared storage and networking to those containers.
  • You can view pods on the Management Virtual Machines (MVMs) in the PFMC.
Example:

Screenshot of an example of Pods

Services

  • Services offer a consistent stable IP address and Domain Name System (DNS) name that clients can use to access the application running within Pods.
Example:

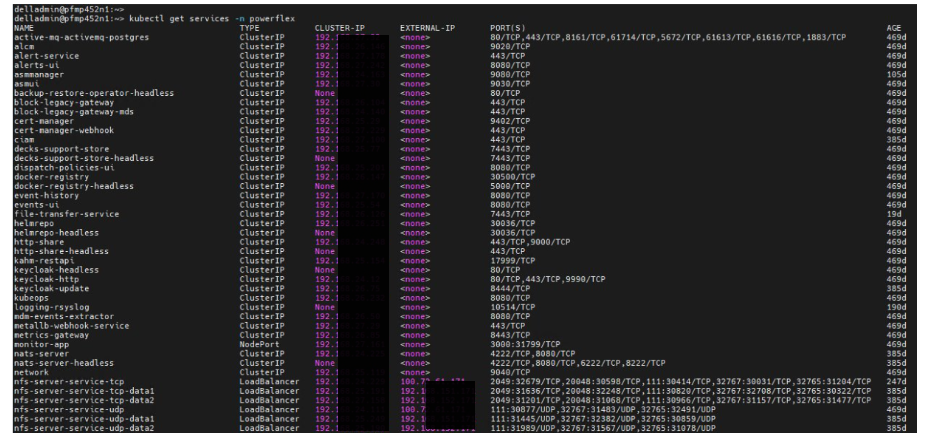

Screenshot example of Services listing

Namespaces

  • In Kubernetes, namespaces provide a mechanism for isolating groups of resources within a single cluster. It can help with user access control and to organize between different environments, projects, or teams.
Example:

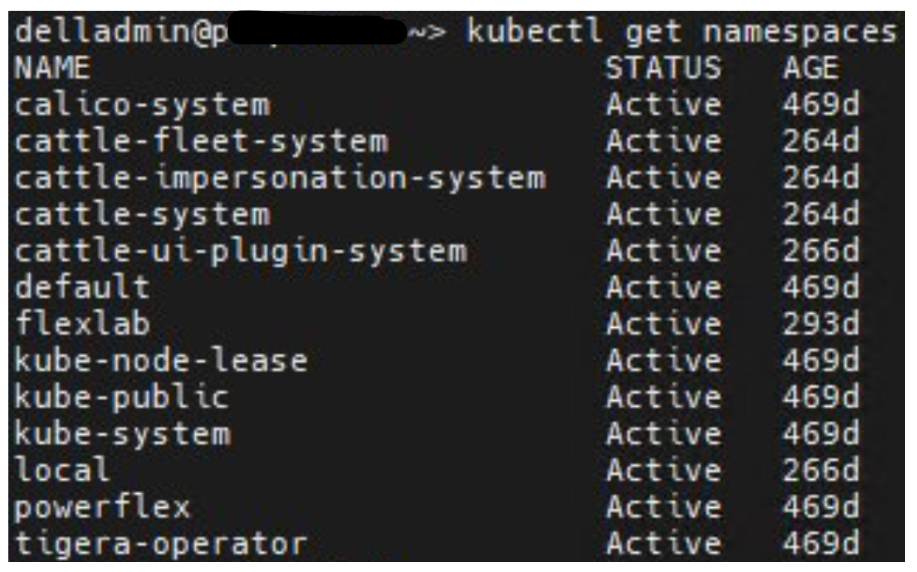

Screenshot example of Namespace

Controllers

  • Controllers are responsible for monitoring the current state of Kubernetes resources. They make any adjustments necessary to ensure that the actual state matches the required state.
  • Controllers that are used in Kubernetes Cluster for PFMP:
    • Deployment
    • ReplicaSet
    • StatefulSet
    • DeamonSet
    • Job
    • Service

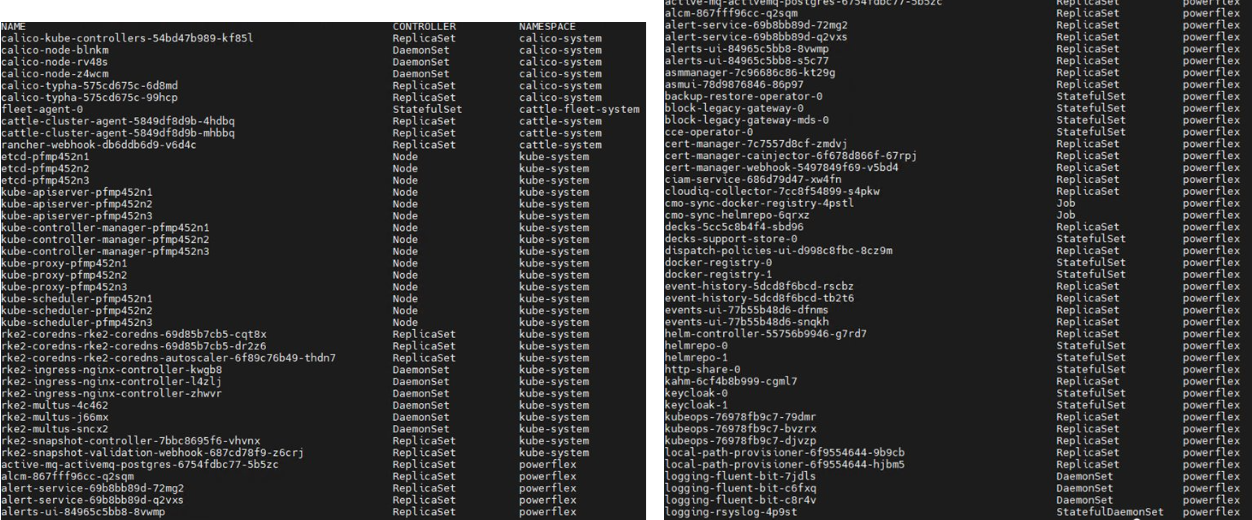

Screenshot example of Controller listings

Affected Products

PowerFlex Appliance, ScaleIO, PowerFlex Software
