PowerFlex 4.x: Generating a Compliance Report fails when attempting to export it to PDF or CSV

Summary: This article explains how to fix a failure when generating a Compliance Report from the Resources tab during a PDF or CSV export.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

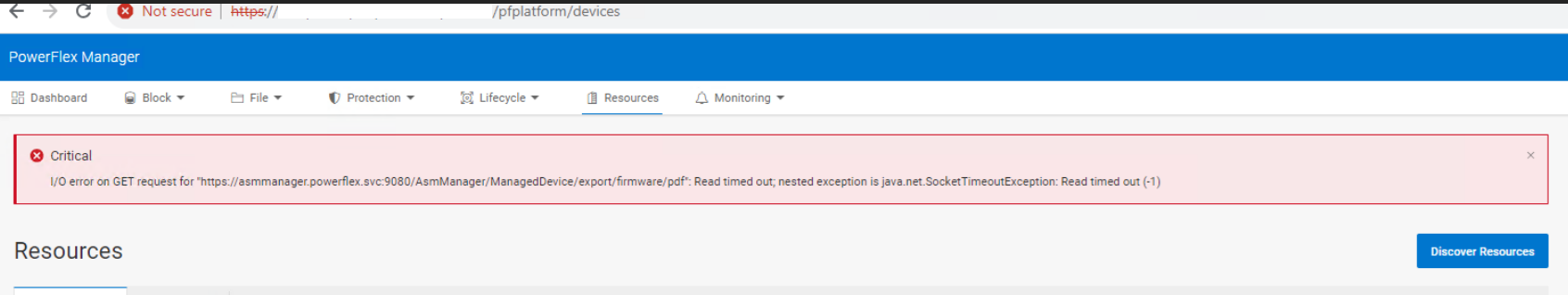

Trying to generate a PDF or CSV Compliance Report from the Resources tab fails with the following Critical error:

I/O error on GET request for "https://asmmanager.powerflex.svc:9080/AsmManager/ManagedDevice/export/firmware/pdf": Read timed out; nested exception is java.net.SocketTimeoutException: Read timed out (-1)


Resources tab fails with the below Critical error


Asmmanager logs -  successfully fetch all the compliance-related details but encounter failures during a PDF file generation (in certain instances, it may fail to generate a CSV file):

2024-04-09T02:19:43.321449536-05:00 stdout F 2024-04-09 07:19:43,321 [task-1] (FirmwareUtil.java:2348) [DEBUG] Getting firmwareCompliance for all devices
..
2024-04-09T02:21:45.225851143-05:00 stdout F 2024-04-09 07:21:45,225 [task-1] (FirmwareUtil.java:2397) [DEBUG] Successfully retrieved all compliance for all devices
2024-04-09T02:22:44.283129547-05:00 stdout F 2024-04-09 07:22:44,282 [https-jsse-nio-9080-exec-4] (AbstractHandlerExceptionResolver.java:208) [WARN] Resolved [org.springframework.web.context.request.async.AsyncRequestTimeoutException]
2024-04-09T02:22:44.286244707-05:00 stdout F 2024-04-09 07:22:44,286 [https-jsse-nio-9080-exec-4] (PFXMErrorController.java:98) [ERROR] Status: 503, PFXM error: null, attributes: timestamp:Tue Apr 09 07:22:44 GMT 2024
2024-04-09T02:22:44.286278324-05:00 stdout F status:503
2024-04-09T02:22:44.286284213-05:00 stdout F error:Service Unavailable
2024-04-09T02:22:44.286287567-05:00 stdout F path:/AsmManager/ManagedDevice/export/firmware/pdf
..
2024-04-09T02:22:44.286331559-05:00 stdout F host=asmmanager.powerflex.svc:9080
2024-04-09T02:22:44.286334441-05:00 stdout F connection=Keep-Alive
2024-04-09T02:22:44.286336981-05:00 stdout F accept-encoding=gzip,deflate
...
2024-04-09T02:23:27.164733668-05:00 stdout F 2024-04-09 07:23:27,164 [task-1] (DeviceInventoryService.java:2026) [WARN] Exception caught writing PDF file for resources
2024-04-09T02:23:27.164764003-05:00 stdout F org.apache.coyote.CloseNowException: Failed write



Impact

Unable to generate Complaint Reports in PDF or CSV format.



Cause

During the report generation process, there might be instances where the creation process times out while fetching details for one or more resources.

Resolution

An internal tool is available for use on the Jump host (Windows or SLES 15.x). To obtain this tool, contact Dell Support.

Impacted Versions

PowerFlex Manager 4.x

Fixed In Version

PowerFlex Manager Platform (PFMP) 4.8

Affected Products

PowerFlex rack, PowerFlex Appliance
Article Properties
Article Number: 000225201
Article Type: Solution
Last Modified: 09 Jul 2025
Version:  4
