Latitude 3390 2-in-1: Visual guide to your Computer

Summary: This article is a visual guide to the external ports and features of the Dell Latitude 3390 2-in-1 Notebook System.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

The following article provides a visual guide to your Latitude 3390 2-in-1 Computer and lists the external ports and features of your PC.


SLN308903_en_US__1icon Note: For a more detailed description about each location, please go to the system manuals at www.dell.com/support


Table of Contents:

  1. Front View
  2. Top View
  3. Rear View
  4. Service Tag View
  5. Left Hand Side View
  6. Right Hand Side View
  7. AC Adapter View
  8. Additional Info:

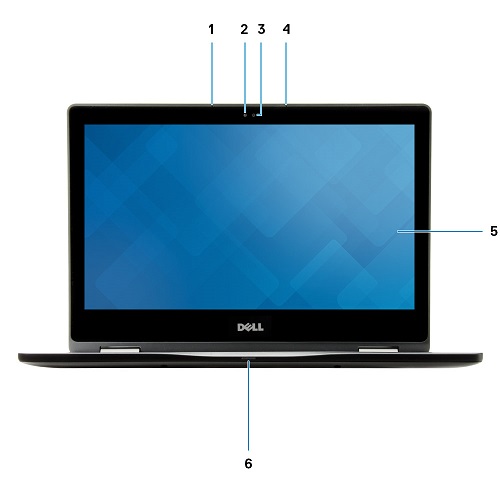

Front View



SLN308903_en_US__23390_2-in-1_Front_BK

(Fig.1 Front View)



1 Microphones 2 Infrared (IR) Camera
3 Camera 4 Microphones
5 LCD Panel 6 Power and Charge Status LED / Hard Disk Drive Status LED



Back to Top

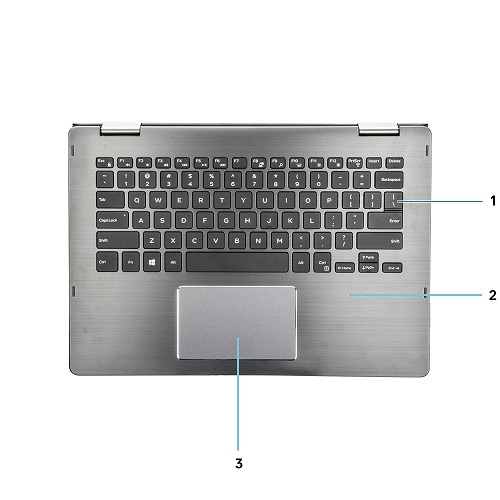

Top View



SLN308903_en_US__33390_2-in-1_Top_BK

(Fig.2 Top View)



1 Keyboard 2 Palmrest
3 Touchpad


Back to Top



Rear View



SLN308903_en_US__43390_2-in-1_Rear_BK

(Fig.3 Rear View)



1 Display Hinge 2 Thermal Vent
3 Display Hinge


Back to Top



Service Tag View



SLN308903_en_US__53390_2-in-1_Tag_BK

(Fig.4 Service Tag View)



1 Service Tag 2 Express Service Code


Back to Top



Left Hand Side View



SLN308903_en_US__63390_2-in-1_Left_BK

(Fig.5 Left Hand Side View)



1 Power Connector 2 DisplayPort over USB Type-C
3 HDMI Connector 4 USB 3.1 Gen1 Connector with PowerShare
5 Headset Connector


Back to Top

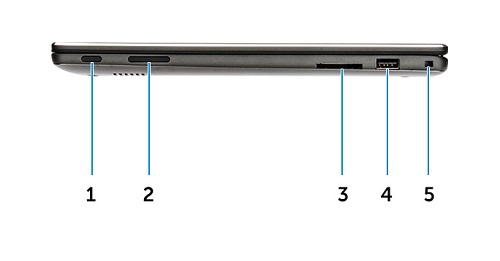

Right Hand Side View



SLN308903_en_US__73390_2-in-1_Right_BK

(Fig.6 Right Hand Side View)



1 Power Button 2 Volume Control Buttons
3 Media Card Reader 4 USB 2.0 Connector
5 Security Cable Slot


Back to Top



AC Adapter View



SLN308903_en_US__87202_AcAdapter_BK_01

(Fig.7 45W Adapter)



Type 45W Series Description
Input Voltage 100 V AC to 240 V AC
Output Current 2.31 A (Continuous)
Output Power 45 W
Output Voltage 19.5 V DC


Back to Top



Additional Info:




Back to Top

Cause

N/A

Resolution

N/A

Affected Products

Latitude 3390 2-in-1
Article Properties
Article Number: 000123970
Article Type: Solution
Last Modified: 03 Jun 2025
Version:  6
