VxRail: Two Node Cluster Deployment Failed to Assign Storage Policy at 77%

Summary: This article helps resolve the issue when a two node VxRail cluster deployment fails at 77% with the error message "Failed to apply vm VxRail Manager storage policy."

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

The below error message can be observed in:  /var/log/microservice_log/dayone.log


'vsphere_cluster_finalization.vsphere_cluster_finalization.cluster_system_vm_storage_policy_apply.default.cluster_system_vm_storage_policy_apply', 'state': 'STARTED', 'progress': 77, 'status': {'id': 'cluster_system_vm_storage_policy_apply', 'internal_id': 'vsphere_cluster_finalization.vsphere_cluster_finalization.cluster_system_vm_storage_policy_apply.default.cluster_system_vm_storage_policy_apply_False____cxxxxxxxxxxxxxxxxxxx', 'internal_family': 'vsphere_cluster_finalization.vsphere_cluster_finalization.cluster_system_vm_storage_policy_apply.default.cluster_system_vm_storage_policy_apply', 'status': 'STARTED', 'startTime': 1659622536686, 'stage': 'default', 'params': {'vc_conn_info': {'host': 'hostname.xxxxxx', 'username': 'administrator@xxxx.xxxx', '****** 'port': xxx}, 'datacenter_name': 'xxxxx', 'cluster_name': 'cxxxx'}, 'error': {'result': {'error': {'code': 'E3100_Cluster_19', 'params': ['VxRail Manager'], 'message': 'Failed to apply vm VxRail Manager storage policy'}}}}}"

Cause

It was discovered that the vSAN witness traffic was enabled on the management network and the unicast agent list was updated with management IP (vmk0) instead of vSAN IP.

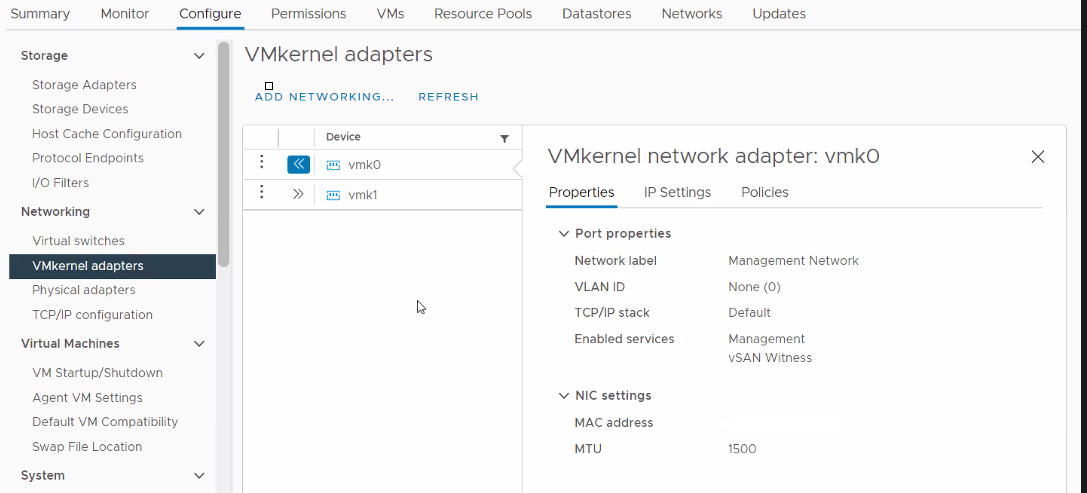

Screenshot of error showing vmk0 enabled with vSAN traffic

Resolution

 Disabled the vSAN witness Traffic on vmk0 (management IP) using the CLI command:

esxcli vsan network ip remove -I vmk0 -T witness


The VMkernel adapters on vmk0 updated with management traffic and the unicast agent list on the VxRail nodes got updated with the vSAN IP (vmk1) details. See the below screenshot:

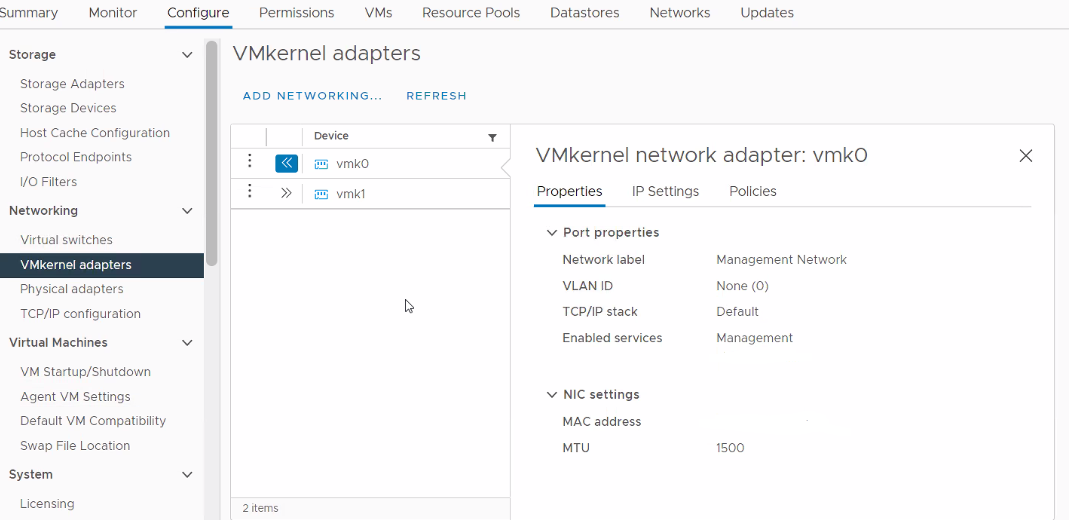

Screenshot showing correct traffic




Videos







Affected Products

VxRail, VxRail Appliance Series, VxRail Software
