Dell EMC Unity: Difference between LUN allocated space and total pool space used for a LUN (User Correctable)
Summary: Dell EMC Unity: Difference between LUN allocated space and total pool space used for a LUN (User Correctable)
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Instructions

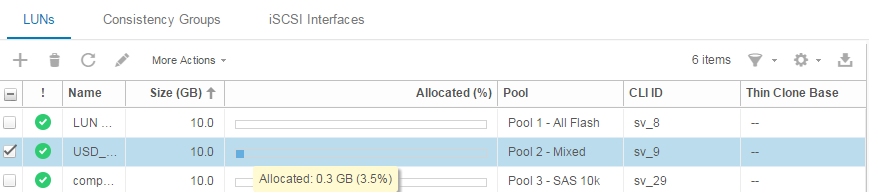

-- The LUN space utilized as seen in the GUI under 'Block -> LUNs -> Allocated(%)' is the 'PrimaryDataConsumptionInBlocks' which is the amount of LUN space that has been consumed by host IO.

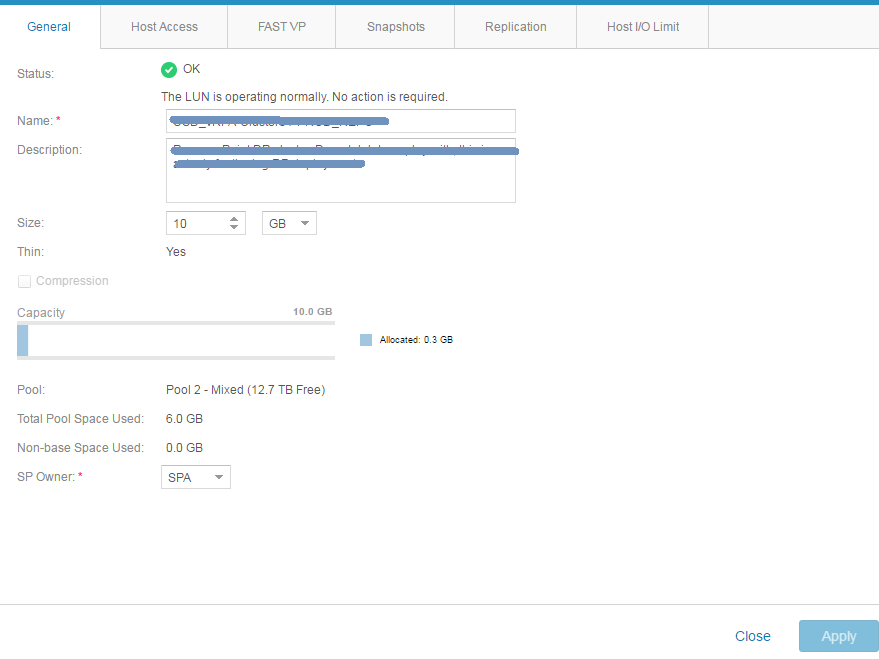

--The amount of space utilized by the LUN under LUN properties -> Total Pool Space Used is the cumulative value of the PrimaryDataConsumptionInBlocks + MetaDataConsumption + Uncommitted Consumption
MetaDataConsumption is the amount of space consumed by metadata for the LUN.
It should be noted that the Uncommitted Consumption is additional space that is pre-allocated. Space additional to the used space is allocated to the thin LUN in order to prevent frequent auto-extension requests to be sent as writes come in to the LUN.
According to the above example:
The LUN total pool space viewed from LUN properties does not imply how much user space used on the LUN, It is actually stating the LUN is consuming 6GB from the Pool and that some of that is the overhead for the thin LUN and some is the unused capacity in the LUN. But it does not indicate how much actual free user space is available.
