Konfiguracja maszyny wirtualnej PowerProtect TSDM kończy się niepowodzeniem z komunikatem ABV0025 "Za mało zasobów"

PowerProtect Data Manager służy do ochrony środowiska vSphere za pomocą rozwiązania Direct Engine maszyny wirtualnej (VM). Maszyna wirtualna jest dodawana do polityki ochrony maszyn wirtualnych, ale nie udało się włączyć sterownika filtra z ABV0025.

ABV0025: VM Direct engine is unable to configure protection for the virtual machine 'MY-VM-NAME' on vCenter 'MY-VCENTER-NAME'.

The VM Direct engine cannot complete protection of this virtual machine because the protection configuration was unsuccessful.

Review the error details and summary log in the Jobs window, or review the log files at /var/log/brs/vmdm for more detailed information to troubleshoot the issue.

Read Less
Unable to ENABLE LWD on MY-VM-NAME - SPIF filters change failure: Not enough resources..Failed to attach IO Filter vmwarelwd: Not enough resources.

Z vmdm.log wynika, że:

...
YYYY-MM-DD HH:MM:SS INFO [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.u.SdmEnableProtectUtil.patchDisksWithLWDEnabled(573)] -  Disk: [PFA-X70R2-DAK-01_Production_248] MY-VM-NAME/MY-VM-NAME.vmdk, LwdEnabled: false, Excluded: null
YYYY-MM-DD HH:MM:SS INFO [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.u.SdmEnableProtectUtil.patchDisksWithLWDEnabled(573)] -  Disk: [PFA-X70R2-DAK-01_Production_248] MY-VM-NAME/MY-VM-NAME_1.vmdk, LwdEnabled: false, Excluded: null
YYYY-MM-DD HH:MM:SS INFO [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.u.SdmEnableProtectUtil.patchDisksWithLWDEnabled(573)] -  Disk: [Isilon DAK VM Stasis] MY-VM-NAME/MY-VM-NAME.vmdk, LwdEnabled: false, Excluded: null
...
YYYY-MM-DD HH:MM:SS INFO [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.u.SdmEnableProtectUtil.waitForVsanTask(399)] -  Task Task-task-9141788 state=ERROR name=null
YYYY-MM-DD HH:MM:SS WARN [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.u.SdmEnableProtectUtil.configureProtect(374)] -  Unable to ENABLE LWD on MY-VM-NAME
YYYY-MM-DD HH:MM:SS WARN [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.u.SdmEnableProtectUtil.configureProtect(381)] -  DpSetProtection error message: SPIF filters change failure: Not enough resources..Failed to attach IO Filter vmwarelwd: Not enough resources.
YYYY-MM-DD HH:MM:SS WARN [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.a.VPEConfigureOp.logErrorStack(64)] -  Unable to configure MY-VM-NAME
com.emc.brs.vmdm.error.ComponentException: Unable to ENABLE LWD on MY-VM-NAME - SPIF filters change failure: Not enough resources..Failed to attach IO Filter vmwarelwd: Not enough resources.
	at com.emc.brs.vmdm.vpe.util.SdmEnableProtectUtil.configureProtect(SdmEnableProtectUtil.java:386)
	at com.emc.brs.vmdm.vpe.util.SdmEnableProtectUtil.configureProtection(SdmEnableProtectUtil.java:204)
	at com.emc.brs.vmdm.vpe.util.SdmEnableProtectUtil.configureProtection(SdmEnableProtectUtil.java:216)
	at com.emc.brs.vmdm.vpe.actions.VPEConfigureOp.chooseDataMoverType(VPEConfigureOp.java:223)
	at com.emc.brs.vmdm.vpe.actions.VPEConfigureOp.createConfig(VPEConfigureOp.java:152)
	at com.emc.brs.vmdm.vpe.actions.VPEConfigureOp.execute(VPEConfigureOp.java:105)
	at com.emc.brs.vmdm.vpe.service.VPEActionDispatcher.execute(VPEActionDispatcher.java:367)
	at com.emc.brs.vmdm.vpe.service.VPEActionDispatcher.lambda$executeOp$1(VPEActionDispatcher.java:333)
	at com.emc.brs.vmdm.vpe.util.ResourceUtils$JobExecutorImpl.lambda$createWorkflowTask$0(ResourceUtils.java:151)
	at java.base/java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:515)
	at java.base/java.util.concurrent.FutureTask.run(FutureTask.java:264)
	at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1128)
	at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:628)
	at java.base/java.lang.Thread.run(Thread.java:829)

YYYY-MM-DD HH:MM:SS ERROR [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.a.VPEConfigureOp.buildWorkflowException(383)] -  Unable to create configuration -- Unable to ENABLE LWD on MY-VM-NAME - SPIF filters change failure: Not enough resources..Failed to attach IO Filter vmwarelwd: Not enough resources.
Parameters: {
  "asset" : "MY-VM-NAME",
  "plc" : "VMware Production Cluster",
  "dataConsistency" : "CRASH_CONSISTENT",
  "storage" : "MY-DD-STORAGE",
  "storageUnit" : "MY-STORAGE-UNIT",
  "replicationStorage" : "MY-REPLICATION-STORAGE",
  "replicationStorageUnit" : "MY-REPLICATION-STORAGE-UNIT",
  "taskId" : "9ed662ac-cc58-4eab-8362-6c3c7b1ceb75",
  "vcenter" : "MY-VCENTER-NAME"
}
Result: {
  "status" : "Failure",
  "error" : "Unable to ENABLE LWD on MY-VM-NAME - SPIF filters change failure: Not enough resources..Failed to attach IO Filter vmwarelwd: Not enough resources. "
}

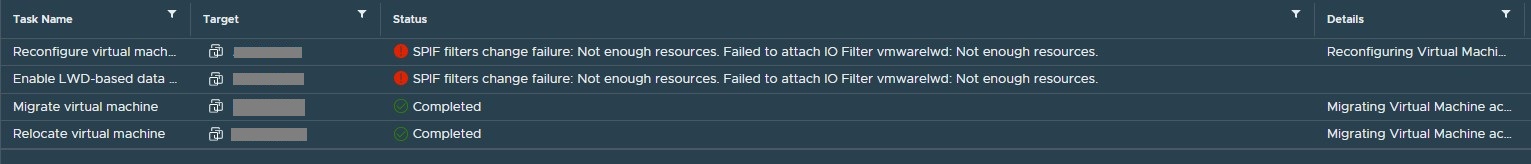

Klient sieci Web vSphere wyświetla podobny komunikat o błędzie:
