Сбой конфигурации TSDM виртуальной машины PowerProtect с ошибкой ABV0025 «Недостаточно ресурсов»

PowerProtect Data Manager используется для защиты среды vSphere с помощью решения Direct Engine для виртуальных машин (ВМ). Виртуальная машина добавляется в политику защиты виртуальной машины, но драйверу фильтра не удается включить ABV0025.

ABV0025: VM Direct engine is unable to configure protection for the virtual machine 'MY-VM-NAME' on vCenter 'MY-VCENTER-NAME'.

The VM Direct engine cannot complete protection of this virtual machine because the protection configuration was unsuccessful.

Review the error details and summary log in the Jobs window, or review the log files at /var/log/brs/vmdm for more detailed information to troubleshoot the issue.

Read Less
Unable to ENABLE LWD on MY-VM-NAME - SPIF filters change failure: Not enough resources..Failed to attach IO Filter vmwarelwd: Not enough resources.

На vmdm.log показано:

...
YYYY-MM-DD HH:MM:SS INFO [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.u.SdmEnableProtectUtil.patchDisksWithLWDEnabled(573)] -  Disk: [PFA-X70R2-DAK-01_Production_248] MY-VM-NAME/MY-VM-NAME.vmdk, LwdEnabled: false, Excluded: null
YYYY-MM-DD HH:MM:SS INFO [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.u.SdmEnableProtectUtil.patchDisksWithLWDEnabled(573)] -  Disk: [PFA-X70R2-DAK-01_Production_248] MY-VM-NAME/MY-VM-NAME_1.vmdk, LwdEnabled: false, Excluded: null
YYYY-MM-DD HH:MM:SS INFO [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.u.SdmEnableProtectUtil.patchDisksWithLWDEnabled(573)] -  Disk: [Isilon DAK VM Stasis] MY-VM-NAME/MY-VM-NAME.vmdk, LwdEnabled: false, Excluded: null
...
YYYY-MM-DD HH:MM:SS INFO [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.u.SdmEnableProtectUtil.waitForVsanTask(399)] -  Task Task-task-9141788 state=ERROR name=null
YYYY-MM-DD HH:MM:SS WARN [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.u.SdmEnableProtectUtil.configureProtect(374)] -  Unable to ENABLE LWD on MY-VM-NAME
YYYY-MM-DD HH:MM:SS WARN [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.u.SdmEnableProtectUtil.configureProtect(381)] -  DpSetProtection error message: SPIF filters change failure: Not enough resources..Failed to attach IO Filter vmwarelwd: Not enough resources.
YYYY-MM-DD HH:MM:SS WARN [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.a.VPEConfigureOp.logErrorStack(64)] -  Unable to configure MY-VM-NAME
com.emc.brs.vmdm.error.ComponentException: Unable to ENABLE LWD on MY-VM-NAME - SPIF filters change failure: Not enough resources..Failed to attach IO Filter vmwarelwd: Not enough resources.
	at com.emc.brs.vmdm.vpe.util.SdmEnableProtectUtil.configureProtect(SdmEnableProtectUtil.java:386)
	at com.emc.brs.vmdm.vpe.util.SdmEnableProtectUtil.configureProtection(SdmEnableProtectUtil.java:204)
	at com.emc.brs.vmdm.vpe.util.SdmEnableProtectUtil.configureProtection(SdmEnableProtectUtil.java:216)
	at com.emc.brs.vmdm.vpe.actions.VPEConfigureOp.chooseDataMoverType(VPEConfigureOp.java:223)
	at com.emc.brs.vmdm.vpe.actions.VPEConfigureOp.createConfig(VPEConfigureOp.java:152)
	at com.emc.brs.vmdm.vpe.actions.VPEConfigureOp.execute(VPEConfigureOp.java:105)
	at com.emc.brs.vmdm.vpe.service.VPEActionDispatcher.execute(VPEActionDispatcher.java:367)
	at com.emc.brs.vmdm.vpe.service.VPEActionDispatcher.lambda$executeOp$1(VPEActionDispatcher.java:333)
	at com.emc.brs.vmdm.vpe.util.ResourceUtils$JobExecutorImpl.lambda$createWorkflowTask$0(ResourceUtils.java:151)
	at java.base/java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:515)
	at java.base/java.util.concurrent.FutureTask.run(FutureTask.java:264)
	at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1128)
	at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:628)
	at java.base/java.lang.Thread.run(Thread.java:829)

YYYY-MM-DD HH:MM:SS ERROR [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.a.VPEConfigureOp.buildWorkflowException(383)] -  Unable to create configuration -- Unable to ENABLE LWD on MY-VM-NAME - SPIF filters change failure: Not enough resources..Failed to attach IO Filter vmwarelwd: Not enough resources.
Parameters: {
  "asset" : "MY-VM-NAME",
  "plc" : "VMware Production Cluster",
  "dataConsistency" : "CRASH_CONSISTENT",
  "storage" : "MY-DD-STORAGE",
  "storageUnit" : "MY-STORAGE-UNIT",
  "replicationStorage" : "MY-REPLICATION-STORAGE",
  "replicationStorageUnit" : "MY-REPLICATION-STORAGE-UNIT",
  "taskId" : "9ed662ac-cc58-4eab-8362-6c3c7b1ceb75",
  "vcenter" : "MY-VCENTER-NAME"
}
Result: {
  "status" : "Failure",
  "error" : "Unable to ENABLE LWD on MY-VM-NAME - SPIF filters change failure: Not enough resources..Failed to attach IO Filter vmwarelwd: Not enough resources. "
}

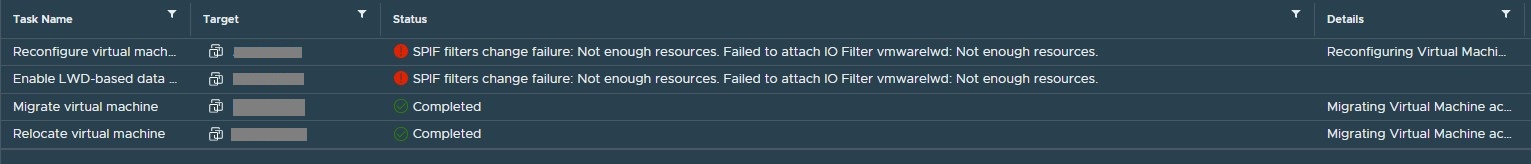

Веб-клиент vSphere отображает аналогичное сообщение об ошибке:
