Falha na configuração do TSDM da máquina virtual do PowerProtect com ABV0025 "Não há recursos suficientes"

O PowerProtect Data Manager é usado para proteger o ambiente vSphere com a solução Direct Engine da máquina virtual (VM). Uma máquina virtual está sendo adicionada à política de proteção de VM, mas não consegue ativar o driver de filtro com ABV0025.

ABV0025: VM Direct engine is unable to configure protection for the virtual machine 'MY-VM-NAME' on vCenter 'MY-VCENTER-NAME'.

The VM Direct engine cannot complete protection of this virtual machine because the protection configuration was unsuccessful.

Review the error details and summary log in the Jobs window, or review the log files at /var/log/brs/vmdm for more detailed information to troubleshoot the issue.

Read Less
Unable to ENABLE LWD on MY-VM-NAME - SPIF filters change failure: Not enough resources..Failed to attach IO Filter vmwarelwd: Not enough resources.

O vmdm.log mostra:

...
YYYY-MM-DD HH:MM:SS INFO [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.u.SdmEnableProtectUtil.patchDisksWithLWDEnabled(573)] -  Disk: [PFA-X70R2-DAK-01_Production_248] MY-VM-NAME/MY-VM-NAME.vmdk, LwdEnabled: false, Excluded: null
YYYY-MM-DD HH:MM:SS INFO [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.u.SdmEnableProtectUtil.patchDisksWithLWDEnabled(573)] -  Disk: [PFA-X70R2-DAK-01_Production_248] MY-VM-NAME/MY-VM-NAME_1.vmdk, LwdEnabled: false, Excluded: null
YYYY-MM-DD HH:MM:SS INFO [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.u.SdmEnableProtectUtil.patchDisksWithLWDEnabled(573)] -  Disk: [Isilon DAK VM Stasis] MY-VM-NAME/MY-VM-NAME.vmdk, LwdEnabled: false, Excluded: null
...
YYYY-MM-DD HH:MM:SS INFO [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.u.SdmEnableProtectUtil.waitForVsanTask(399)] -  Task Task-task-9141788 state=ERROR name=null
YYYY-MM-DD HH:MM:SS WARN [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.u.SdmEnableProtectUtil.configureProtect(374)] -  Unable to ENABLE LWD on MY-VM-NAME
YYYY-MM-DD HH:MM:SS WARN [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.u.SdmEnableProtectUtil.configureProtect(381)] -  DpSetProtection error message: SPIF filters change failure: Not enough resources..Failed to attach IO Filter vmwarelwd: Not enough resources.
YYYY-MM-DD HH:MM:SS WARN [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.a.VPEConfigureOp.logErrorStack(64)] -  Unable to configure MY-VM-NAME
com.emc.brs.vmdm.error.ComponentException: Unable to ENABLE LWD on MY-VM-NAME - SPIF filters change failure: Not enough resources..Failed to attach IO Filter vmwarelwd: Not enough resources.
	at com.emc.brs.vmdm.vpe.util.SdmEnableProtectUtil.configureProtect(SdmEnableProtectUtil.java:386)
	at com.emc.brs.vmdm.vpe.util.SdmEnableProtectUtil.configureProtection(SdmEnableProtectUtil.java:204)
	at com.emc.brs.vmdm.vpe.util.SdmEnableProtectUtil.configureProtection(SdmEnableProtectUtil.java:216)
	at com.emc.brs.vmdm.vpe.actions.VPEConfigureOp.chooseDataMoverType(VPEConfigureOp.java:223)
	at com.emc.brs.vmdm.vpe.actions.VPEConfigureOp.createConfig(VPEConfigureOp.java:152)
	at com.emc.brs.vmdm.vpe.actions.VPEConfigureOp.execute(VPEConfigureOp.java:105)
	at com.emc.brs.vmdm.vpe.service.VPEActionDispatcher.execute(VPEActionDispatcher.java:367)
	at com.emc.brs.vmdm.vpe.service.VPEActionDispatcher.lambda$executeOp$1(VPEActionDispatcher.java:333)
	at com.emc.brs.vmdm.vpe.util.ResourceUtils$JobExecutorImpl.lambda$createWorkflowTask$0(ResourceUtils.java:151)
	at java.base/java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:515)
	at java.base/java.util.concurrent.FutureTask.run(FutureTask.java:264)
	at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1128)
	at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:628)
	at java.base/java.lang.Thread.run(Thread.java:829)

YYYY-MM-DD HH:MM:SS ERROR [vpe-thread-1084] [00000000-0000-4000-a000-000000000000][][][TRACE_ID:b7ad8bc8de550939;JOB_ID:85288865f56e08a6][] [c.e.b.v.v.a.VPEConfigureOp.buildWorkflowException(383)] -  Unable to create configuration -- Unable to ENABLE LWD on MY-VM-NAME - SPIF filters change failure: Not enough resources..Failed to attach IO Filter vmwarelwd: Not enough resources.
Parameters: {
  "asset" : "MY-VM-NAME",
  "plc" : "VMware Production Cluster",
  "dataConsistency" : "CRASH_CONSISTENT",
  "storage" : "MY-DD-STORAGE",
  "storageUnit" : "MY-STORAGE-UNIT",
  "replicationStorage" : "MY-REPLICATION-STORAGE",
  "replicationStorageUnit" : "MY-REPLICATION-STORAGE-UNIT",
  "taskId" : "9ed662ac-cc58-4eab-8362-6c3c7b1ceb75",
  "vcenter" : "MY-VCENTER-NAME"
}
Result: {
  "status" : "Failure",
  "error" : "Unable to ENABLE LWD on MY-VM-NAME - SPIF filters change failure: Not enough resources..Failed to attach IO Filter vmwarelwd: Not enough resources. "
}

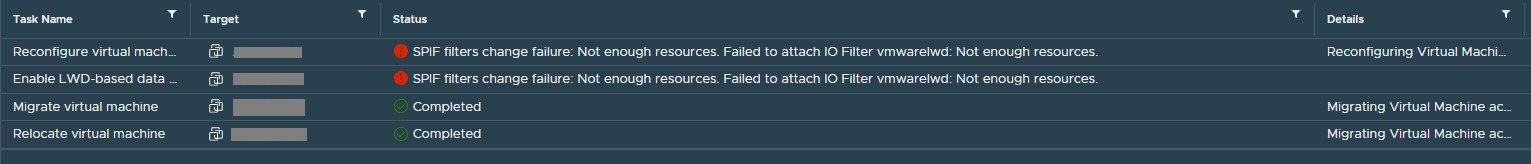

O vSphere Web Client mostra uma mensagem de erro semelhante:
