PowerFlex 4.x - Add Existing RG Fails with VXFM0004 or VXFM00611

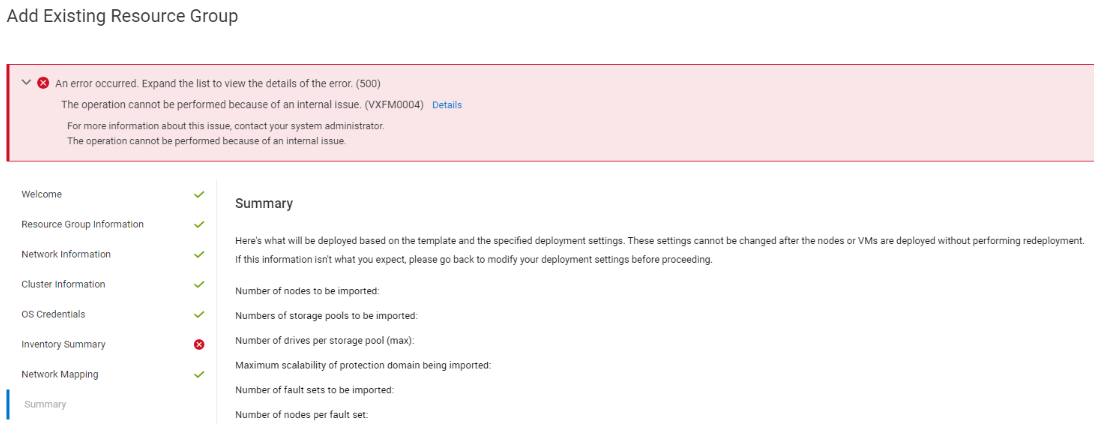

After previous removal of resource group and now re-adding that resource group, the UI shows:

An error occurred.  Expand the list to view the details of the error. (500)
The operation cannot be performed because of an internal issue. (VXFM0004)

asmManager.log shows similar to below:

2023-07-18 04:05:14,981 [https-jsse-nio-9080-exec-5] (ServiceTemplateComponentService.java:75) [DEBUG] filter: (serviceTemplate.templateId ne "ad43fce5-9a80-466e-9ebe-8bb5
002faae8") and (type eq "SCALEIO") and (asmGUID eq "scaleio-block-legacy-gateway") and (parameters.value eq "PD-1") and (serviceTemplate.deployment notnull)
2023-07-18 04:05:14,981 [https-jsse-nio-9080-exec-5] (ServiceTemplateComponentService.java:76) [DEBUG] sort: name
2023-07-18 04:05:14,981 [https-jsse-nio-9080-exec-5] (ServiceTemplateComponentService.java:77) [DEBUG] offset: 0 limit: 1
2023-07-18 04:05:15,089 [https-jsse-nio-9080-exec-5] (DeploymentService.java:1636) [ERROR] Device Reservation for deployment 82ecd3ee-0234-47fe-b33c-f61d15190834 failed. R
olling back attached devices and their states
2023-07-18 04:05:15,144 [https-jsse-nio-9080-exec-5] (BrownfieldService.java:3162) [ERROR] Exception occurred while validating existing service
com.dell.asm.rest.common.exception.LocalizedWebApplicationException: HTTP 500 Internal Server Error
        at com.dell.asm.asmcore.asmmanager.app.rest.DeploymentService.updateFromComponentValues(DeploymentService.java:1582) ~[classes!/:?]
        at com.dell.asm.asmcore.asmmanager.app.rest.DeploymentService$$FastClassBySpringCGLIB$$fadfdd18.invoke(<generated>) ~[classes!/:?]
        at org.springframework.cglib.proxy.MethodProxy.invoke(MethodProxy.java:218) ~[spring-core-5.3.27.jar!/:5.3.27]
        at org.springframework.aop.framework.CglibAopProxy.invokeMethod(CglibAopProxy.java:386) ~[spring-aop-5.3.27.jar!/:5.3.27]
        at org.springframework.aop.framework.CglibAopProxy.access$000(CglibAopProxy.java:85) ~[spring-aop-5.3.27.jar!/:5.3.27]
        at org.springframework.aop.framework.CglibAopProxy$DynamicAdvisedInterceptor.intercept(CglibAopProxy.java:704) ~[spring-aop-5.3.27.jar!/:5.3.27]
        at com.dell.asm.asmcore.asmmanager.app.rest.DeploymentService$$EnhancerBySpringCGLIB$$53f63bf9.updateFromComponentValues(<generated>) ~[classes!/:?]
        at com.dell.asm.asmcore.asmmanager.app.rest.BrownfieldService.validateExistingService(BrownfieldService.java:2781) [classes!/:?]
        at com.dell.asm.asmcore.asmmanager.app.controller.BrownfieldController.validateExistingService(BrownfieldController.java:130) [classes!/:?]
        at com.dell.asm.asmcore.asmmanager.app.controller.BrownfieldController$$FastClassBySpringCGLIB$$b2683910.invoke(<generated>) [classes!/:?]
        at org.springframework.cglib.proxy.MethodProxy.invoke(MethodProxy.java:218) [spring-core-5.3.27.jar!/:5.3.27]

One of the nodes out of the two nodes used in service deployment goes into "Deployed" state after removing the service from the appliance.
Expected status of the node after service removal from the appliance: Ready


Caused by thin-deployer health monitoring code:
Code removes the periodic inventory updates (from legacy code logic we were updating device inventory to the same status ) - this is good but not required as this is updating stale data entry for device....when device state is changed from "Deployed" to "Ready" by asm-core and health check is again updating it to "Deployed"

1. Remove the respective node from the resources inventory
2. Rediscover it again
3. Proceed with "Add Existing Resource Group"
