Avamar: Nástroji proxy Deployment Manager se nedaří nasadit proxy

Summary: Nástroji Proxy Deployment Manager se nedaří nasadit server proxy s chybovou zprávou "Failed with HTTP error code : 400", "Požadavek odeslaný klientem byl syntakticky nesprávný"

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

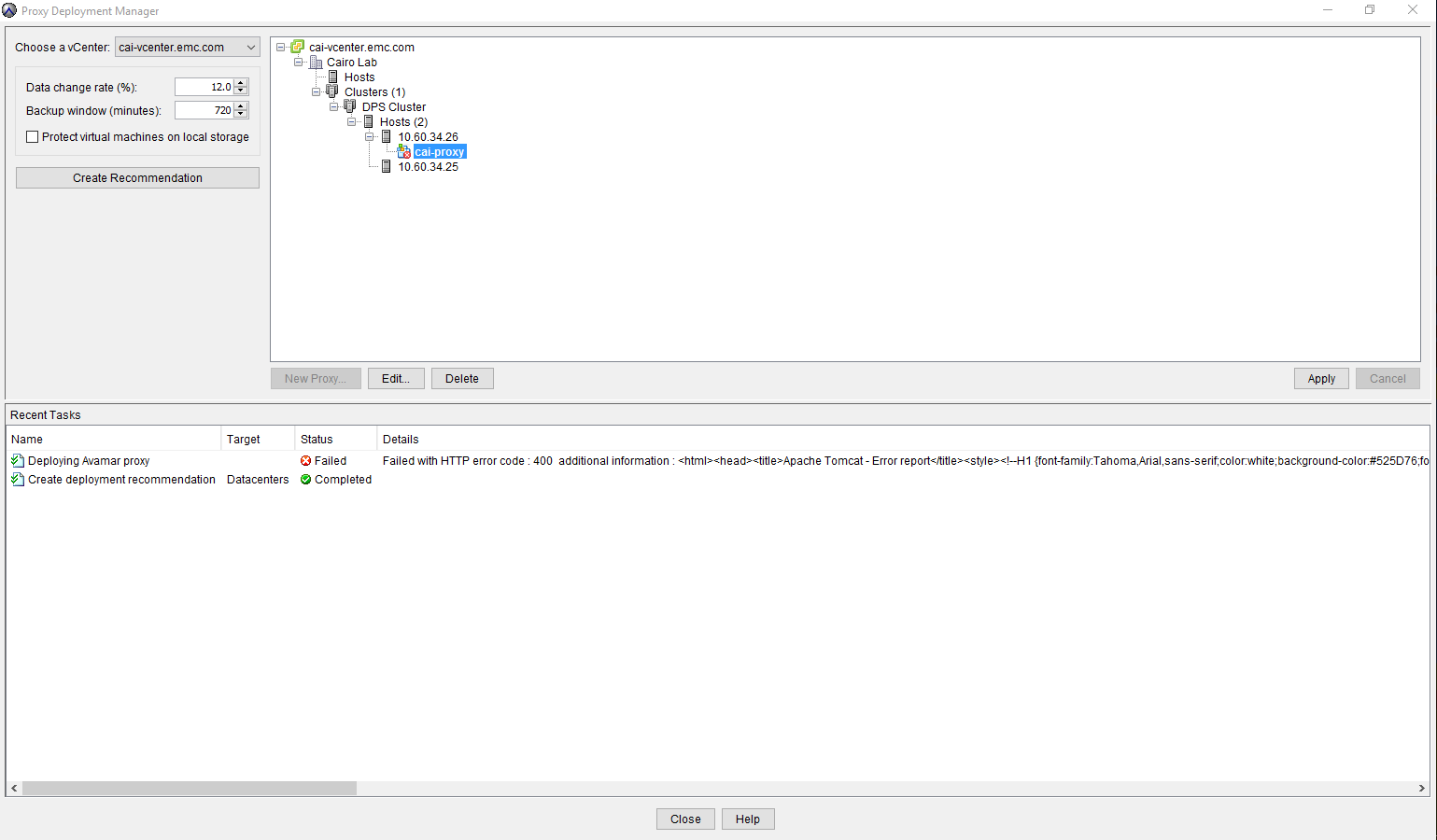

Nástroji Proxy Deployment Manager se nedaří nasadit server proxy s chybovou zprávou "Failed with HTTP error code : 400", "Požadavek odeslaný klientem byl syntakticky nesprávný"

kA2f1000000G3VjCAK_3_0

V souboru protokolu Avamar MCS /usr/local/avamar/var/mc/server_log/mcserver.log.0 se zobrazují níže uvedená varování.

10/10-10:23:26.00489 com.avamar.mc.pdm.ProxyDeploymentManagerService.logFailure
WARNING: uri=https://localhost:8543/deploymanager/recommend/7e259e93-2f04-4e73-90fb-a65ea889784c, header=X-CustomTicket=71b
e6487-c250-40a7-a2c1-5ee99753f2bd, body={"vcenter":"*******","user":"******","datacenters":[{
.
.
.
.
.
.
10/10-10:23:26.00489 com.avamar.mc.util.MCException.logException
WARNING: com.avamar.asn.service.ServiceException: Failed with HTTP error code : 400
  additional information : <html><head><title>Apache Tomcat - Error report</title><style><!--H1 {font-family:Tahoma,Arial,s
ans-serif;color:white;background-color:#525D76;font-size:22px;} H2 {font-family:Tahoma,Arial,sans-serif;color:white;backgro
und-color:#525D76;font-size:16px;} H3 {font-family:Tahoma,Arial,sans-serif;color:white;background-color:#525D76;font-size:1
4px;} BODY {font-family:Tahoma,Arial,sans-serif;color:black;background-color:white;} B {font-family:Tahoma,Arial,sans-serif
;color:white;background-color:#525D76;} P {font-family:Tahoma,Arial,sans-serif;background:white;color:black;font-size:12px;
}A {color : black;}A.name {color : black;}HR {color : #525D76;}--></style> </head><body><h1>HTTP Status 400 - </h1><HR size
="1" noshade="noshade"><p><b>type</b> Status report</p><p><b>message</b> <u></u></p><p><b>description</b> <u>The request sent by the client was syntactically incorrect.</u></p><HR size="1" noshade="noshade"><h3>Apache Tomcat</h3></body></html>
  at com.avamar.mc.pdm.ProxyDeploymentManagerService.updateRecommendation(ProxyDeploymentManagerService.java:185)
  at com.avamar.mc.pdm.ProxyDeploymentManagerService.deployProxy(ProxyDeploymentManagerService.java:206)
  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
  at java.lang.reflect.Method.invoke(Unknown Source)
  at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:318)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:183)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:150)
  at org.springframework.security.access.intercept.aopalliance.MethodSecurityInterceptor.invoke(MethodSecurityInterceptor.j
ava:61)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:172)
  at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:202)
  at com.sun.proxy.$Proxy22.deployProxy(Unknown Source)
  at com.avamar.mc.pdm.ProxyDeploymentManagerServiceContext.deployProxy(ProxyDeploymentManagerServiceContext.java:45)
  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
  at java.lang.reflect.Method.invoke(Unknown Source)
  at sun.rmi.server.UnicastServerRef.dispatch(Unknown Source)
  at sun.rmi.transport.Transport$1.run(Unknown Source)
  at sun.rmi.transport.Transport$1.run(Unknown Source)
  at java.security.AccessController.doPrivileged(Native Method)
  at sun.rmi.transport.Transport.serviceCall(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport.handleMessages(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run0(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.lambda$run$0(Unknown Source)
  at java.security.AccessController.doPrivileged(Native Method)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run(Unknown Source)
  at java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source)
  at java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
  at java.lang.Thread.run(Unknown Source)
10/10-10:23:28.00157 com.avamar.mc.cr.bcConnection.readClientMessage

Cause

Výsledek doporučení pro vytvoření PDM, kde se načte hierarchie serveru vCenter (datová centra, clustery, hostitelé, datová úložiště a sítě). To je uloženo ve výstupu ve formátu JSON uloženém v souboru s názvem, který najdete v dříve uvedeném protokolu MCS (mcserver.log.*). Tento soubor JSON se může nacházet v části /usr/local/avamar/var/vcs/dm/recommendations/.

10/10-10:23:26.00489 com.avamar.mc.pdm.ProxyDeploymentManagerService.logFailure
WARNING: uri=https://localhost:8543/deploymanager/recommend/7e259e93-2f04-4e73-90fb-a65ea889784c, header=X-CustomTicket=71b
e6487-c250-40a7-a2c1-5ee99753f2bd, body={"vcenter":"*******","user":"******","datacenters":[{

Jedna z virtualizovaných komponent na serveru vCenter (v tomto případě síť) měla neplatný znak UTF-8, který způsoboval selhání nasazení serveru proxy.

/usr/local/avamar/var/vcs/dm/recommendations/7e259e93-2f04-4e73-90fb-a65ea889784c.json

{"name":"Publica o","mor":{"type":"Síť","val":"síť-73"}

Resolution

Problém byl způsoben názvem sítě s neplatným znakem UTF-8 v požadavku. Účtu Avamar v nástroji vCenter buď přidělíte roli bez přístupu na dané úrovni sítě, nebo jej přejmenujete a odstraníte neplatnou specifikaci UTF-8.
