Avamar: Proxy Deployment Manager no puede implementar el proxy

Summary: Proxy Deployment Manager no puede implementar el proxy y se muestra el mensaje de error "Fallo con el código de error HTTP: 400", "La solicitud enviada por el cliente fue sintácticamente incorrecta" ...

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

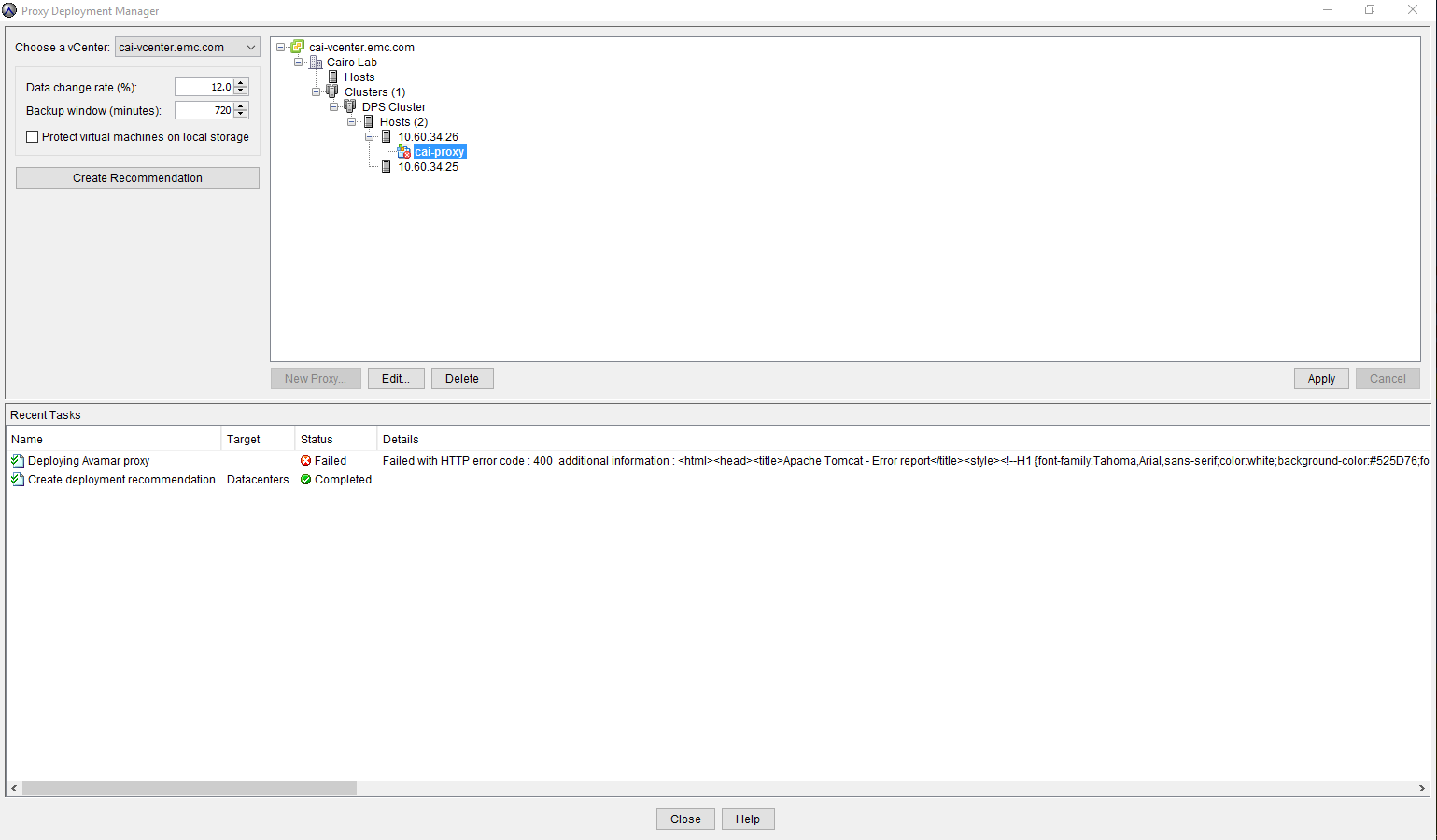

Proxy Deployment Manager no puede implementar el proxy y se muestra el mensaje de error "Fallo con el código de error HTTP: 400", "La solicitud enviada por el cliente fue sintácticamente incorrecta"

kA2f1000000G3VjCAK_3_0

En el archivo de registro /usr/local/avamar/var/mc/server_log/mcserver.log.0 de Avamar, vemos las siguientes advertencias.

10/10-10:23:26.00489 com.avamar.mc.pdm.ProxyDeploymentManagerService.logFailure
WARNING: uri=https://localhost:8543/deploymanager/recommend/7e259e93-2f04-4e73-90fb-a65ea889784c, header=X-CustomTicket=71b
e6487-c250-40a7-a2c1-5ee99753f2bd, body={"vcenter":"*******","user":"******","datacenters":[{
.
.
.
.
.
.
10/10-10:23:26.00489 com.avamar.mc.util.MCException.logException
WARNING: com.avamar.asn.service.ServiceException: Failed with HTTP error code : 400
  additional information : <html><head><title>Apache Tomcat - Error report</title><style><!--H1 {font-family:Tahoma,Arial,s
ans-serif;color:white;background-color:#525D76;font-size:22px;} H2 {font-family:Tahoma,Arial,sans-serif;color:white;backgro
und-color:#525D76;font-size:16px;} H3 {font-family:Tahoma,Arial,sans-serif;color:white;background-color:#525D76;font-size:1
4px;} BODY {font-family:Tahoma,Arial,sans-serif;color:black;background-color:white;} B {font-family:Tahoma,Arial,sans-serif
;color:white;background-color:#525D76;} P {font-family:Tahoma,Arial,sans-serif;background:white;color:black;font-size:12px;
}A {color : black;}A.name {color : black;}HR {color : #525D76;}--></style> </head><body><h1>HTTP Status 400 - </h1><HR size
="1" noshade="noshade"><p><b>type</b> Status report</p><p><b>message</b> <u></u></p><p><b>description</b> <u>The request sent by the client was syntactically incorrect.</u></p><HR size="1" noshade="noshade"><h3>Apache Tomcat</h3></body></html>
  at com.avamar.mc.pdm.ProxyDeploymentManagerService.updateRecommendation(ProxyDeploymentManagerService.java:185)
  at com.avamar.mc.pdm.ProxyDeploymentManagerService.deployProxy(ProxyDeploymentManagerService.java:206)
  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
  at java.lang.reflect.Method.invoke(Unknown Source)
  at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:318)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:183)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:150)
  at org.springframework.security.access.intercept.aopalliance.MethodSecurityInterceptor.invoke(MethodSecurityInterceptor.j
ava:61)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:172)
  at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:202)
  at com.sun.proxy.$Proxy22.deployProxy(Unknown Source)
  at com.avamar.mc.pdm.ProxyDeploymentManagerServiceContext.deployProxy(ProxyDeploymentManagerServiceContext.java:45)
  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
  at java.lang.reflect.Method.invoke(Unknown Source)
  at sun.rmi.server.UnicastServerRef.dispatch(Unknown Source)
  at sun.rmi.transport.Transport$1.run(Unknown Source)
  at sun.rmi.transport.Transport$1.run(Unknown Source)
  at java.security.AccessController.doPrivileged(Native Method)
  at sun.rmi.transport.Transport.serviceCall(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport.handleMessages(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run0(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.lambda$run$0(Unknown Source)
  at java.security.AccessController.doPrivileged(Native Method)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run(Unknown Source)
  at java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source)
  at java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
  at java.lang.Thread.run(Unknown Source)
10/10-10:23:28.00157 com.avamar.mc.cr.bcConnection.readClientMessage

Cause

El resultado de la recomendación de creación de PDM donde se recupera la jerarquía de vCenter Server (centros de datos, clústeres, hosts, almacenes de datos y redes). Esto se almacena en una salida con formato JSON guardada en un archivo con un nombre que se puede encontrar en el registro MCS mencionado anteriormente (mcserver.log.*). Este archivo JSON se puede encontrar en /usr/local/avamar/var/vcs/dm/recommendations/.

10/10-10:23:26.00489 com.avamar.mc.pdm.ProxyDeploymentManagerService.logFailure
WARNING: uri=https://localhost:8543/deploymanager/recommend/7e259e93-2f04-4e73-90fb-a65ea889784c, header=X-CustomTicket=71b
e6487-c250-40a7-a2c1-5ee99753f2bd, body={"vcenter":"*******","user":"******","datacenters":[{

Uno de los componentes virtualizados en vCenter Server (una red en ese caso) tenía un carácter UTF-8 no válido que causaba la falla de la implementación del proxy.

/usr/local/avamar/var/vcs/dm/recommendations/7e259e93-2f04-4e73-90fb-a65ea889784c.json

{"name":"Publica o","mor":{"type":"Network","val":"network-73"}

Resolution

El problema se debía a un nombre de red con un carácter UTF-8 no válido en la solicitud que otorgaba a la cuenta de Avamar en vCenter una función sin acceso en ese nivel de red o que se le cambiaba el nombre y se eliminaba el valor no UTF-8 no válido.
