Avamar: Proxy Deployment Manager non riesce a implementare il proxy

Summary: Proxy Deployment Manager non riesce a eseguire il proxy con il messaggio di errore "Failed with HTTP error code : 400", "La richiesta inviata dal client non è sintattica corretta"

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

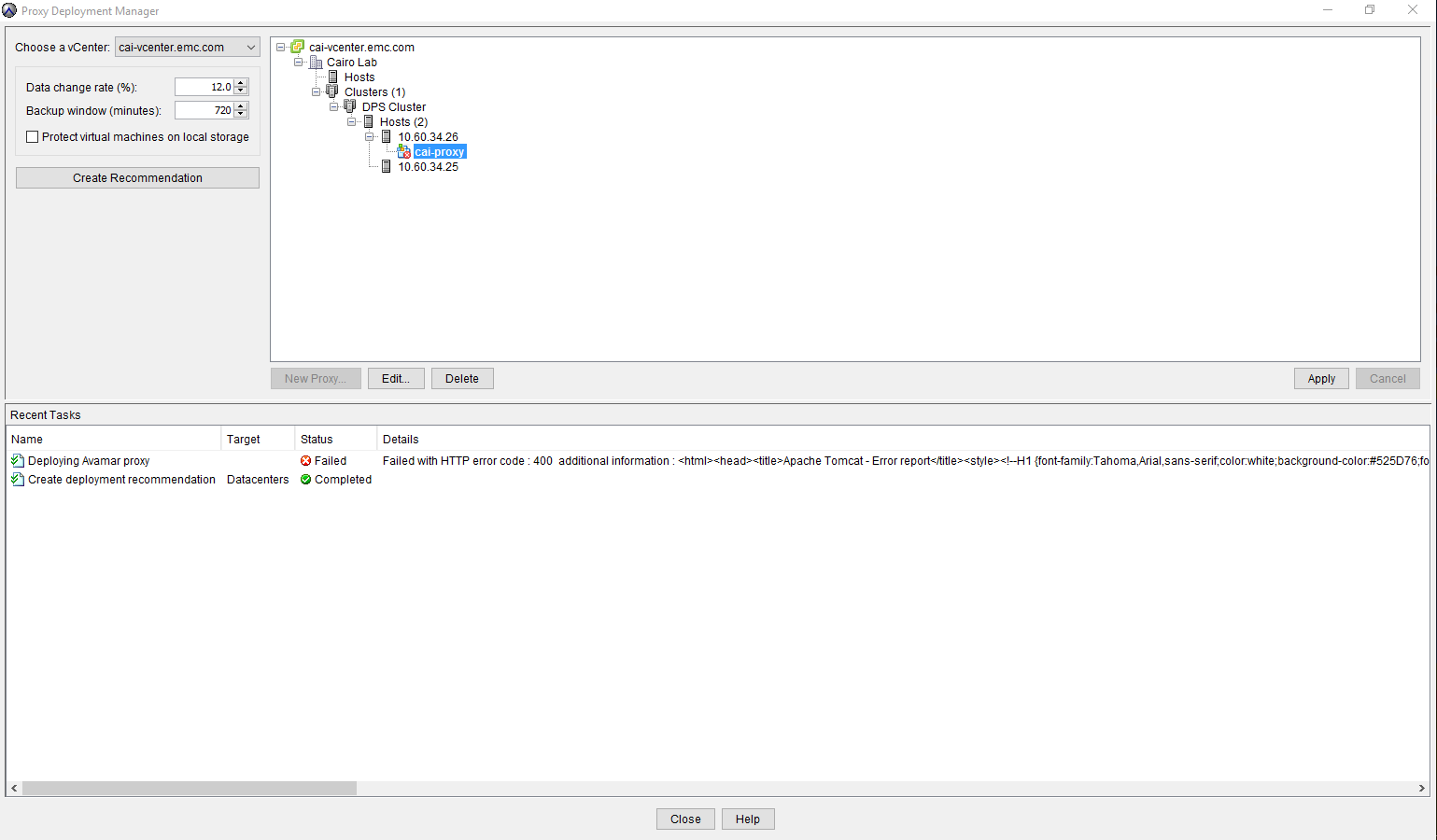

Proxy Deployment Manager non riesce a eseguire il proxy con il messaggio di errore "Failed with HTTP error code : 400", "La richiesta inviata dal client non è sintattica corretta"

kA2f1000000G3VjCAK_3_0

Dal file di registro MCS di Avamar /usr/local/avamar/var/mc/server_log/mcserver.log.0, vengono visualizzati gli avvisi riportati di seguito.

10/10-10:23:26.00489 com.avamar.mc.pdm.ProxyDeploymentManagerService.logFailure
WARNING: uri=https://localhost:8543/deploymanager/recommend/7e259e93-2f04-4e73-90fb-a65ea889784c, header=X-CustomTicket=71b
e6487-c250-40a7-a2c1-5ee99753f2bd, body={"vcenter":"*******","user":"******","datacenters":[{
.
.
.
.
.
.
10/10-10:23:26.00489 com.avamar.mc.util.MCException.logException
WARNING: com.avamar.asn.service.ServiceException: Failed with HTTP error code : 400
  additional information : <html><head><title>Apache Tomcat - Error report</title><style><!--H1 {font-family:Tahoma,Arial,s
ans-serif;color:white;background-color:#525D76;font-size:22px;} H2 {font-family:Tahoma,Arial,sans-serif;color:white;backgro
und-color:#525D76;font-size:16px;} H3 {font-family:Tahoma,Arial,sans-serif;color:white;background-color:#525D76;font-size:1
4px;} BODY {font-family:Tahoma,Arial,sans-serif;color:black;background-color:white;} B {font-family:Tahoma,Arial,sans-serif
;color:white;background-color:#525D76;} P {font-family:Tahoma,Arial,sans-serif;background:white;color:black;font-size:12px;
}A {color : black;}A.name {color : black;}HR {color : #525D76;}--></style> </head><body><h1>HTTP Status 400 - </h1><HR size
="1" noshade="noshade"><p><b>type</b> Status report</p><p><b>message</b> <u></u></p><p><b>description</b> <u>The request sent by the client was syntactically incorrect.</u></p><HR size="1" noshade="noshade"><h3>Apache Tomcat</h3></body></html>
  at com.avamar.mc.pdm.ProxyDeploymentManagerService.updateRecommendation(ProxyDeploymentManagerService.java:185)
  at com.avamar.mc.pdm.ProxyDeploymentManagerService.deployProxy(ProxyDeploymentManagerService.java:206)
  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
  at java.lang.reflect.Method.invoke(Unknown Source)
  at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:318)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:183)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:150)
  at org.springframework.security.access.intercept.aopalliance.MethodSecurityInterceptor.invoke(MethodSecurityInterceptor.j
ava:61)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:172)
  at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:202)
  at com.sun.proxy.$Proxy22.deployProxy(Unknown Source)
  at com.avamar.mc.pdm.ProxyDeploymentManagerServiceContext.deployProxy(ProxyDeploymentManagerServiceContext.java:45)
  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
  at java.lang.reflect.Method.invoke(Unknown Source)
  at sun.rmi.server.UnicastServerRef.dispatch(Unknown Source)
  at sun.rmi.transport.Transport$1.run(Unknown Source)
  at sun.rmi.transport.Transport$1.run(Unknown Source)
  at java.security.AccessController.doPrivileged(Native Method)
  at sun.rmi.transport.Transport.serviceCall(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport.handleMessages(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run0(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.lambda$run$0(Unknown Source)
  at java.security.AccessController.doPrivileged(Native Method)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run(Unknown Source)
  at java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source)
  at java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
  at java.lang.Thread.run(Unknown Source)
10/10-10:23:28.00157 com.avamar.mc.cr.bcConnection.readClientMessage

Cause

Il risultato della raccomandazione di creazione del PDM in cui viene recuperata la gerarchia del vCenter Server (data center, cluster, host, datastore e reti). Questo viene archiviato in un output in formato JSON salvato in un file con un nome che può essere trovato nel registro MCS menzionato in precedenza (mcserver.log.*). Questo file JSON può trovarsi in /usr/local/avamar/var/vcs/dm/recommendations/.

10/10-10:23:26.00489 com.avamar.mc.pdm.ProxyDeploymentManagerService.logFailure
WARNING: uri=https://localhost:8543/deploymanager/recommend/7e259e93-2f04-4e73-90fb-a65ea889784c, header=X-CustomTicket=71b
e6487-c250-40a7-a2c1-5ee99753f2bd, body={"vcenter":"*******","user":"******","datacenters":[{

Uno dei componenti virtualizzati sul vCenter Server (in questo caso una rete) contiene un carattere UTF-8 non valido che causa l'errore di deployment del proxy.

/usr/local/avamar/var/vcs/dm/recommendations/7e259e93-2f04-4e73-90fb-a65ea889784c.json

{"name":"Publica o","mor":{"type":"Network","val":"network-73"}

Resolution

Il problema è stato causato da un nome di rete con un carattere UTF-8 non valido nella richiesta: assegnare all'account Avamar su vCenter un ruolo senza accesso a tale livello di rete o rinominarlo rimuovendo UTF-8 non valido.
