Avamar: Proxy Deployment Manager kan proxy niet implementeren

Summary: Proxy Deployment Manager kan proxy niet implementeren met foutmelding "Failed with HTTP error code : 400", "Het verzoek van de klant was syntactisch onjuist"

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

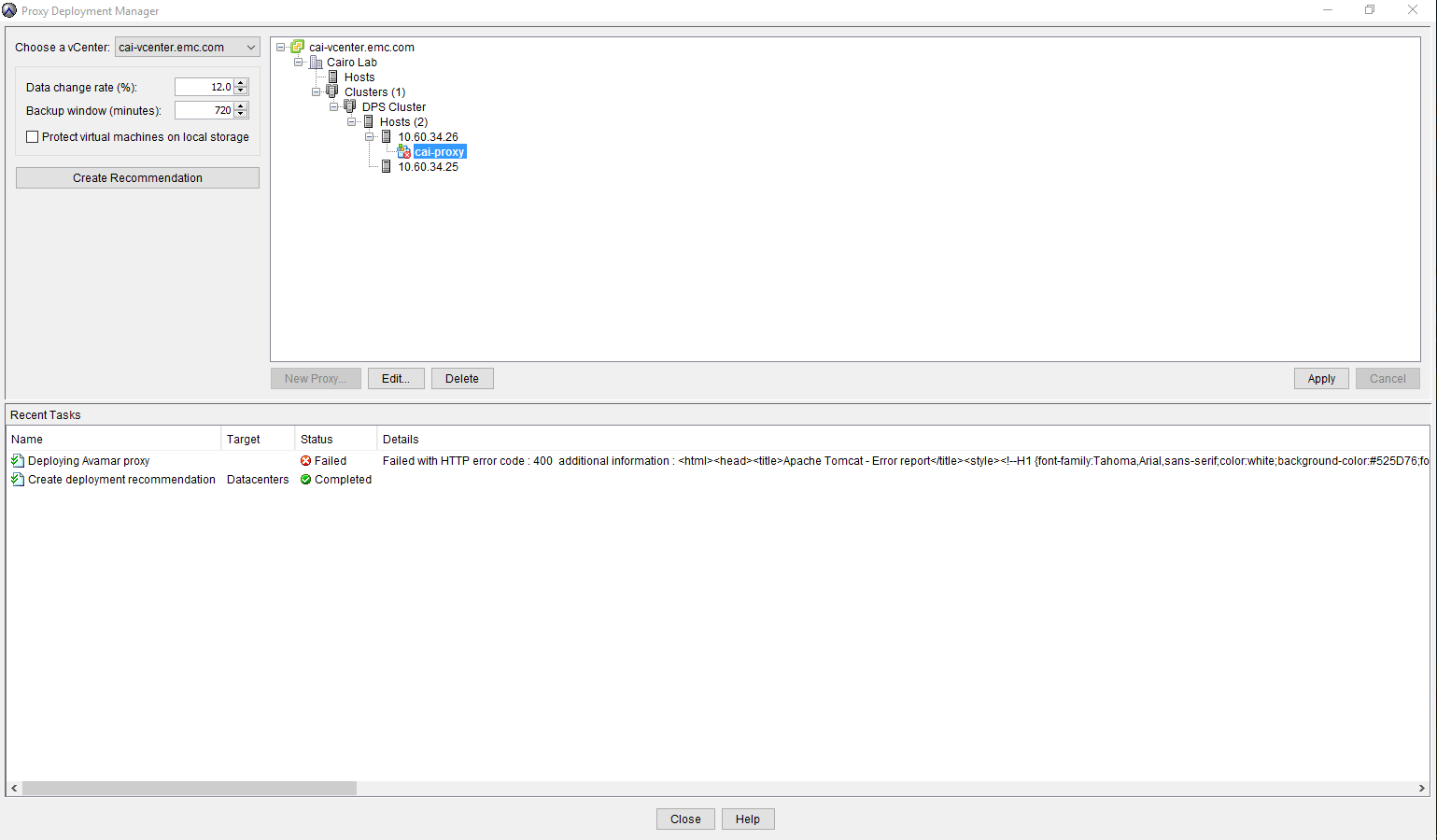

Proxy Deployment Manager kan proxy niet implementeren met foutmelding "Failed with HTTP error code : 400", "Het verzoek van de klant was syntactisch onjuist"

kA2f1000000G3VjCAK_3_0

In het Avamar MCS-logboekbestand /usr/local/avamar/var/mc/server_log/mcserver.log.0 zien we onderstaande waarschuwingen.

10/10-10:23:26.00489 com.avamar.mc.pdm.ProxyDeploymentManagerService.logFailure
WARNING: uri=https://localhost:8543/deploymanager/recommend/7e259e93-2f04-4e73-90fb-a65ea889784c, header=X-CustomTicket=71b
e6487-c250-40a7-a2c1-5ee99753f2bd, body={"vcenter":"*******","user":"******","datacenters":[{
.
.
.
.
.
.
10/10-10:23:26.00489 com.avamar.mc.util.MCException.logException
WARNING: com.avamar.asn.service.ServiceException: Failed with HTTP error code : 400
  additional information : <html><head><title>Apache Tomcat - Error report</title><style><!--H1 {font-family:Tahoma,Arial,s
ans-serif;color:white;background-color:#525D76;font-size:22px;} H2 {font-family:Tahoma,Arial,sans-serif;color:white;backgro
und-color:#525D76;font-size:16px;} H3 {font-family:Tahoma,Arial,sans-serif;color:white;background-color:#525D76;font-size:1
4px;} BODY {font-family:Tahoma,Arial,sans-serif;color:black;background-color:white;} B {font-family:Tahoma,Arial,sans-serif
;color:white;background-color:#525D76;} P {font-family:Tahoma,Arial,sans-serif;background:white;color:black;font-size:12px;
}A {color : black;}A.name {color : black;}HR {color : #525D76;}--></style> </head><body><h1>HTTP Status 400 - </h1><HR size
="1" noshade="noshade"><p><b>type</b> Status report</p><p><b>message</b> <u></u></p><p><b>description</b> <u>The request sent by the client was syntactically incorrect.</u></p><HR size="1" noshade="noshade"><h3>Apache Tomcat</h3></body></html>
  at com.avamar.mc.pdm.ProxyDeploymentManagerService.updateRecommendation(ProxyDeploymentManagerService.java:185)
  at com.avamar.mc.pdm.ProxyDeploymentManagerService.deployProxy(ProxyDeploymentManagerService.java:206)
  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
  at java.lang.reflect.Method.invoke(Unknown Source)
  at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:318)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:183)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:150)
  at org.springframework.security.access.intercept.aopalliance.MethodSecurityInterceptor.invoke(MethodSecurityInterceptor.j
ava:61)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:172)
  at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:202)
  at com.sun.proxy.$Proxy22.deployProxy(Unknown Source)
  at com.avamar.mc.pdm.ProxyDeploymentManagerServiceContext.deployProxy(ProxyDeploymentManagerServiceContext.java:45)
  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
  at java.lang.reflect.Method.invoke(Unknown Source)
  at sun.rmi.server.UnicastServerRef.dispatch(Unknown Source)
  at sun.rmi.transport.Transport$1.run(Unknown Source)
  at sun.rmi.transport.Transport$1.run(Unknown Source)
  at java.security.AccessController.doPrivileged(Native Method)
  at sun.rmi.transport.Transport.serviceCall(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport.handleMessages(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run0(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.lambda$run$0(Unknown Source)
  at java.security.AccessController.doPrivileged(Native Method)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run(Unknown Source)
  at java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source)
  at java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
  at java.lang.Thread.run(Unknown Source)
10/10-10:23:28.00157 com.avamar.mc.cr.bcConnection.readClientMessage

Cause

Het resultaat van de PDM-aanbeveling waarbij de vCenter-serverhiërarchie wordt opgehaald (datacenters, clusters, hosts, datastores en netwerken). Dit wordt opgeslagen in een JSON-geformatteerde uitvoer die is opgeslagen in een bestand met een naam die te vinden is in het eerder genoemde MCS-logboek (mcserver.log.*). Dit JSON-bestand bevindt zich onder /usr/local/avamar/var/vcs/dm/recommendations/.

10/10-10:23:26.00489 com.avamar.mc.pdm.ProxyDeploymentManagerService.logFailure
WARNING: uri=https://localhost:8543/deploymanager/recommend/7e259e93-2f04-4e73-90fb-a65ea889784c, header=X-CustomTicket=71b
e6487-c250-40a7-a2c1-5ee99753f2bd, body={"vcenter":"*******","user":"******","datacenters":[{

Een van de gevirtualiseerde componenten op de vCenter-server (in dat geval een netwerk) had een ongeldig UTF-8-teken waardoor de proxy-implementatie mislukte.

/usr/local/avamar/var/vcs/dm/recommendations/7e259e93-2f04-4e73-90fb-a65ea889784c.json

{"name":"Publica o","mor":{"type":"Netwerk","val":"netwerk-73"}

Resolution

Het probleem werd veroorzaakt door een netwerknaam met een ongeldig UTF-8-teken in de aanvraag: ofwel het Avamar-account op vCenter een toegangsrol geven op dat netwerkniveau, ofwel de naam wijzigen om de ongeldige niet-UTF-8 te verwijderen.
