PowerStore: La importación falla cuando falta una dirección IP en el certificado SSL cuando se agrega Unity como un sistema remoto para archivos

Summary: PowerStore no puede agregar un sistema remoto si la dirección IP de administración de Unity no está presente en su certificado autofirmado.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

Error cuando se intenta agregar Unity como sistema remoto:
Failed to run REST request to the source Unity system because the specified IP address is not found in the SSL certificate of Unity. (0xE08010110DC4)

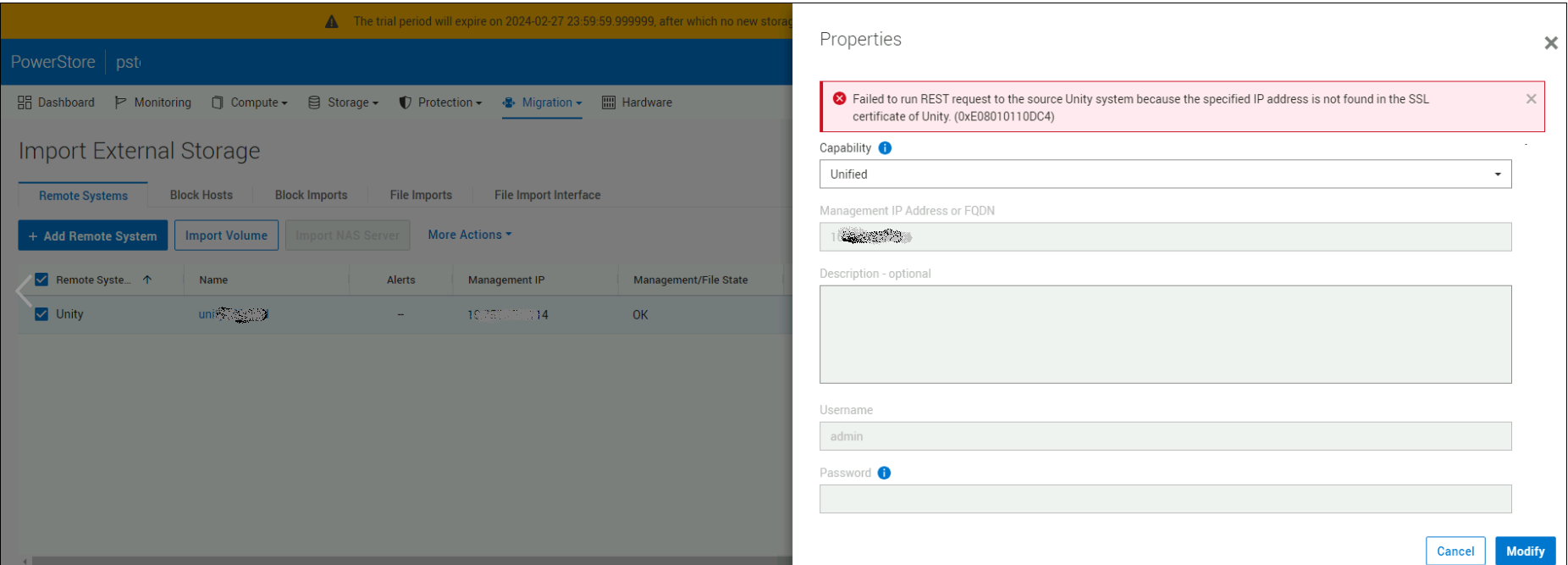

Captura de pantalla de PowerStore Manager:
Captura de pantalla de falla

Cause

Al certificado de Unity le falta la información "subjectAltName" para los valores de dirección IP de administración de Unity y nombre de dominio calificado.

Resolution

Genere un nuevo certificado en Unity que especifique la información de "subjectAltName".

Ejemplo:
1) Using the openssl utility from a Linux host, create a Certificate Signing Request file with the following fields:
C=Country, ST=State, L=Location, O=Organization, CN=CommonName

service@Unity_LAB spb:~/user> openssl req -new -sha256 -key server.key -passin pass:emcemc -out request.csr -days 1825 -subj '/C=US/ST=MA/L=Sarasota/O=MyCust/CN=5.6.7.11/'

2) Self-sign the Certificate Signing Request file with the private key. If there is an "unable to write 'random state'" error, elevate to root user and try again.

service@Unity_LAB spb:~/user> openssl x509 -in request.csr -sha256 -out unitycer.crt -req -signkey server.key -days 1825 -extfile <(printf "subjectAltName=DNS:<MyUnity.LAB.DELL.COM>,DNS:<MyUnity>,IP:<IPV4  management IP>, IP:<IPV6 management IP>")
