Dell VxRail: Intel Flex and NVIDIA GPU Not Displayed in Cluster Physical View

Summary: Intel Flex and NVIDIA graphics processing unit (GPU) not displayed in Cluster Physical View

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

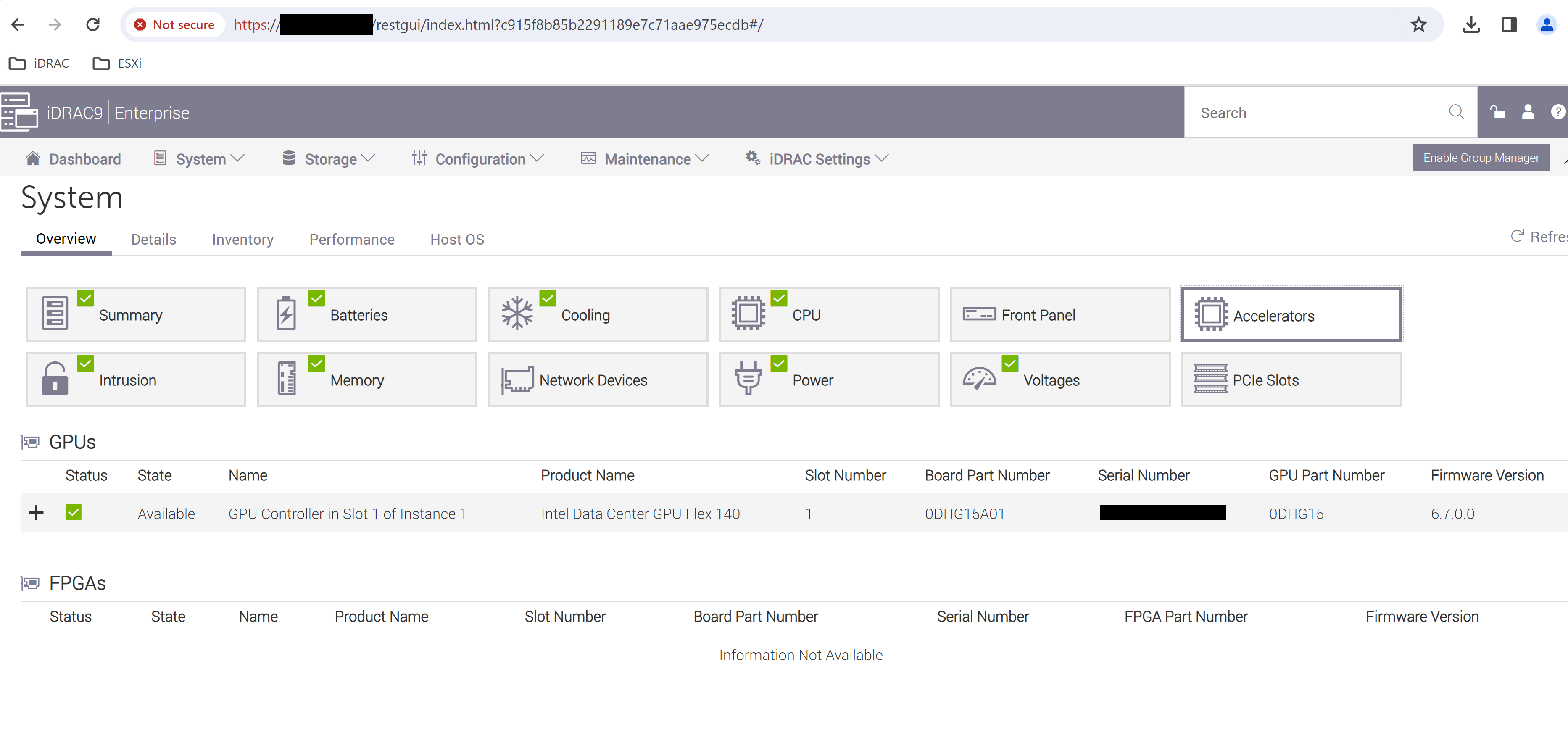

 GPU displays properly on iDRAC:
GPU display on iDRAC

GPU does not display properly on VxRail plug-in physical view:
GPU display incorrect on VxRail plug-in physical view

Cause

There is a known software issue affecting the following VxRail releases:
  • 7.0.480
  • 7.0.481
  • 7.0.482
  • 8.0.100
  • 8.0.101
  • 8.0.110

Resolution

There is no VxRail 7.0.x release containing the fix for this issue available yet.
VxRail 8.0.120 and later contain the fix for this issue.

Affected Products

VxRail Appliance Series
Article Properties
Article Number: 000222533
Article Type: Solution
Last Modified: 06 Mar 2024
Version:  2
